FPS-1 Three-Electrode PTFE Electrochemical Cell | Unsealed 3-Port Design
Price range: $62.00 through $250.00
FPS-1 PTFE electrochemical cell designed for three-electrode systems, electrocatalysis, corrosion testing, and laboratory electrochemistry applications. Available in 10ml to 500ml capacities with unsealed 3-port configuration and excellent chemical resistance.
| Size |
100ml Full PTFE Electrochemical Cell – Unsealed ,10ml Full PTFE Electrochemical Cell – Unsealed ,150ml Full PTFE Electrochemical Cell – Unsealed ,200ml Full PTFE Electrochemical Cell – Unsealed ,20ml Full PTFE Electrochemical Cell – Unsealed ,300ml Full PTFE Electrochemical Cell – Unsealed ,30ml Full PTFE Electrochemical Cell – Unsealed ,500ml Full PTFE Electrochemical Cell – Unsealed ,50ml Full PTFE Electrochemical Cell – Unsealed |
|---|

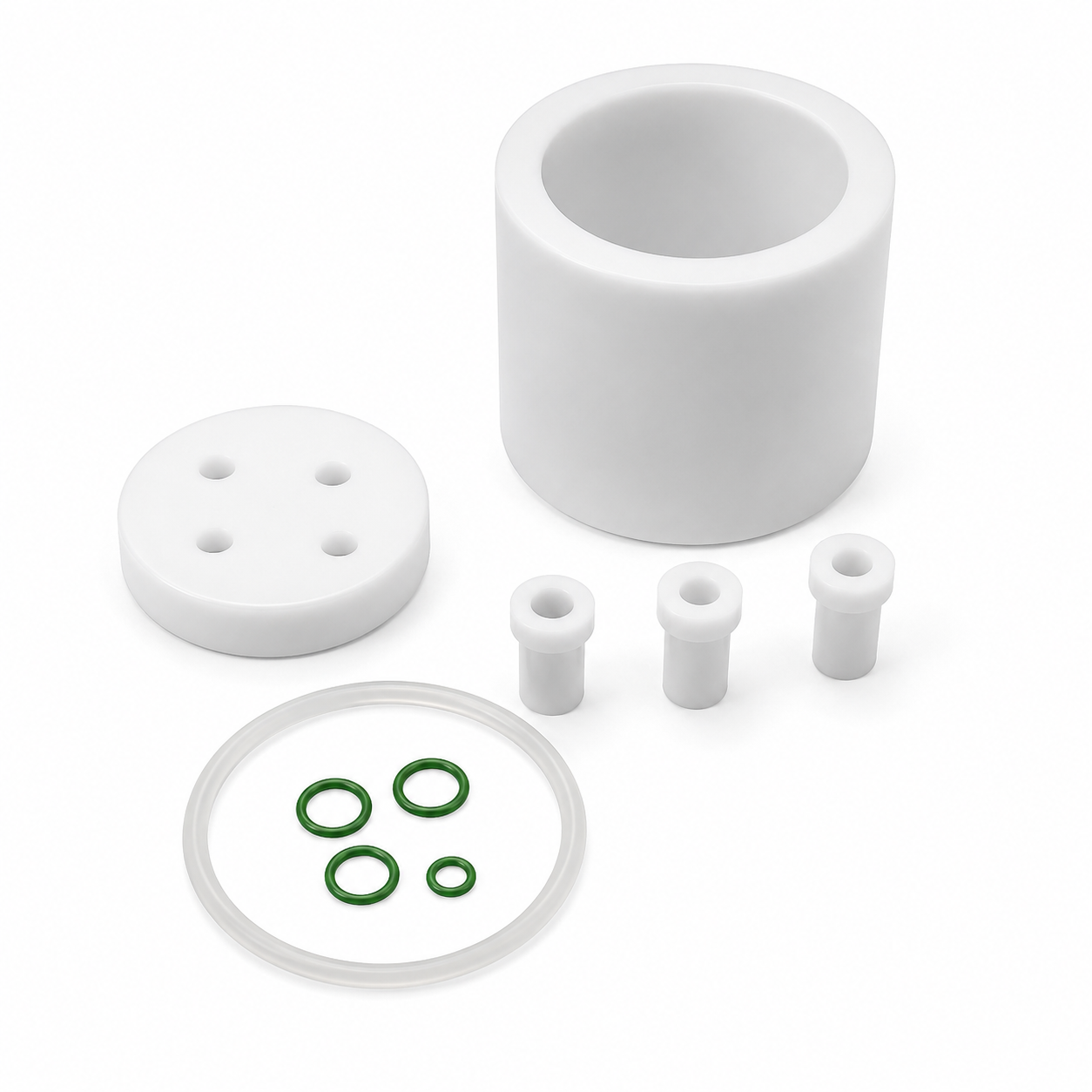

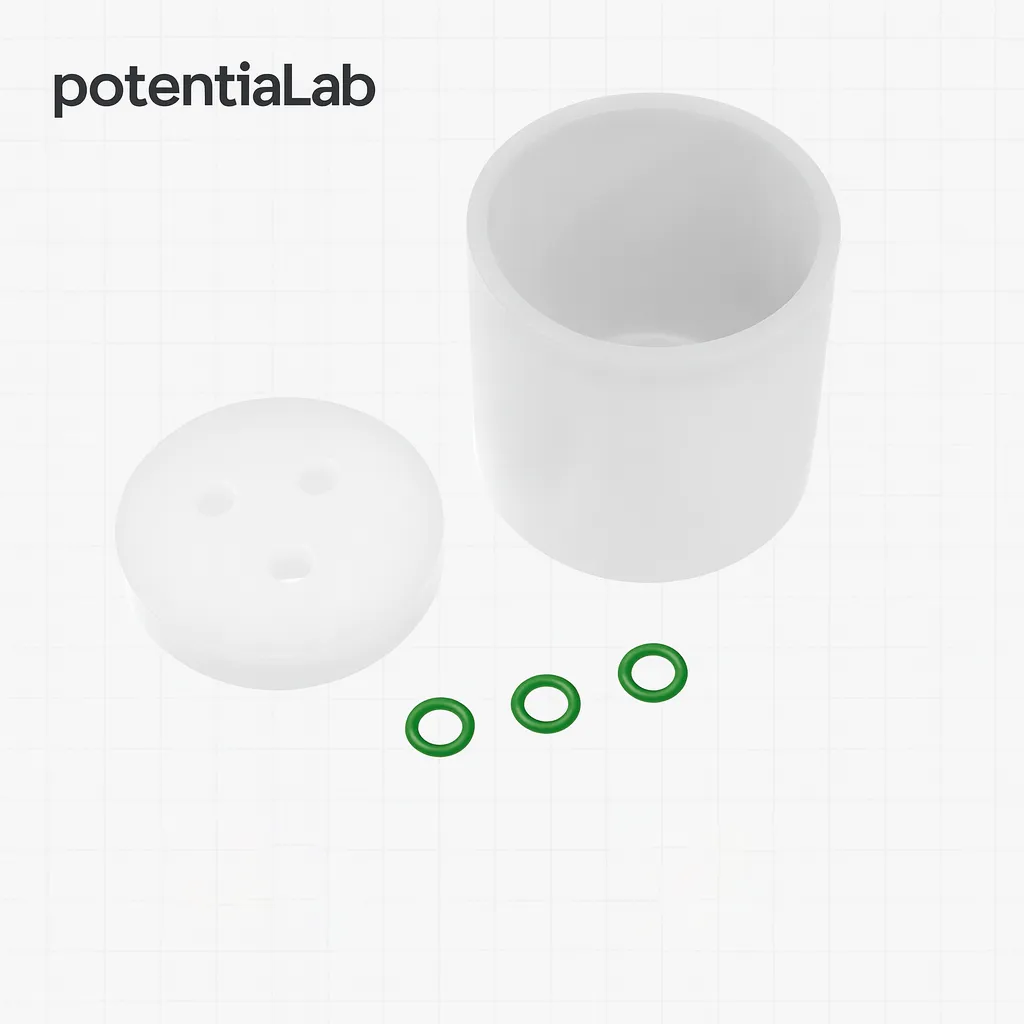

All-PTFE Three-Electrode Electrolytic Cell
This all-PTFE electrolytic cell features high chemical resistance, airtight sealing capability, and full compatibility with standard three-electrode systems. It is available in both sealed and unsealed configurations and supports flexible electrode and gas port arrangements.
Threaded Sealing Components
- PTFE lid
- 6.2mm Electrode Ports
- 6.2mm PTFE Nuts
- FKM Sealing Rings for Ports
- FKM Sealing Ring for Main Bottle Body
Laboratory System
Compatible with both sealed and unsealed electrolytic cells in standard three-electrode configurations, ideal for laboratory use or custom electrochemical research setups.
Polytetrafluoroethylene (PTFE)
- High Temperature Resistance: Long-term use at 200–260°C
- Low Temperature Resistance: Remains flexible even at -100°C
- Corrosion Resistance: Resists water and most solvents
- Weather Resistance: Excellent aging resistance
- Low Friction: Coefficient of friction ≈ 0.04
- Non-stick: Extremely low surface energy
- Non-toxic: Physiologically safe and inert
- Excellent Electrical Performance: Ideal Class C insulation material
Instructions for Use
Sealed Electrolytic Cell:
- The sealed cell consists of sealing ring, PTFE cap, and cell body.
- Insert the electrodes and gas tubes into the cap ports.
- Secure all ports with threaded PTFE nuts and tighten sealing rings.
- Attach the large sealing ring to the cell body and tighten the cap for airtight sealing.
- Assembly is complete — ready for three-electrode operation.
Unsealed Electrolytic Cell:
- Uses a fixed sealing base with PTFE cap and body.
- Insert the electrodes and secure the cap directly.
- Assembly is complete — ready for three-electrode use.
Application & Volume Range
Available in volumes from 10ml to 500ml. Each cell includes precision-machined ports suitable for electrode insertion and gas tubing. Ideal for research laboratories, electrochemical analysis, and custom cell configurations.
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
