SWO-1 Glass Sealed Electrolytic Cell with Quartz Optical Window
Price range: $271.00 through $792.00
SWO-1 side-window optical electrochemical cell designed for spectroelectrochemical analysis, photoelectrochemistry, and laboratory electrochemical experiments.

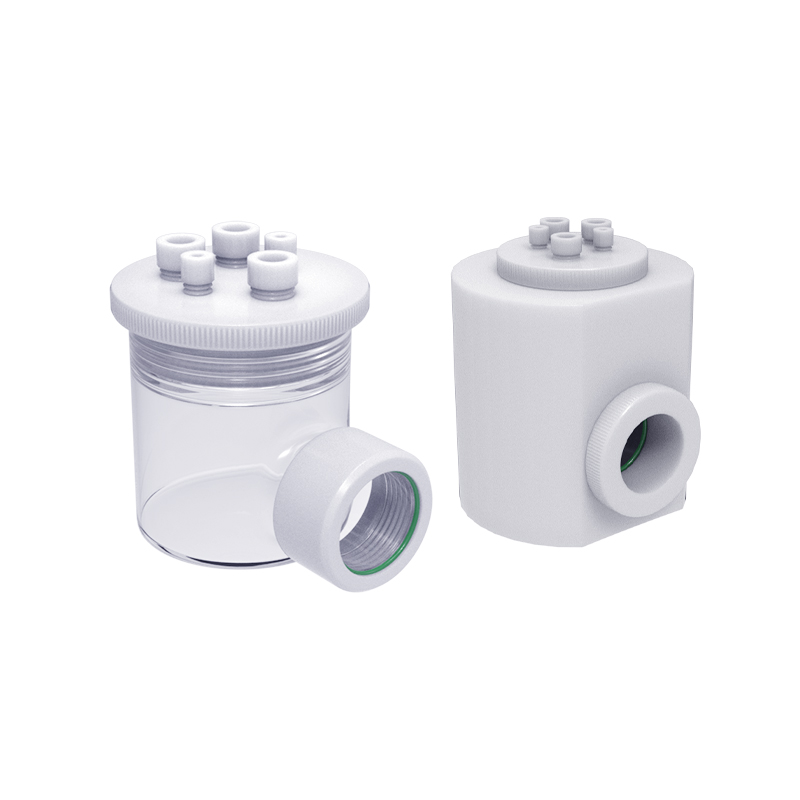

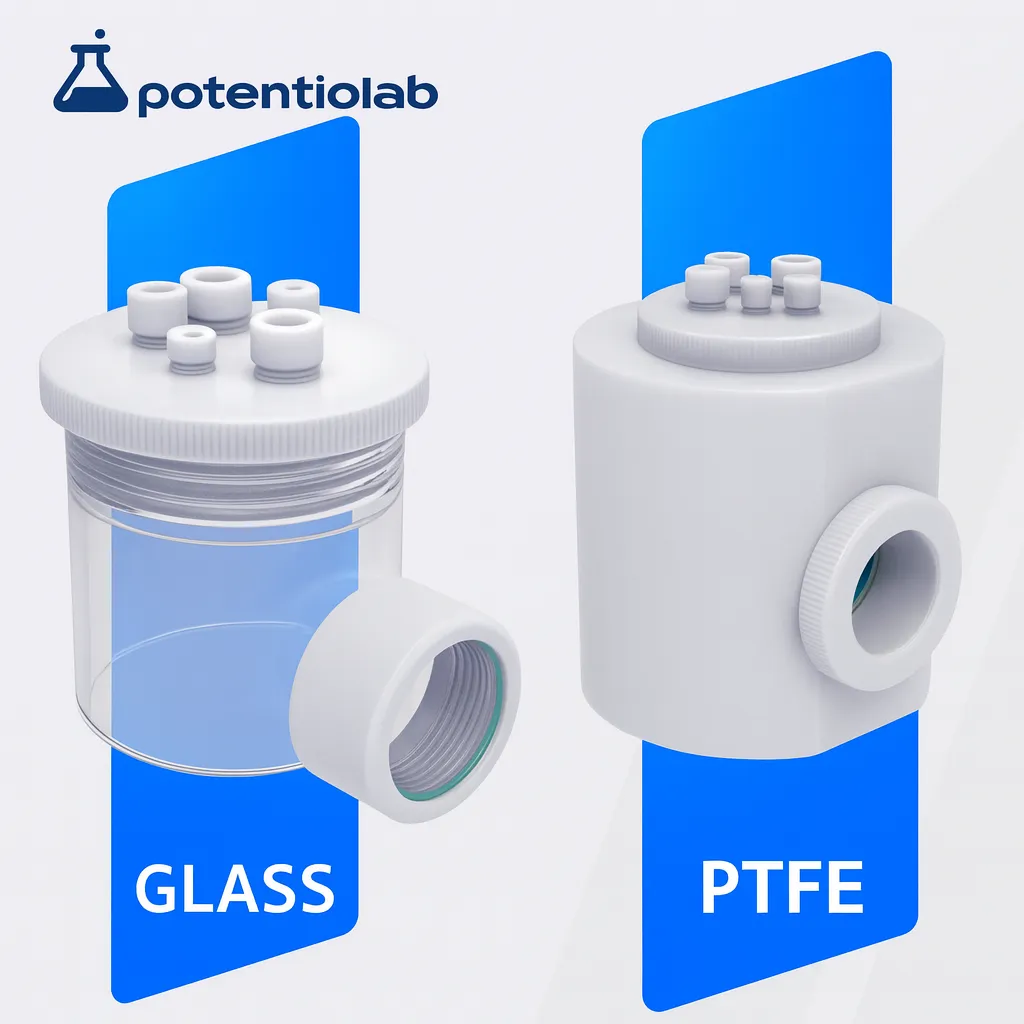

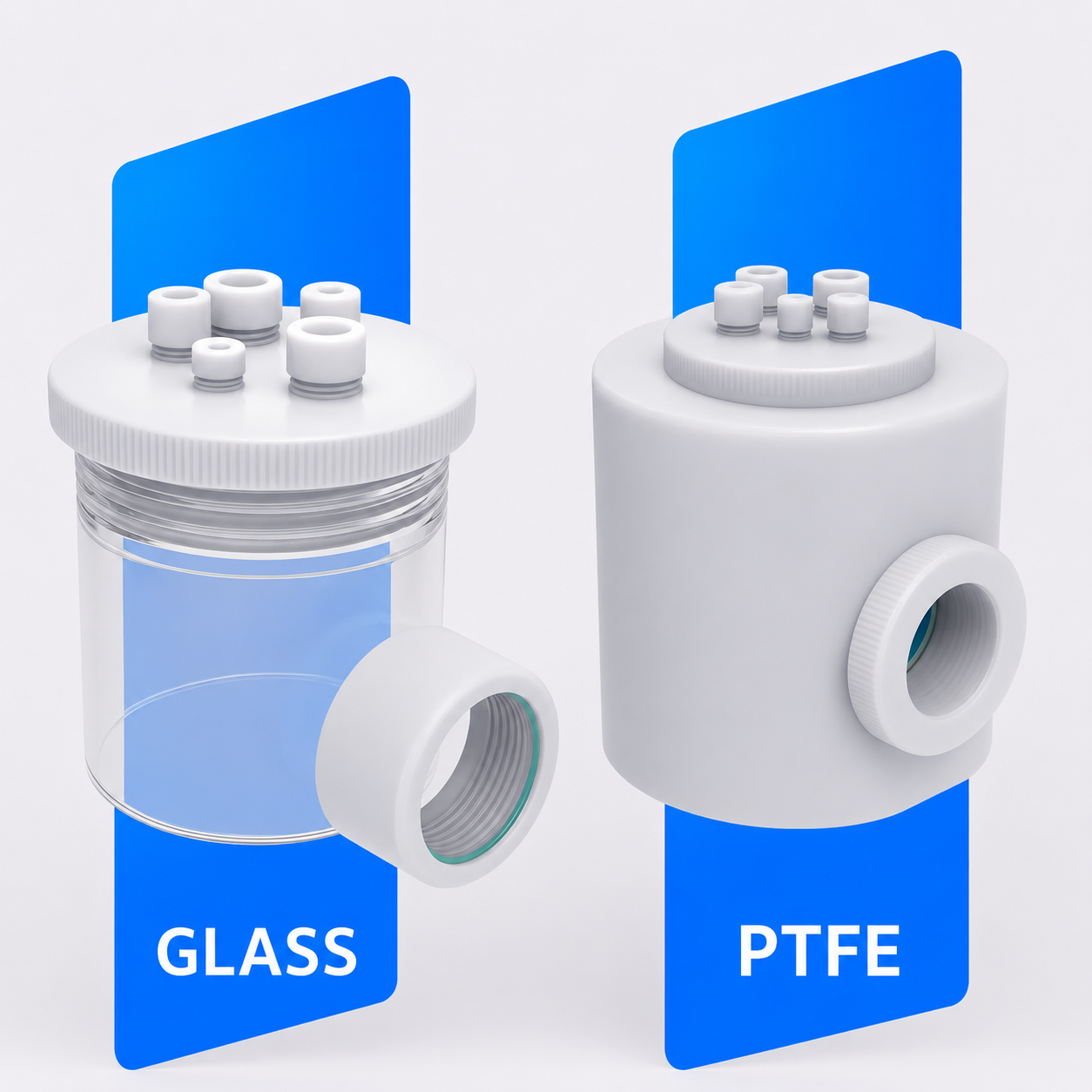

Available in sealed and unsealed configurations with glass or all-PTFE construction from 50ml to 500ml capacities.
| Size |
100ml sealed glass electrochemical cell ,100ml unsealed glass electrochemical cell ,150ml sealed glass electrochemical cell ,150ml unsealed glass electrochemical cell ,200ml sealed glass electrochemical cell ,200ml unsealed glass electrochemical cell ,250ml sealed glass electrochemical cell ,250ml unsealed glass electrochemical cell ,300ml sealed glass electrochemical cell ,300ml unsealed glass electrochemical cell ,500ml sealed glass electrochemical cell ,500ml unsealed glass electrochemical cell ,50ml sealed glass electrochemical cell ,50ml unsealed glass electrochemical cell |
|---|
Side-Window Quartz Optical Electrochemical Cell
The Potentiolab Side-Window Quartz Optical Electrochemical Cell is designed for in situ optical monitoring, photo-electrochemical studies, and corrosive electrolyte systems. The standard configuration combines a PTFE cap with a borosilicate glass cell body, providing reliable sealing, optical accessibility, and compatibility with standard three-electrode setups. Suitable for both sealed and non-sealed experiments.
PTFE Material Advantages
- High temperature resistance: continuous use at 200–260°C
- Low temperature flexibility down to -100°C
- Chemical resistance: resists acids, bases, and organic solvents
- Excellent weatherability and long-term aging resistance
- Low friction: Coefficient ≈ 0.04
- Non-stick surface with minimal adsorption
- Non-toxic and physiologically inert
- Excellent electrical insulation – ideal Class C material
Product Versions
- PTFE Non-Sealed Optical Cell – Open design for routine optical electrochemistry, UV-Vis monitoring, and method development.
- PTFE Sealed Optical Cell – Gas-tight design with dedicated gas ports for CO₂RR, air-sensitive reactions, and operando optical studies.
Available Volumes
Both versions are available in: 50 mL, 100 mL, 150 mL, 200 mL, 300 mL, 500 mL. Custom volumes available upon request.
Assembly Instructions
Quartz-Window Electrochemical Cell (Glass Body + PTFE Cap):

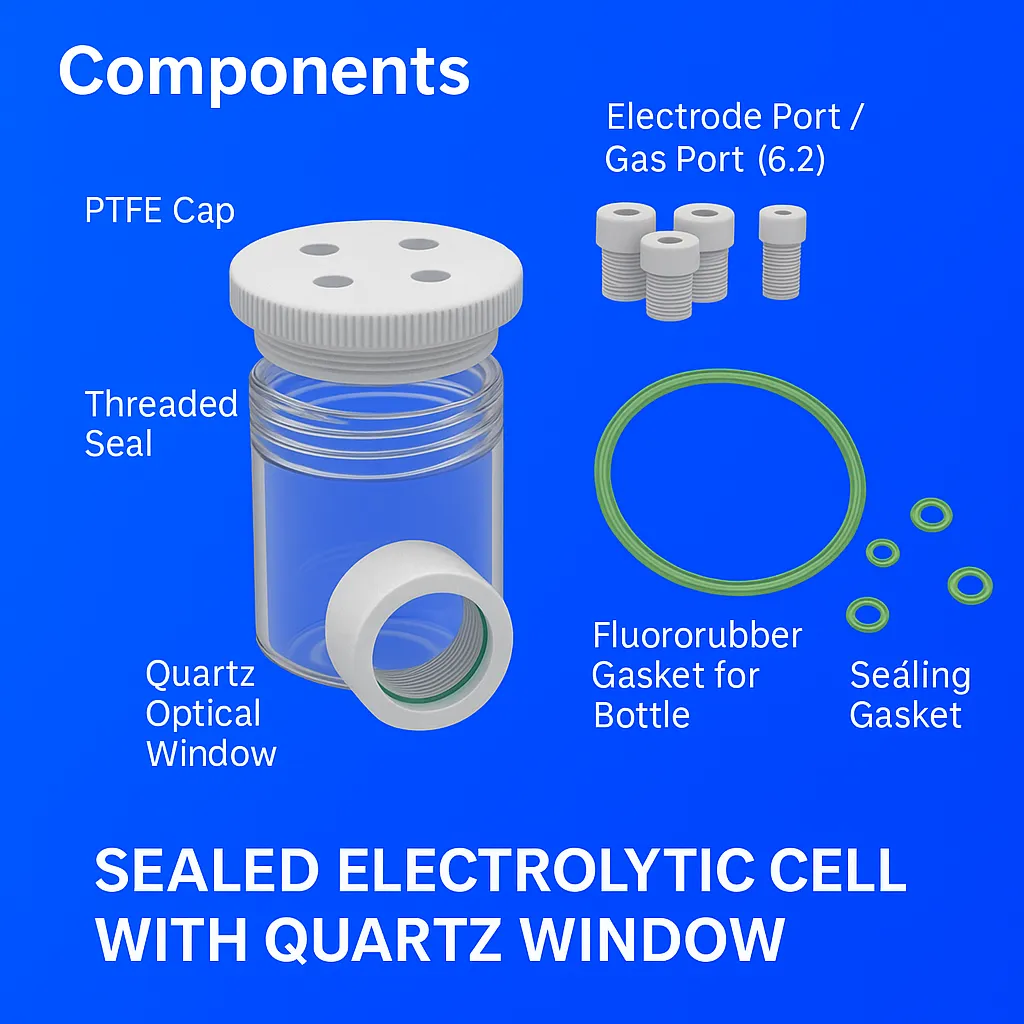

- Components: Quartz window, sealing O-rings, sealing plugs, PTFE cap, borosilicate glass body
- Insert electrodes and gas tubes through the PTFE cap ports
- Use sealing nuts to compress the O-rings on each port and tighten to ensure sealing
- Install the large sealing ring on the body and secure it to the cap groove
- Cell is ready for standard three-electrode configuration
Typical Applications
- Photo-electrochemical (PEC) experiments
- UV-Vis coupled optical electrochemistry
- CO₂ reduction studies (sealed version)
- Corrosive electrolyte systems
- Catalyst screening under illumination
- Mechanistic electrochemical studies
Customization Options
- Custom window size or position
- Quartz thickness upgrade
- Additional gas or sampling ports
- PEEK / PTFE electrode holders
- High-temperature PTFE variants
- Integrated light guide interface
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
Related products
LVS-1 Large Volume Sealed Electrochemical Cell
MCE-1 Multi-Functional Electrochemical Cell
MCE-1 Multi-Functional Electrochemical Cell (Double)

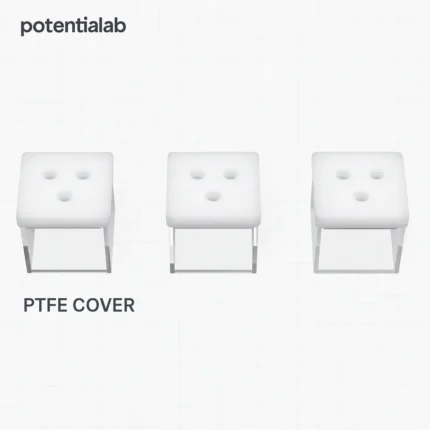

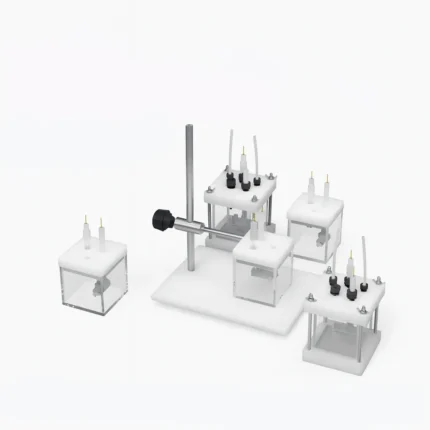

QSE1 Quartz Electrolytic Cell Series | 30ml–300ml Square Fused Cells
