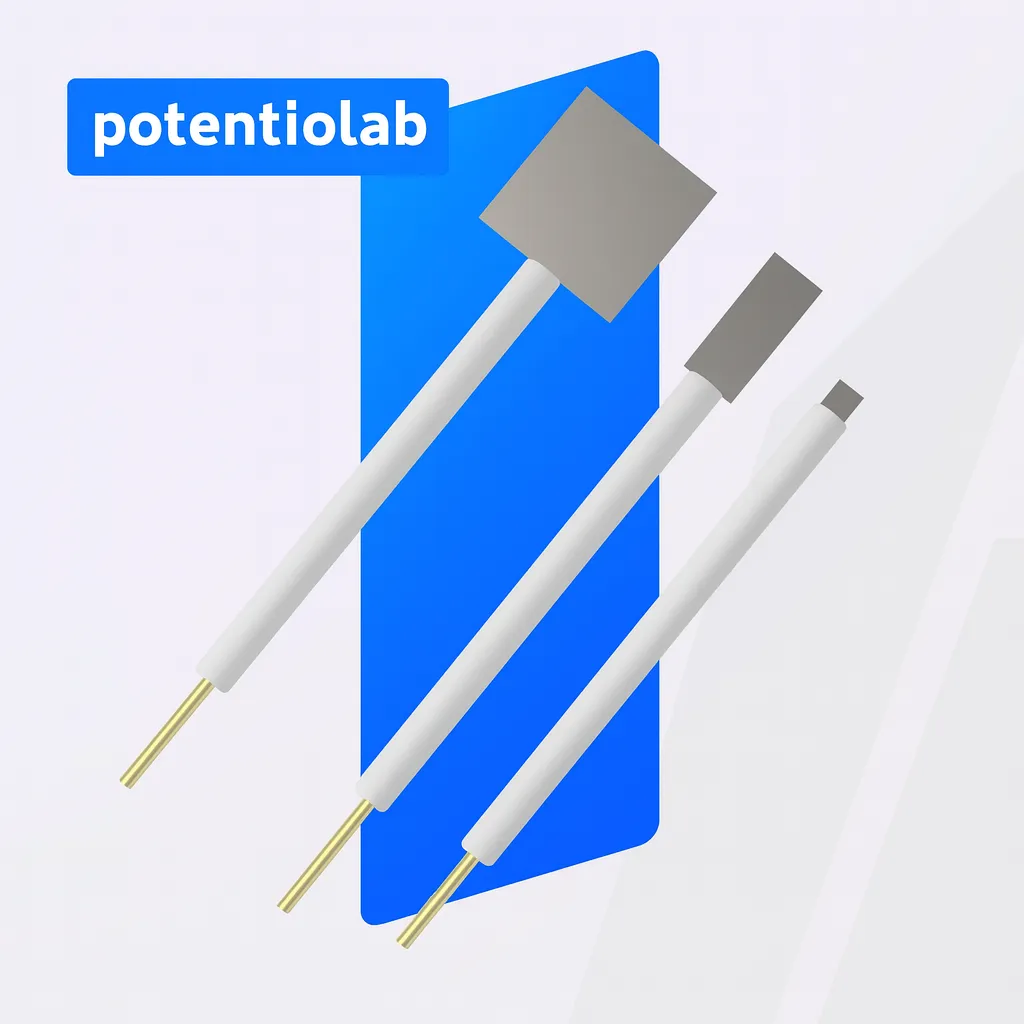

PT1 99.99% Pure Platinum Sheet Electrode – Rectangular & Circular, Counter Electrode, Platinum Mesh, Custom Sizes for Electrolysis & Lab Research
Price range: $4.00 through $750.00
| Size |
10 × 10 × 0.1 mm Platinum Sheet Electrode ,10 × 10 × 0.2 mm Platinum Sheet Electrode ,10 × 10 × 0.3 mm Platinum Sheet Electrode ,10 × 15 × 0.1 mm Platinum Sheet Electrode ,10 × 15 × 0.2 mm Platinum Sheet Electrode ,10 × 20 × 0.1 mm Platinum Sheet Electrode ,10 × 20 × 0.2 mm Platinum Sheet Electrode ,10 × 30 × 0.1 mm Platinum Sheet Electrode ,10 × 30 × 0.2 mm Platinum Sheet Electrode ,15 × 15 × 0.1 mm Platinum Sheet Electrode ,15 × 15 × 0.2 mm Platinum Sheet Electrode ,15 × 20 × 0.1 mm Platinum Sheet Electrode ,20 × 20 × 0.1 mm Platinum Sheet Electrode ,20 × 20 × 0.2 mm Platinum Sheet Electrode ,20 × 20 × 0.3 mm Platinum Sheet Electrode ,20 × 20 × 0.5 mm Platinum Sheet Electrode ,20 × 30 × 0.1 mm Platinum Sheet Electrode ,20 × 30 × 0.2 mm Platinum Sheet Electrode ,25 × 25 × 0.1 mm Platinum Sheet Electrode ,25 × 25 × 0.2 mm Platinum Sheet Electrode ,30 × 30 × 0.1 mm Platinum Sheet Electrode ,5 × 10 × 0.1 mm Platinum Sheet Electrode ,5 × 10 × 0.2 mm Platinum Sheet Electrode ,5 × 5 × 0.1 mm Platinum Sheet Electrode ,5 × 5 × 0.2 mm Platinum Sheet Electrode ,Custom round platinum sheet electrodes available – contact customer service ,Custom Sizes Available – Contact Customer Service |
|---|
99.99% Platinum Sheet Electrode – PTFE Housing – 5×5 to 30×30 mm
Product Overview
The Platinum Sheet Electrode is fabricated from 99.99% high‑purity platinum and fitted in a durable PTFE (Polytetrafluoroethylene) housing.
It features excellent chemical resistance, superior conductivity, and a long service life—ideal for electrolysis, counter‑electrode applications, and general electrochemical research.
Standard face sizes range from 5 mm × 5 mm to 30 mm × 30 mm. Thickness options include 0.1 mm, 0.2 mm, and 0.3 mm, with recommended operating limits listed below. Custom dimensions and shapes are available upon request.
Key Features
- Electrode material: 99.99% platinum for superior corrosion resistance and stability
- PTFE housing for chemical resistance, insulation, and non‑stick surface
- Standard size range: 5×5 – 30×30 mm (customizable)
- Multiple thickness options with clear operating guidelines
- Long service life; suitable for electrolysis and laboratory research
Electrical Operating Guide
| Thickness | Recommended Operating Range |
|---|---|
| 0.1 mm | ≤ 2 A / ≤ 2 V |
| 0.2 mm | ≤ 3 A / ≤ 3 V |
| 0.3 mm | ≤ 4 A / ≤ 4 V |
PTFE Housing Advantages
- Soft mechanical behavior with ultra‑low surface energy (non‑stick)
- High‑temperature resistance: continuous use at 200–260 °C
- Remains flexible at −100 °C
- Outstanding chemical resistance — withstands aqua regia and organic solvents
- Excellent weatherability and long aging lifespan
- Very low friction coefficient (~0.04)
- Non‑toxic, physiologically inert
- Excellent electrical insulation — ideal Class‑C insulating material
| Parameter | Details |
|---|---|
| Product Name | Platinum Sheet Electrode |
| Electrode Material | 99.99% High‑Purity Platinum |
| Housing Material | PTFE (Polytetrafluoroethylene) |
| Standard Face Size | 5×5 – 30×30 mm (customizable) |
| Thickness Options | 0.1 mm / 0.2 mm / 0.3 mm |
| Recommended Limits | See Electrical Operating Guide above |
| Applications | Electrolysis, counter electrode, electrochemical research |
| Customization | Face size, thickness, shape, and mounting options |
