FPS-2 PTFE Sealed Electrolytic Cell | Five-Port Three-Electrode Design
Price range: $83.00 through $500.00
FPS-2 PTFE sealed electrolytic cell for three-electrode electrochemical systems, electrocatalysis, corrosion testing, and battery research.
Available in 10ml to 500ml capacities with five-port sealed design and excellent chemical resistance for laboratory electrochemistry applications.
| Size |
100ml Sealed All-PTFE Electrolytic Cell ,10ml Sealed All-PTFE Electrolytic Cell ,150ml Sealed All-PTFE Electrolytic Cell ,200ml Sealed All-PTFE Electrolytic Cell ,20ml Sealed All-PTFE Electrolytic Cell ,300ml Sealed All-PTFE Electrolytic Cell ,30ml Sealed All-PTFE Electrolytic Cell ,500ml Sealed All-PTFE Electrolytic Cell ,50ml Sealed All-PTFE Electrolytic Cell |
|---|
PTFE Sealed Electrolytic Cell – Five-Port Three-Electrode System
These sealed all-PTFE (Polytetrafluoroethylene) electrolytic cells are designed for high-performance electrochemical applications. Featuring a fully enclosed PTFE construction, they provide outstanding chemical resistance, thermal stability, and airtight sealing.
Threaded Sealing Components
- PTFE lid
- 6.2mm Electrode Ports × 5
- 3.1mm Gas Ports × 2
- 6.2mm PTFE Nuts
- 3.1mm PTFE Nuts
- FKM Sealing Rings for Ports
- FKM Sealing Ring for Main Bottle Body
Laboratory System
Compatible with both sealed and unsealed electrolytic cells in standard three-electrode configurations, ideal for laboratory use or custom electrochemical research setups.
Polytetrafluoroethylene (PTFE)
- High Temperature Resistance: Long-term use at 200–260°C
- Low Temperature Resistance: Remains flexible even at -100°C
- Corrosion Resistance: Resists water and most solvents
- Weather Resistance: Excellent aging resistance
- Low Friction: Coefficient of friction ≈ 0.04
- Non-stick: Extremely low surface energy
- Non-toxic: Physiologically safe and inert
- Excellent Electrical Performance: Ideal Class C insulation material
Instructions for Use
Sealed Electrolytic Cell:

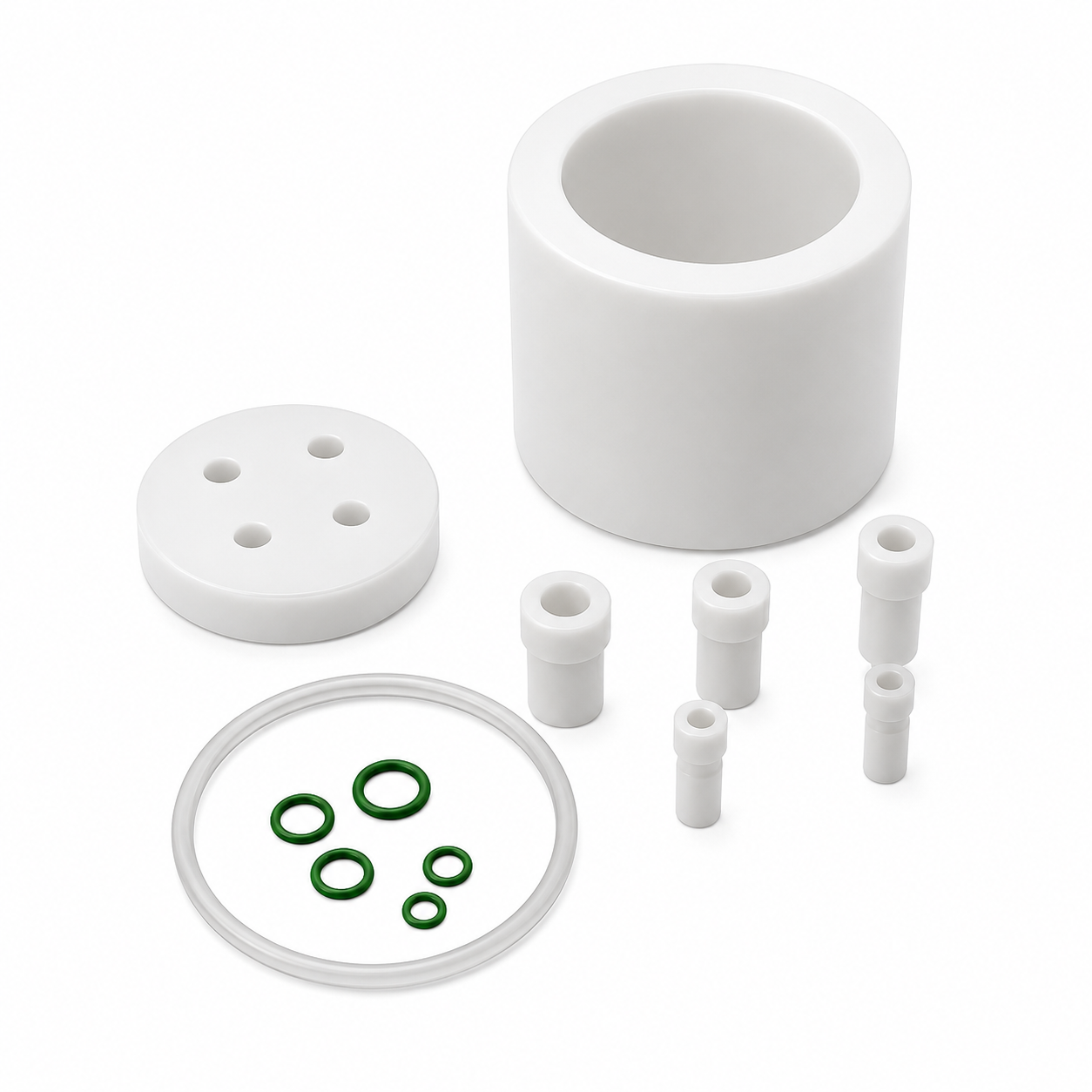

- The sealed cell consists of sealing ring, PTFE cap, and cell body.
- Insert the electrodes and gas tubes into the cap ports.
- Secure all ports with threaded PTFE nuts and tighten sealing rings.
- Attach the large sealing ring to the cell body and tighten the cap for airtight sealing.
- Assembly is complete — ready for three-electrode operation.
Unsealed Electrolytic Cell:
- Uses a fixed sealing base with PTFE cap and body.
- Insert the electrodes and secure the cap directly.
- Assembly is complete — ready for three-electrode use.
