DLF-1 Double-Layer Electrolytic Cell | Five-Neck Water-Jacket Design
Price range: $12.00 through $542.00
DLF-1 double-layer electrolytic cell designed for temperature-controlled electrochemical experiments, electrocatalysis, and laboratory three-electrode systems.

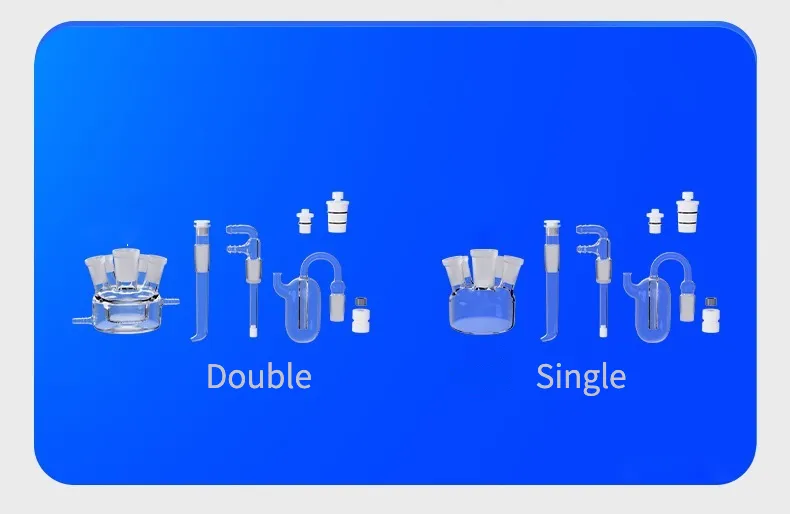

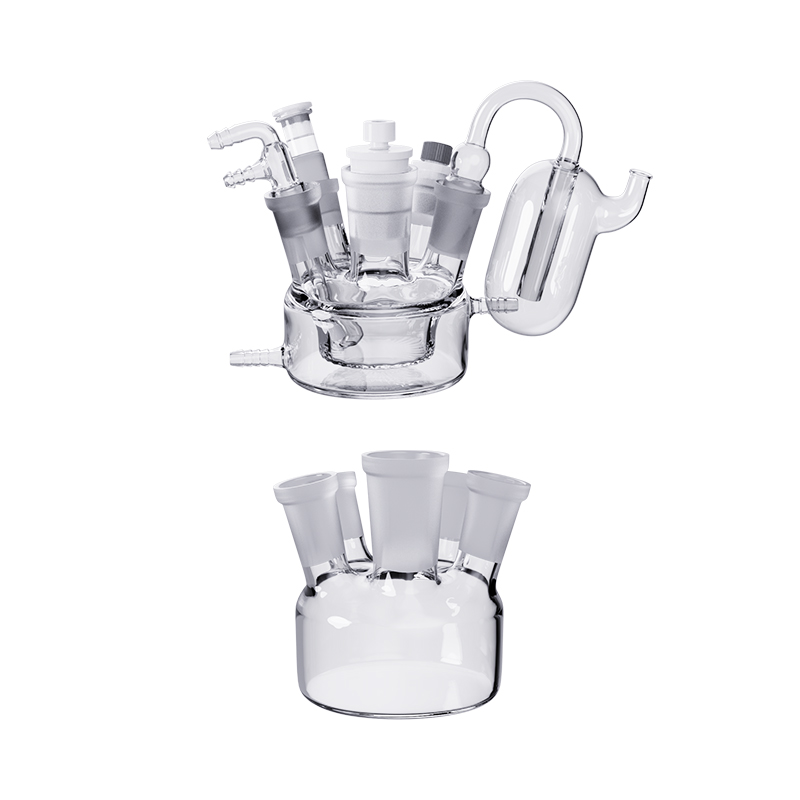

Available in single-layer and water-jacket configurations from 50ml to 500ml with five-neck structure and multiple PTFE sealing accessories.
| Size |
14 # F type inlet and outlet pipe ,14 # liquid sealing device ,14 # stopper ,19 # liquid sealing device ,19 # stopper ,24 # F type inlet and outlet tube ,24 # stopper ,Customization ,Double Water Bath 100ml ,Double Water Bath 150ml ,Double Water Bath 200ml ,Double Water Bath 250ml ,Double Water Bath 300ml ,Double Water Bath 500ml ,Double Water Bath 50ml ,Matching Lujin capillary tube ,Single layer 100ml ,Single layer 150ml ,Single layer 200ml ,Single layer 250ml ,Single layer 300ml ,Single layer 500ml ,Single layer 50ml ,Type 19 # F inlet and outlet tube |
|---|
Five-Port Electrochemical Cell (Glass + PTFE)

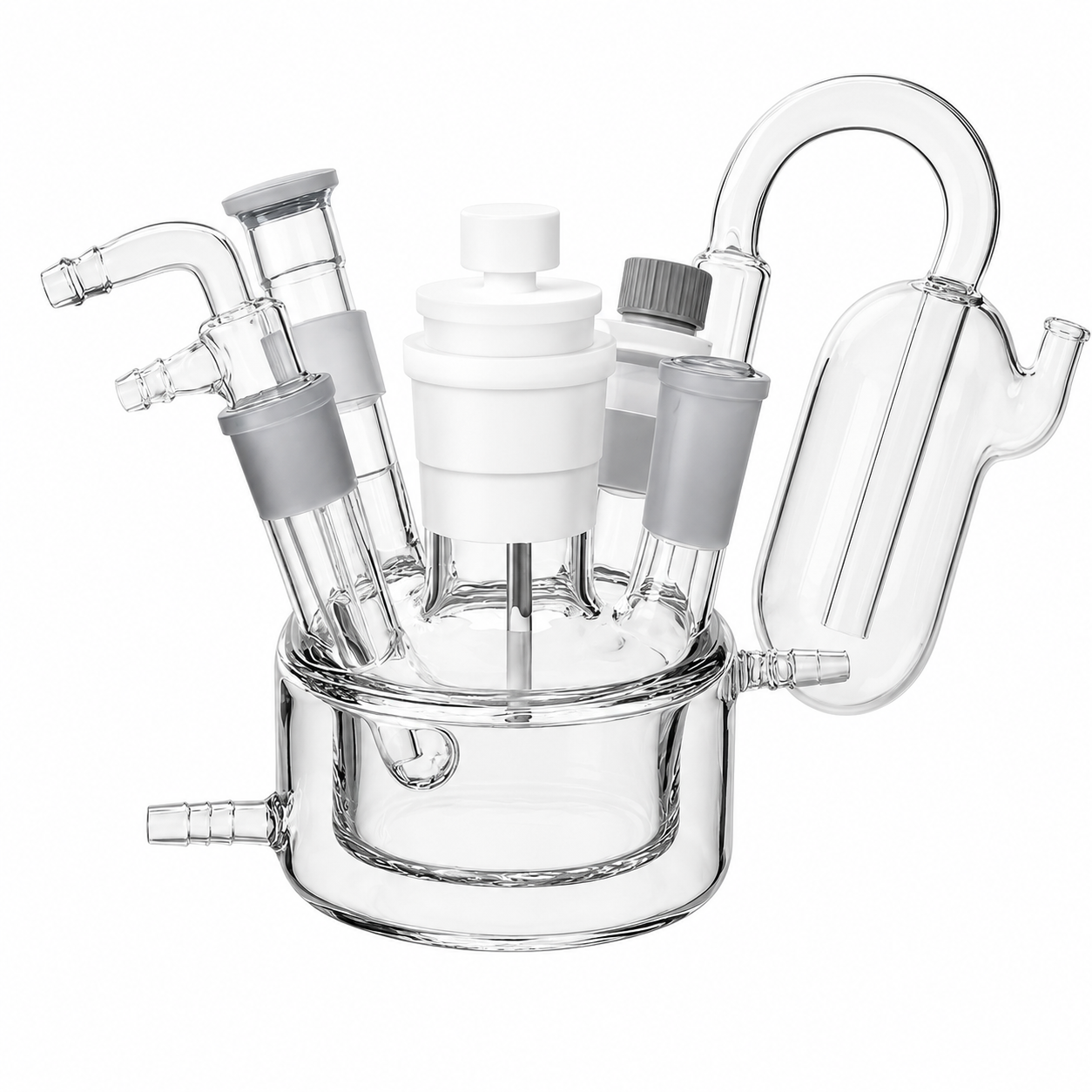

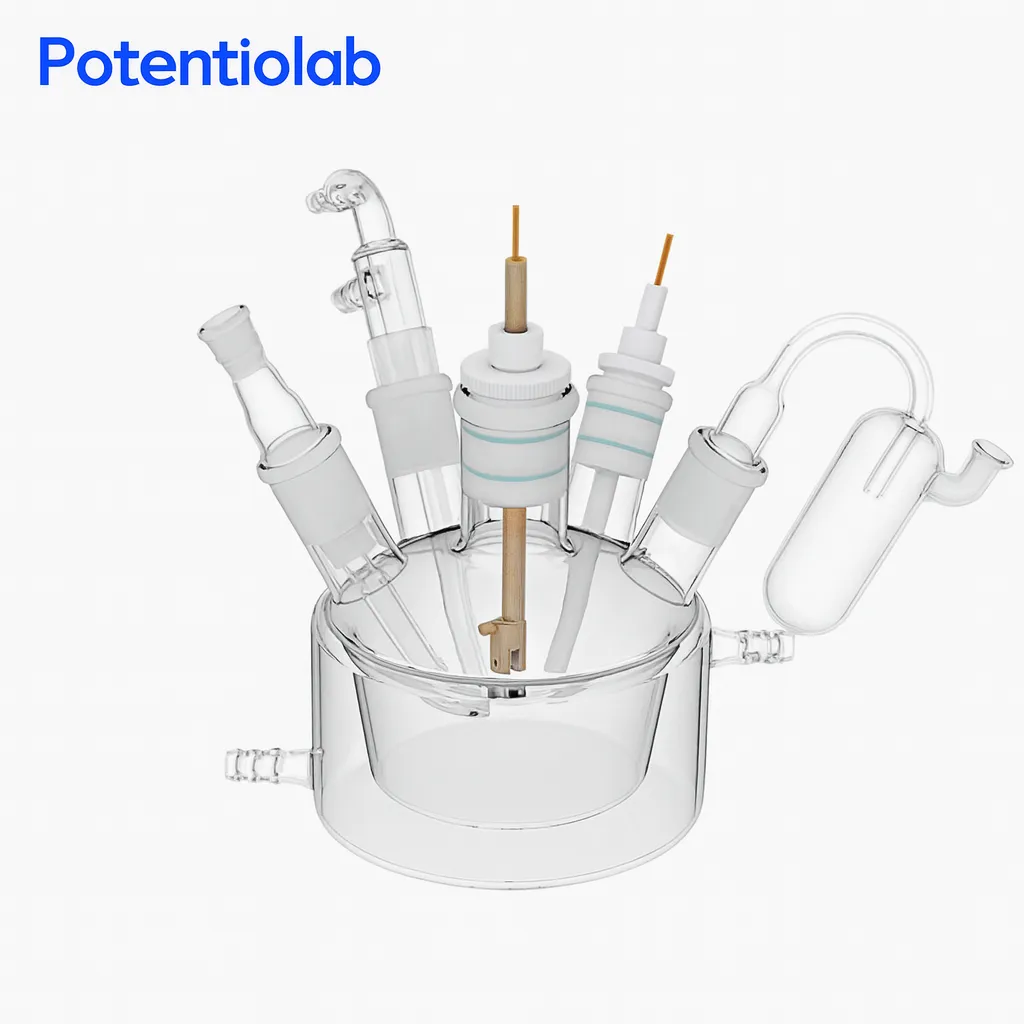

This PTFE-sealed electrochemical cell is designed for precise electrochemical experiments. Available in both single-layer and double-layer (water-jacketed) configurations, it supports a standard three-electrode setup and features ground glass joints for leak-free assembly. The water-jacketed version provides temperature control via external circulator ports, ideal for sensitive or temperature-dependent studies.
Key Features
- Material: Borosilicate Glass + PTFE
- Volume Options: 50ml to 500ml (Customizable)
- Standard Five-Port Configuration
- Excellent Chemical Resistance
- Leak-Free Ground Glass Joints
- Double-Layer Water Jacket for Temperature Control
- Compatible with Various Electrode Types
- High Purity / Long Service Life
| Parameter | Specification |
|---|---|
| Product Name | Five-Port Electrolytic Cell |
| Material | Borosilicate Glass + PTFE |
| Volume Range | 50ml – 500ml (Customizable) |
| Configuration | Five Necks, Ground Joints |
| Jacket Type | Single-layer / Water-jacketed Double-layer |
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
