SF-1 Five-Port Micro Sealed Electrochemical Cell
Price range: $4.00 through $208.00
Potentiolab Five-Port Micro Sealed Electrochemical Cell — A compact, fully enclosed glass micro-reactor (5–50 mL) with multi-neck, heart-shaped design for excellent mixing, minimal dead volume, and stable mass transfer. Ideal for high-precision, gas-tight electrochemical measurements, mechanistic studies, catalyst screening, and oxygen- or moisture-sensitive experiments.
| Size |
10ml electrochemical cell body (with 5 stoppers) ,14# F-type inlet/outlet tube ,14# ground glass stopper ,14# liquid sealing cap ,14# salt bridge ,19# F-type inlet/outlet tube ,19# ground glass stopper ,19# liquid sealing cap ,19# salt bridge ,20ml cell body (with F-tube ,24# F-type inlet/outlet tube ,24# ground glass stopper ,24# salt bridge ,30ml cell body (with F-tube ,50ml cell body (with F-tube ,5ml electrochemical cell body (with 5 stoppers) ,Aeration head (6mm outer diameter) ,Custom electrode support (contact customer service) ,liquid seal) ,Other customization available (contact customer service) ,salt bridge |
|---|

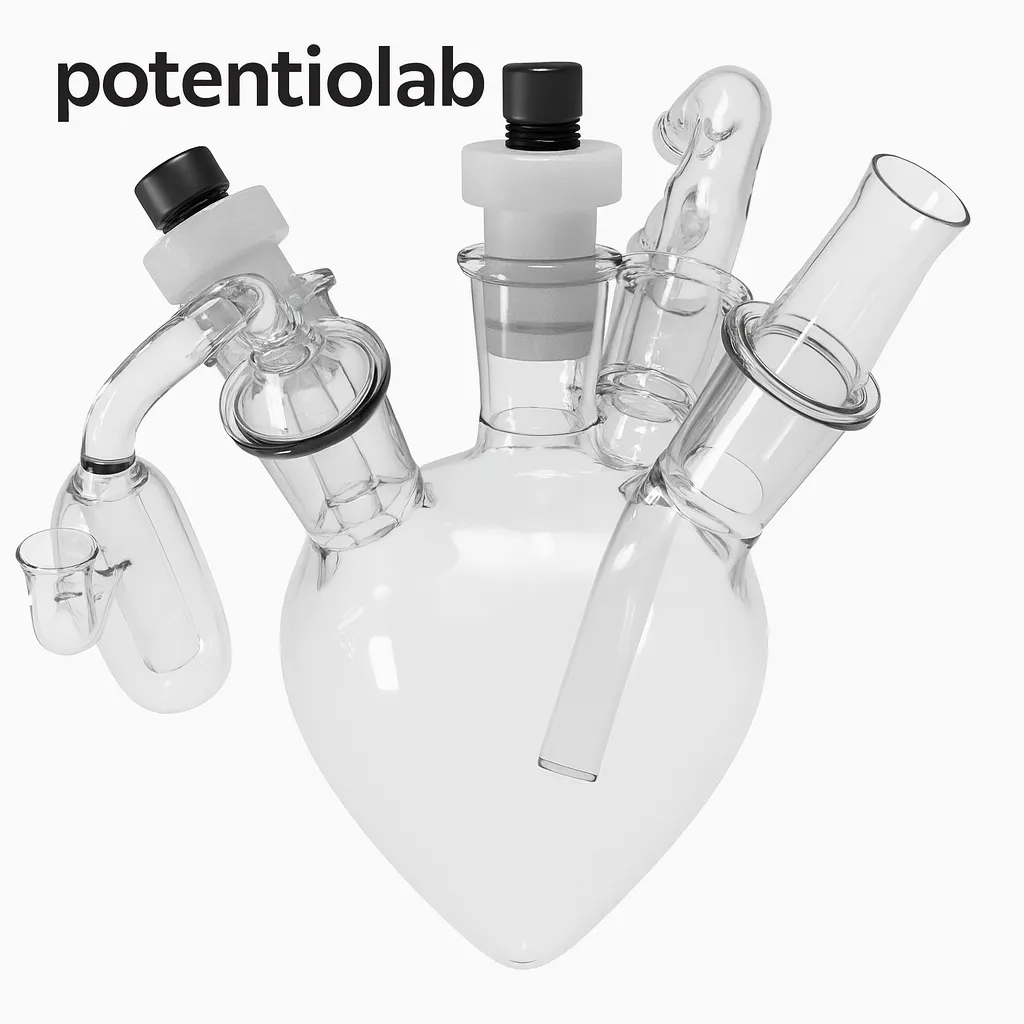

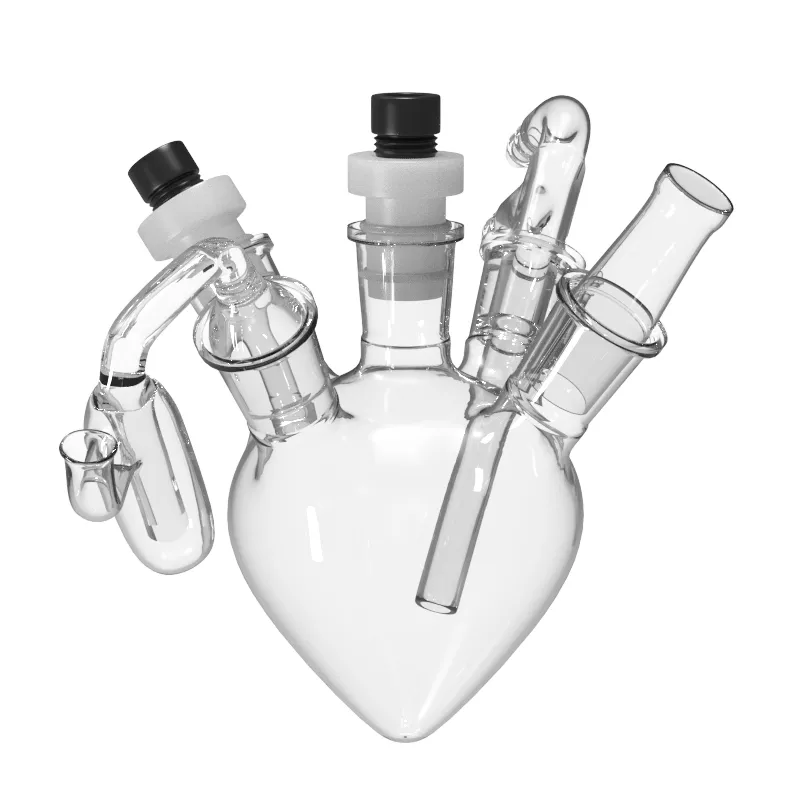

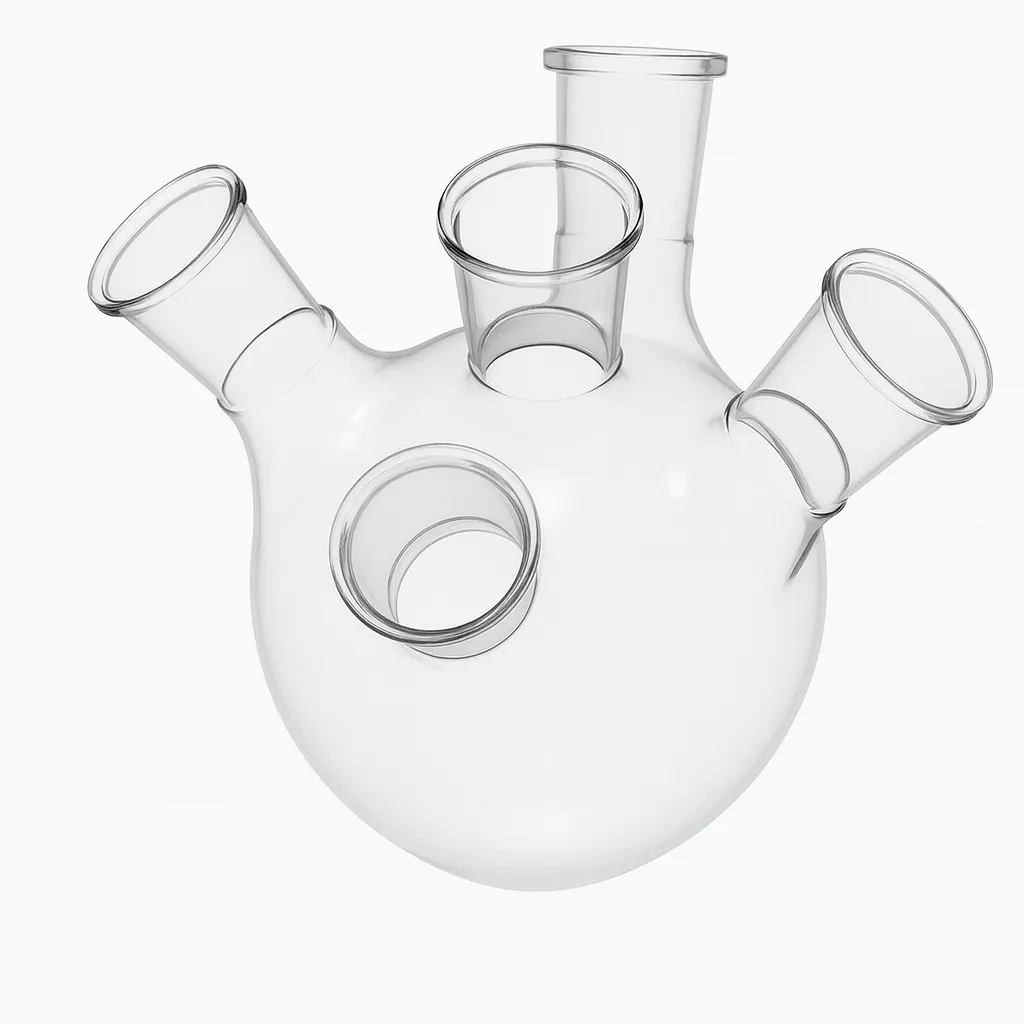

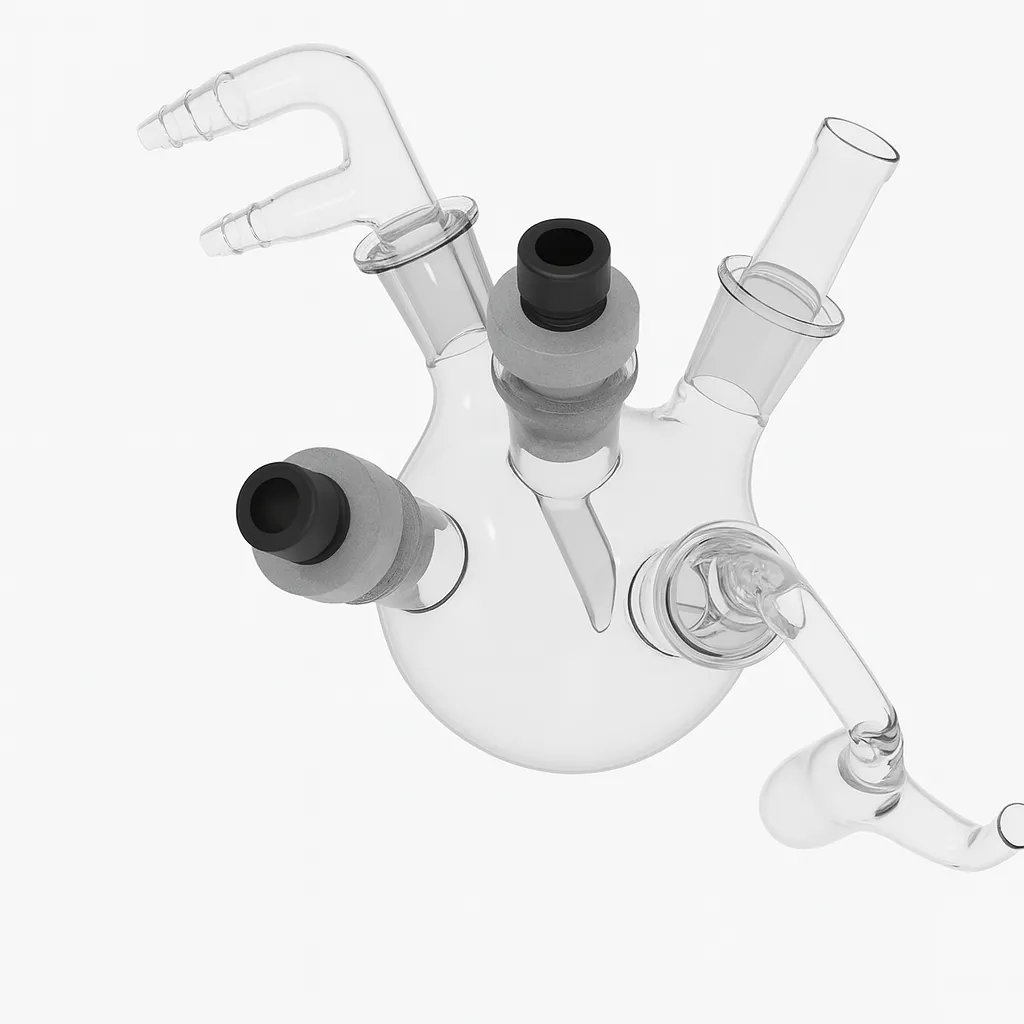

SF-1 Small Five-Neck Electrochemical Cell
The SF-1 Modular Multi-Functional Electrochemical Cell is a compact five-neck electrochemical reactor designed for microscale, high-precision experiments. Available in 5 mL, 10 mL, 20 mL, 30 mL, and 50 mL volumes, the cell minimizes reagent use while providing maximum experimental flexibility. Its chemically resistant PTFE lid and precision-ground glass body ensure stable sealing, compatibility with standard three-electrode systems, and robustness for air- or moisture-sensitive experiments.
Key Features
- Available Sizes: 5 mL, 10 mL, 20 mL, 30 mL, 50 mL
- Five functional ports: Working electrode, Counter electrode, Reference electrode, Gas inlet/outlet, Sampling or injection port
- Lid Material: Polytetrafluoroethylene (PTFE)
- Glass body: Borosilicate or high-purity quartz (optional)
- Threaded O-ring sealing ensures gas-tight operation
- Minimized dead volume for high signal-to-noise ratio
- Compatible with GC, Pt, Au, metal rods, and RDE adapters
- Suitable for electrocatalysis, CO₂RR, ORR, HER/OER, corrosion studies, and gas–liquid reactions
Technical Specifications
| Parameter | Specification |
|---|---|
| Volume | 5–50 mL |
| Structure | Single-layer, five-neck modular design |
| Body Material | Borosilicate glass / Quartz |
| Lid Material | PTFE |
| Seal Type | Threaded O-ring, gas-tight |
| Temperature Range | -80 °C to 200 °C (Borosilicate); up to 1000 °C (Quartz) |
| Electrode Compatibility | GC, Pt, Au, metal rods, RDE adapters |
Typical Applications
- Micro-volume electrocatalyst screening
- Gas-involved electrochemical reactions (CO₂RR / ORR / NRR)
- Moisture- or oxygen-sensitive experiments
- Photoelectrochemical studies (quartz version)
- Analytical electrochemistry and in-situ measurements
- Small-scale corrosion testing and material evaluation
Customization Options
- Vessel volume and shape
- Port number, size, and orientation
- RDE-compatible central port
- PTFE / PEEK sealing options
- Integrated condenser or gas diffuser
- Electrode adapters for GC / Pt / Au / RDE
Recommended for: Researchers needing a small-volume, high-precision, multi-port electrochemical cell for microscale studies, corrosion testing, electrocatalysis, and gas-liquid electrochemistry.
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
