SST1 Solid-State Three-Electrode Test Module - Battery Mold & Laboratory Testing Fixture

SST1 Solid-State Three-Electrode Test Module - Battery Mold & Laboratory Testing Fixture - Image 3

SST1 Solid-State Three-Electrode Test Module – Battery Mold & Laboratory Testing Fixture

Price range: $2.00 through $415.00

Size	Complete Three-Electrode System Kit (Three-Electrode Mold + Electrode Rod + Airtight Cell) , Standard Mold Accessories Included

Add to wishlist

SKU: SST1 Category: Solid-State Battery Molds

Description

Potentiolab • Solid-State Battery Testing Fixtures

Solid-State Three-Electrode Test Module

A three-electrode test module for solid-state batteries (SSBs) designed to enable precise electrochemical analysis of individual electrodes.
Unlike conventional two-electrode (2E) systems, this configuration introduces a reference electrode,
allowing separate monitoring of cathode and anode behavior and providing deeper insight into internal electrochemical processes.

Three-Electrode System
In-situ Analysis
Up to 500 MPa

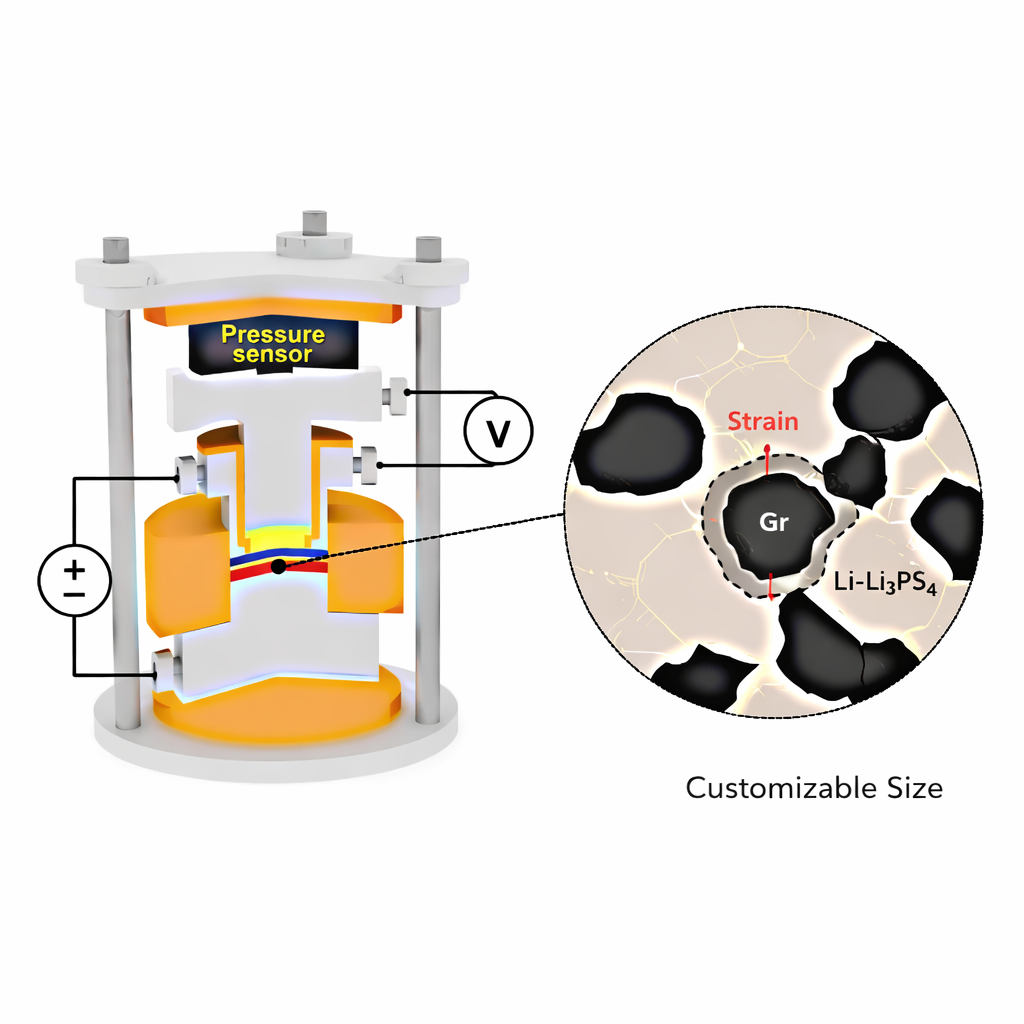

Solid-state three-electrode test module main view

Key Features

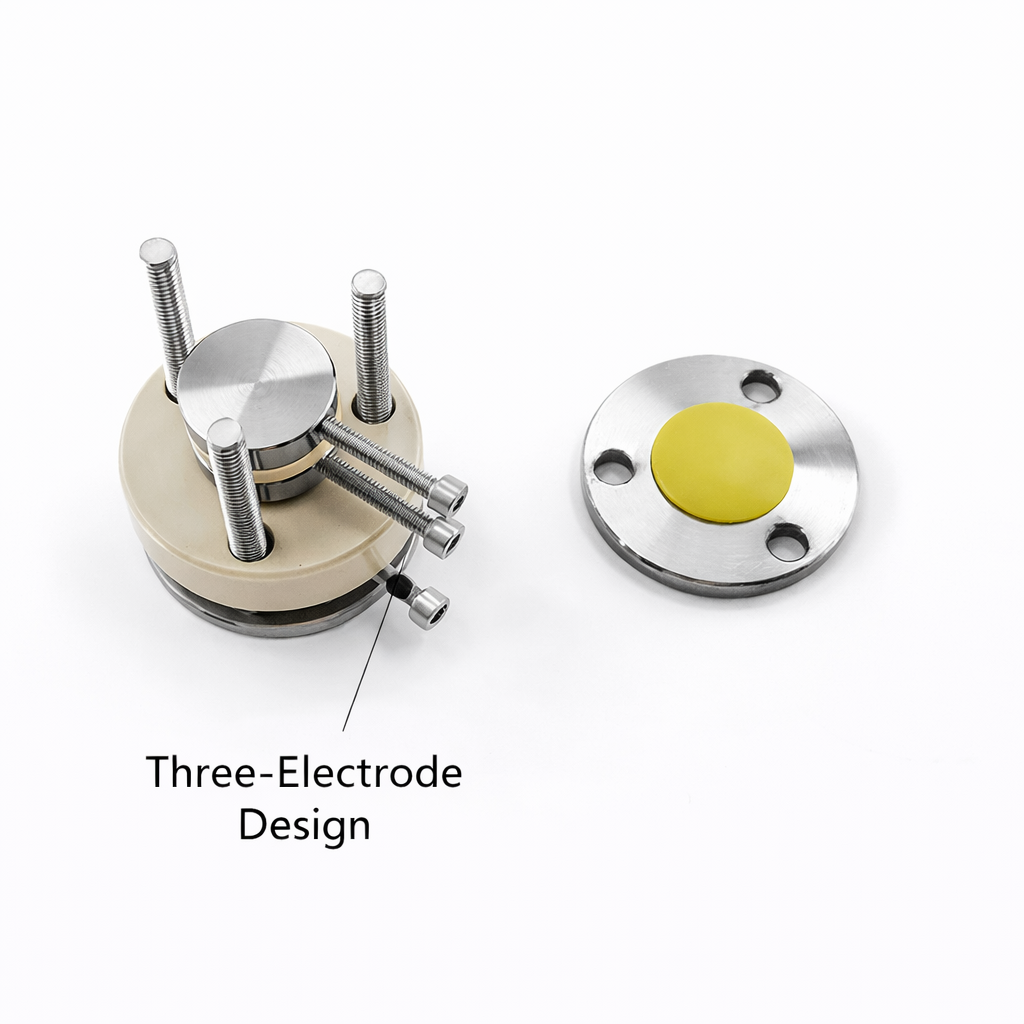

Three-electrode configuration enables independent electrode analysis
Separates cathode and anode electrochemical behavior
Improves accuracy of potential measurement using reference electrode
Suitable for solid-state battery research and mechanism studies
Supports in-situ monitoring of electrochemical processes

Structure & Materials

Sleeve Material: PEEK insulation structure
Body Material: Stainless Steel / Special Steel
Design: Adjustable inner diameter for flexible configuration

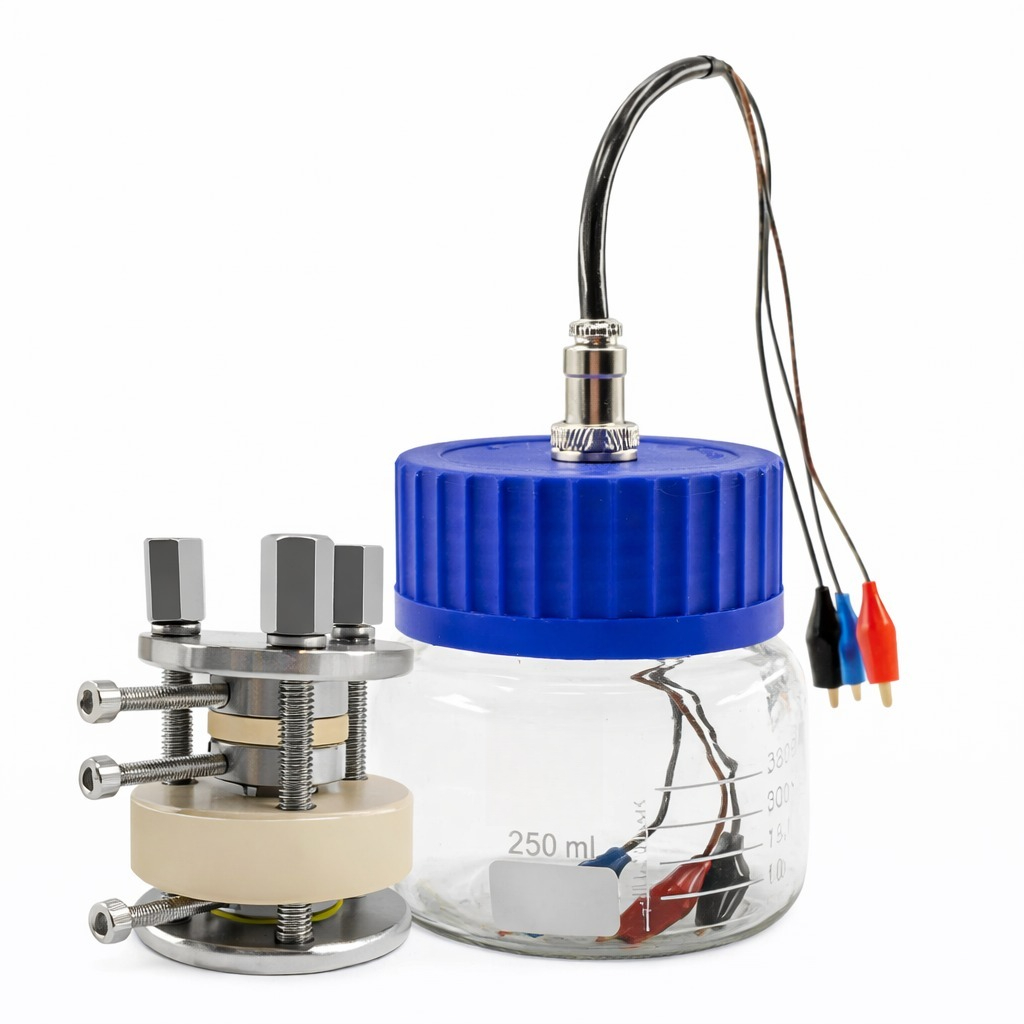

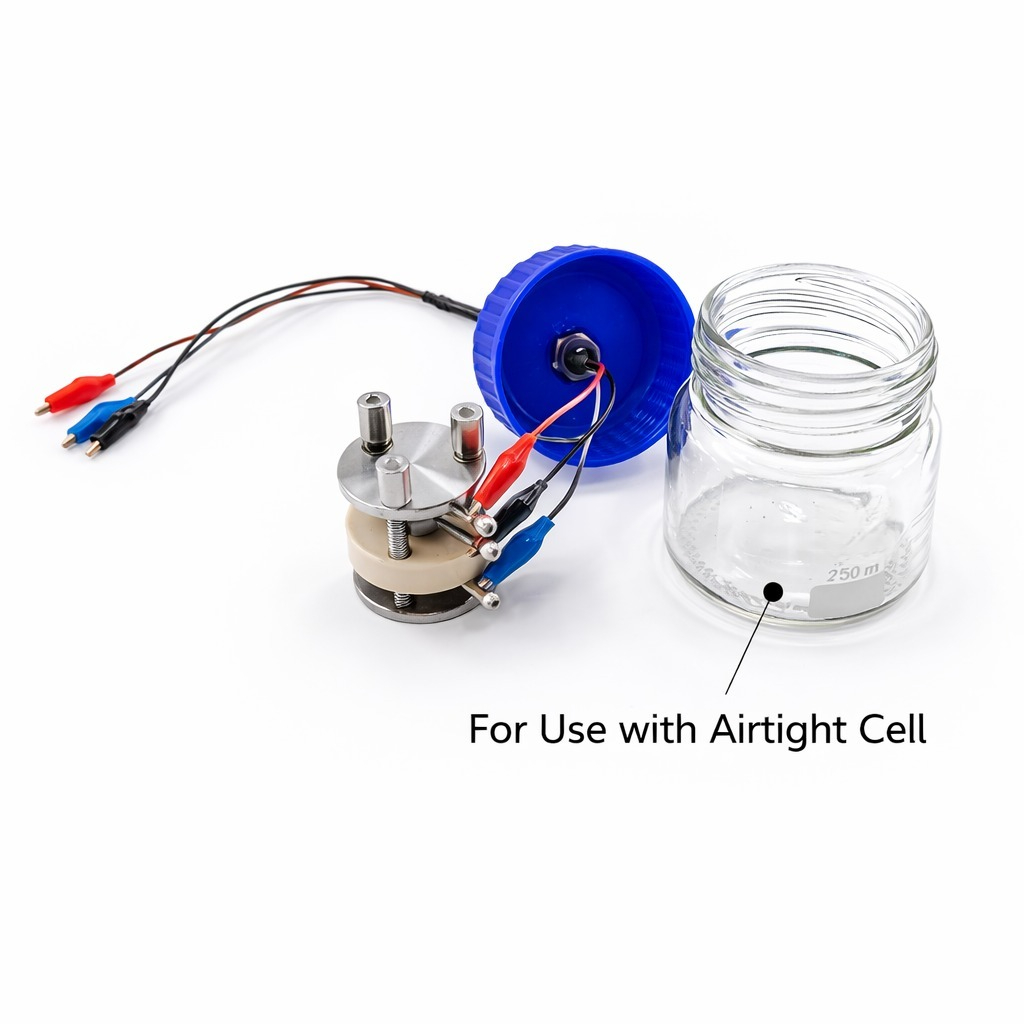

Sealing: Airtight bottle compatible
Assembly: Modular electrode column system

Product Name	Solid-State Three-Electrode Test Module
PEEK Sleeve Diameter	40 mm
Assembly Height	65 mm
Minimum Inner Diameter	4 mm (adjustable)
Material	Stainless Steel, PEEK, Special Steel
Maximum Pressure	500 MPa

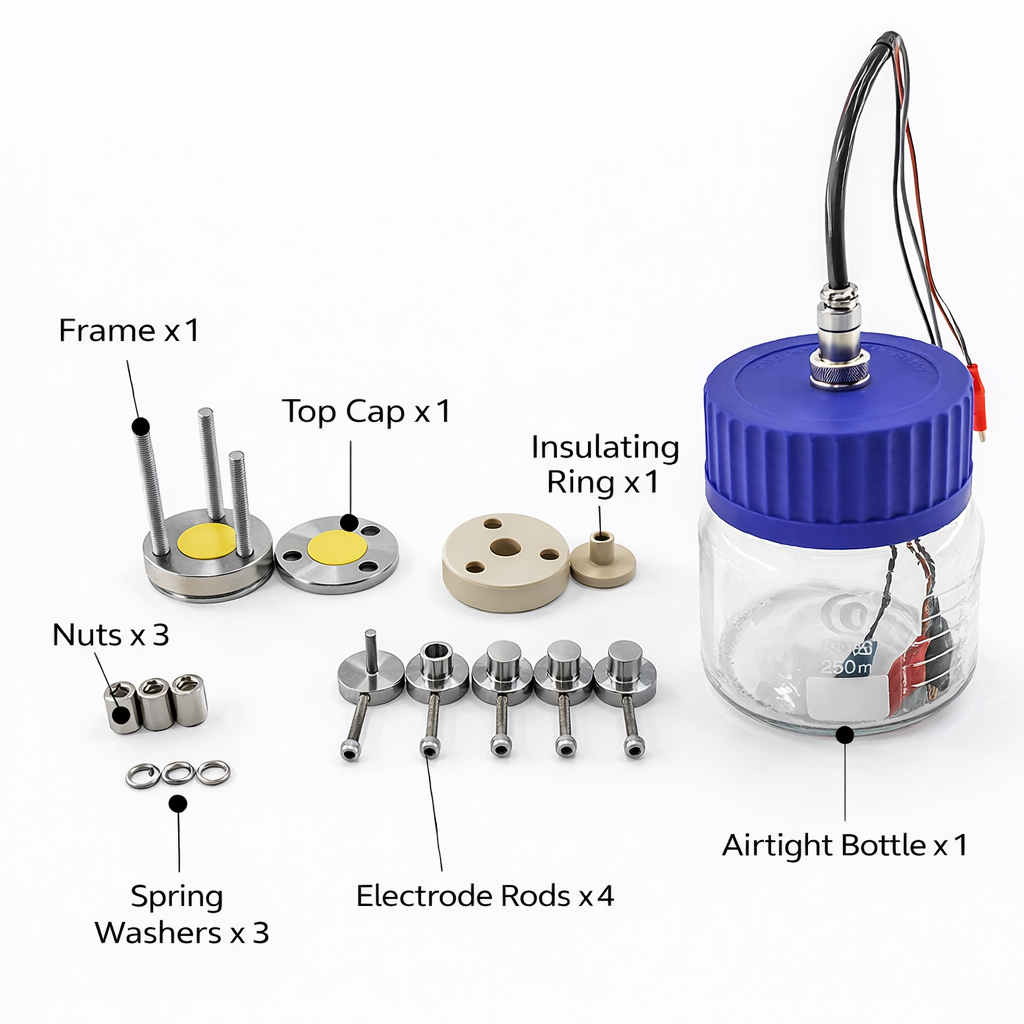

Package Includes	Complete Three-Electrode Set, Electrode Posts, Airtight Bottle

In conventional battery testing, two-electrode systems (cathode vs anode) only provide overall cell performance,
making it difficult to distinguish individual electrode contributions.
This three-electrode test module introduces a reference electrode, enabling precise tracking of each electrode’s potential
and offering deeper insight into reaction mechanisms, interface stability, and performance limitations.
It is an essential tool for advanced solid-state battery research, material development, and electrochemical analysis.
