CSS1 Ceramic Solid-State Battery Compression Test Mold Kit

CSS1 Ceramic Solid-State Battery Compression Test Mold Kit - Image 3

CSS1 Ceramic Solid-State Battery Compression Test Mold Kit

Price range: $20.00 through $457.00

Size	A complete set of 10 mm PEEK inner cavity , A complete set of ceramic liners with an inner diameter of 10 mm , Ceramic Ring , Standard Mold Accessories

Add to wishlist

SKU: CSS1 Category: Solid-State Battery Molds

Description

Potentiolab • Solid-State Battery Fixtures

Solid-State Battery Mold with Ceramic Liner (Ceramic Version)

A ceramic-version solid-state battery mold designed for precise sample assembly and stable laboratory testing.
With a ceramic liner structure and durable metal-insulation combination, this mold is suitable for solid-state battery research requiring
clean inner-wall contact, stable compression, and reliable structural support.

Ceramic Version
10 mm ID
Customizable

Solid-state battery mold with ceramic liner ceramic version main view

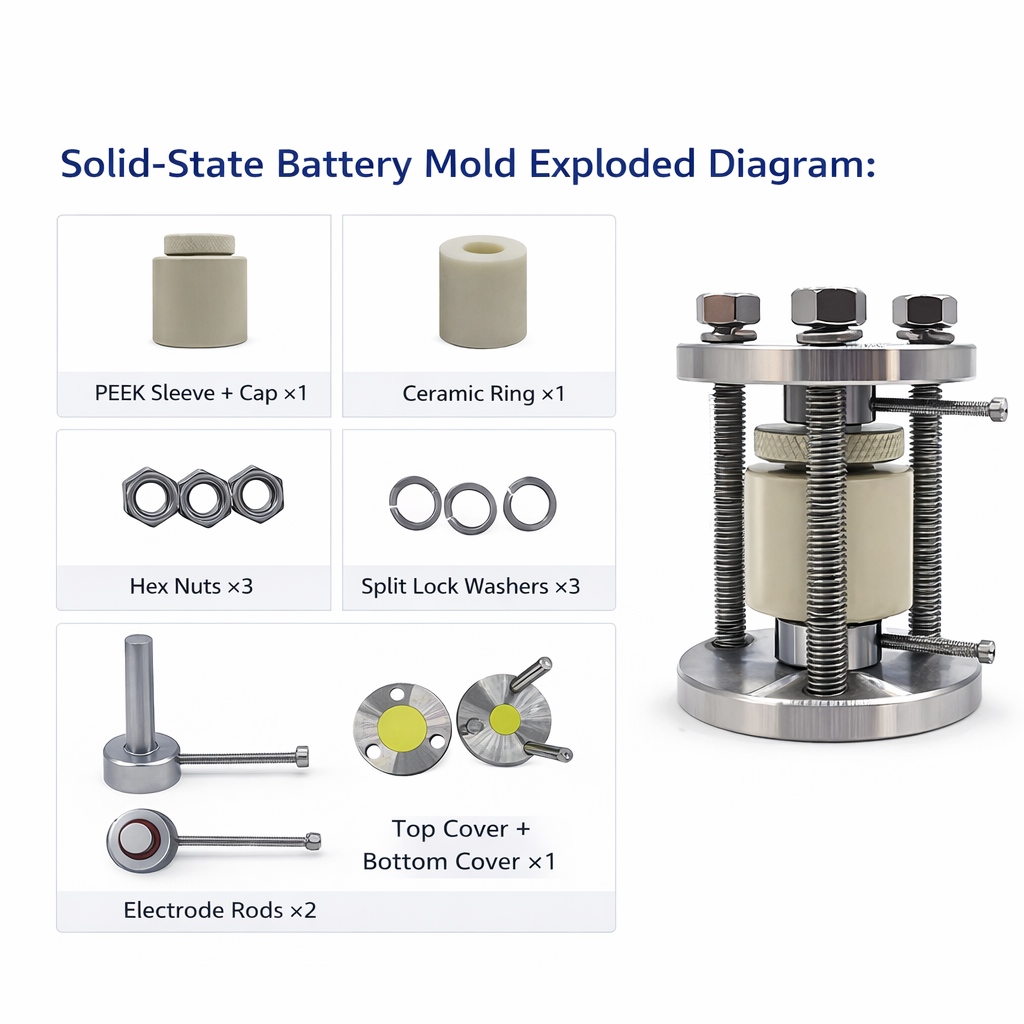

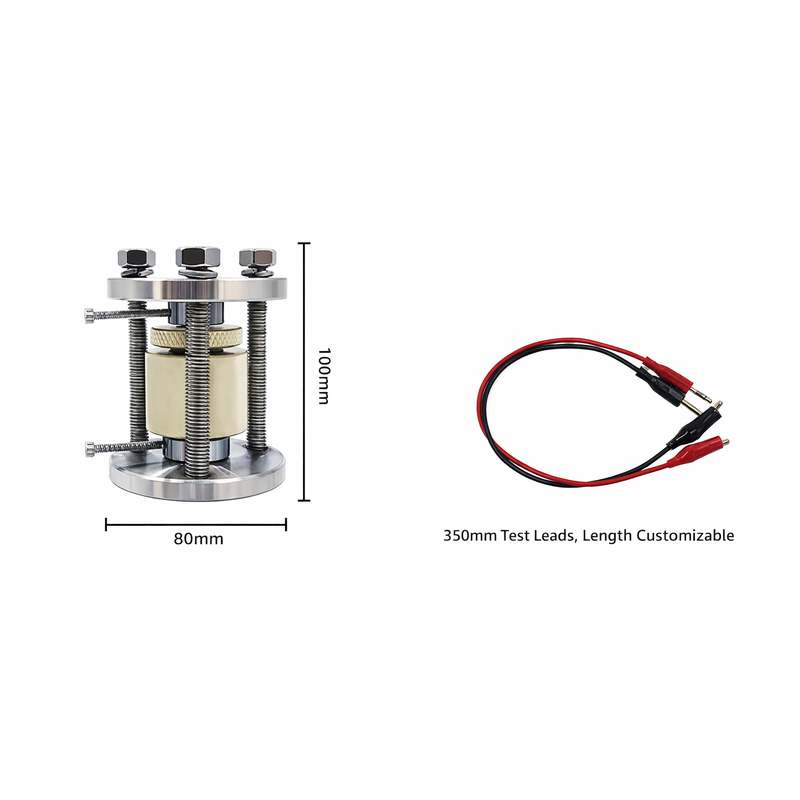

Ceramic version solid-state battery mold structure details

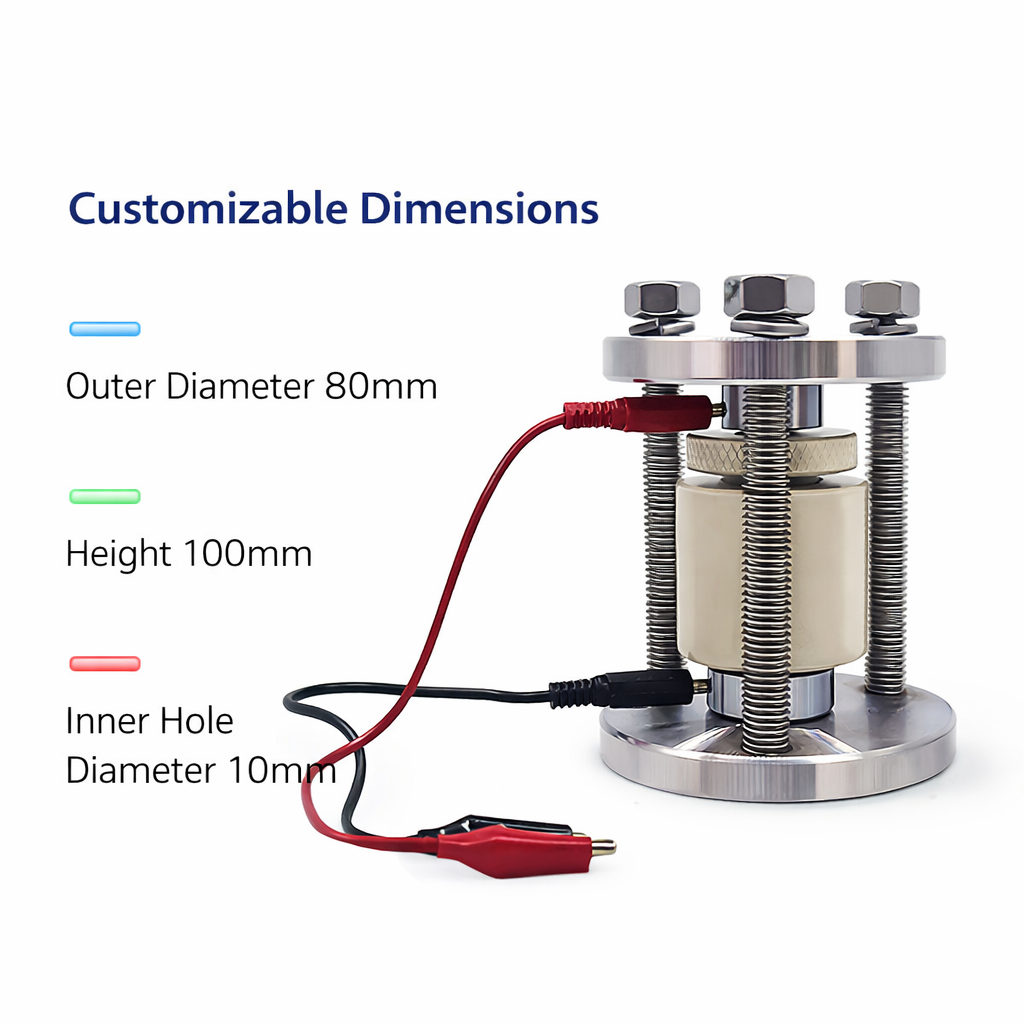

Solid-state battery mold with ceramic liner additional view

Key Features

Ceramic liner design for clean and stable inner-wall contact
Suitable for solid-state battery pellet assembly and testing
Helps maintain structural stability during compression
Designed for repeatable laboratory-scale experiments
Customizable configuration for specific research needs

Structure & Materials

Version: Ceramic Version
Main Materials: Titanium Alloy, PEEK, Ceramic
Inner Diameter: 10 mm
Design: Ceramic-lined mold structure
Customization: Available upon request

Product Name	Solid-State Battery Mold
Inner Diameter	10 mm
Model	Ceramic Version
Material	Titanium Alloy, PEEK, Ceramic
Customization	Available upon request

This solid-state battery mold with ceramic liner is suitable for researchers who require a stable and customizable fixture
for sample pressing, assembly, and electrochemical evaluation. The combination of titanium alloy, PEEK, and ceramic
provides a balanced structure with mechanical strength, insulation performance, and clean contact surfaces for advanced battery experiments.

Note: This is the ceramic version with a standard inner diameter of 10 mm. Custom sizes and configurations are available upon request. Please contact us for detailed specifications.
