SSB1 Solid-State Battery Press Mold (Ceramic Liner, High-Temp Compression Fixture)

SSB1 Solid-State Battery Press Mold (Ceramic Liner, High-Temp Compression Fixture) - Image 3

SSB1 Solid-State Battery Press Mold (Ceramic Liner, High-Temp Compression Fixture)

Price range: $4.00 through $457.00

Size	Complete Set of High-Temperature Ceramic Mold – Inner Diameter 10 mm , Gold-Plated Electrode Columns (Positive + Negative) – Columns Not Included , Standard Mold Accessories Included

Add to wishlist

SKU: SSB1 Category: Solid-State Battery Molds

Description

Potentiolab • Solid-State Battery Fixtures

Solid-State Battery Press Mold with Ceramic Liner

A high-precision solid-state battery press mold designed for stable pellet compression and reliable assembly.
Featuring a self-lubricating ceramic liner, polished electrode surfaces, and precision-machined structure,
this fixture improves molding consistency, reduces powder adhesion, and enhances overall experimental reliability.

Ceramic Liner
Self-Lubricating
800 MPa Pressure

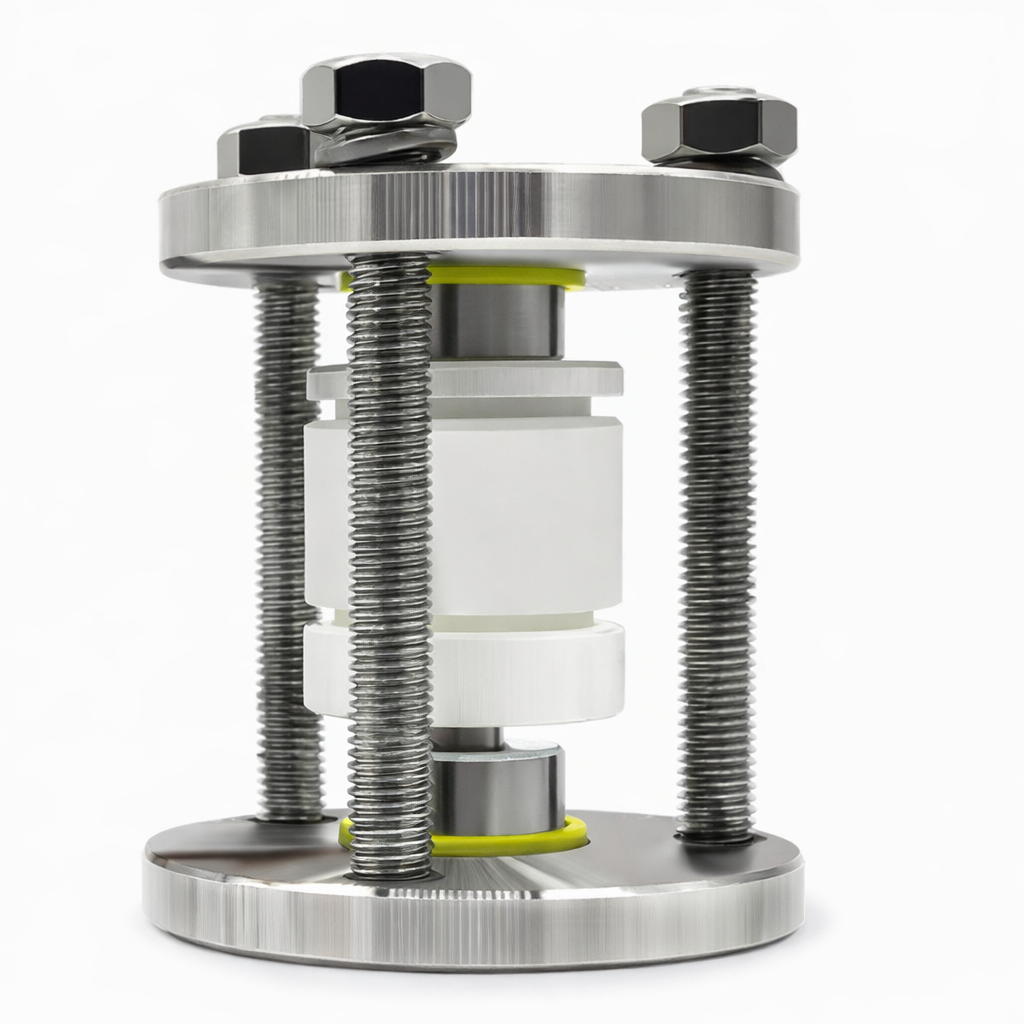

Solid-State Battery Press Mold with Ceramic Liner main view

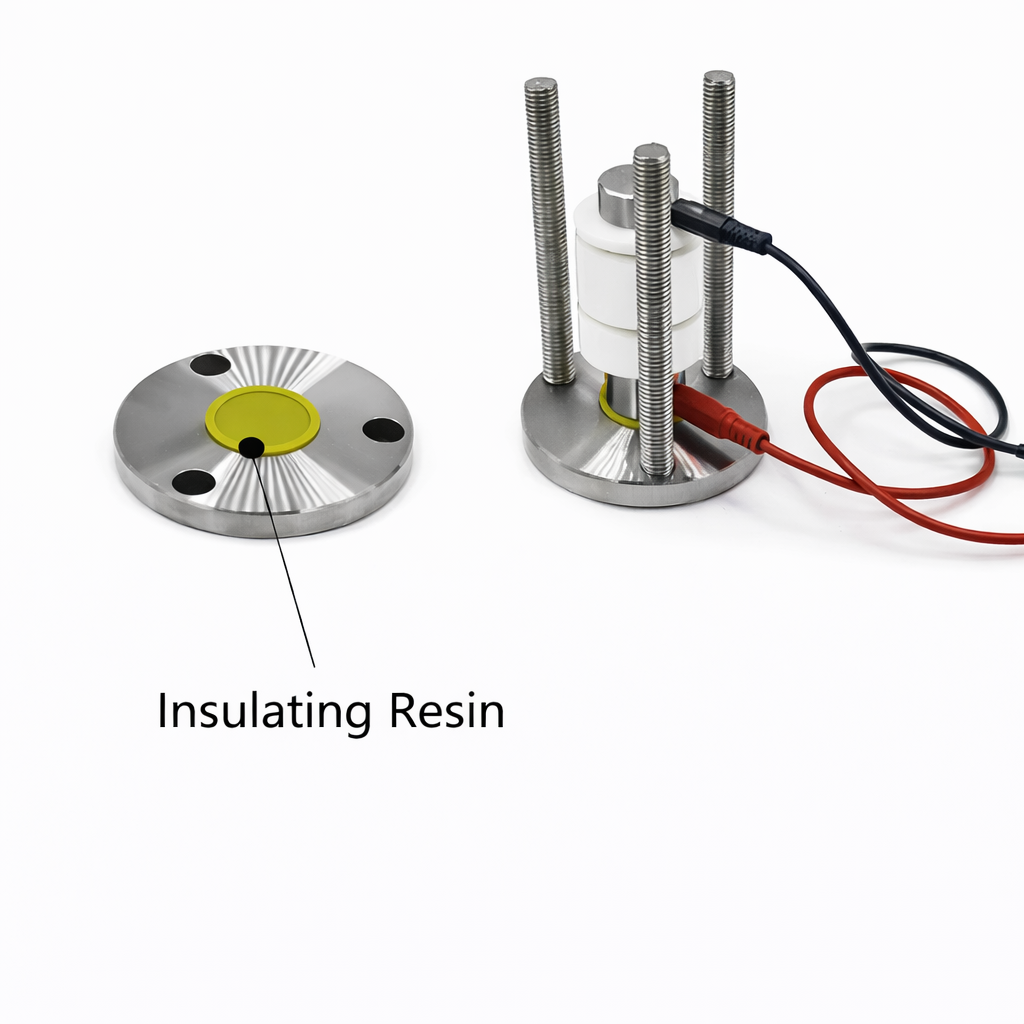

Solid-State Battery Press Mold structure details

Key Features

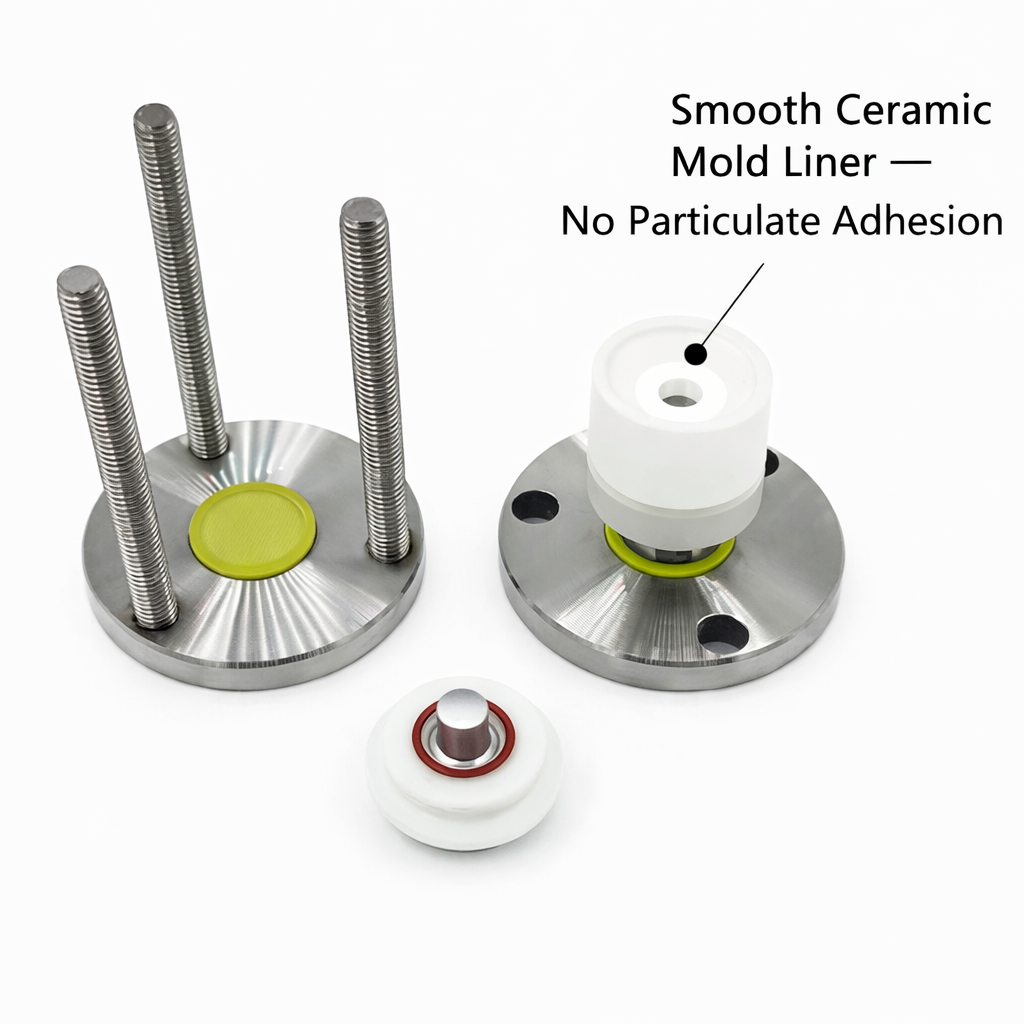

Self-lubricating ceramic ring reduces powder adhesion
Smooth inner wall prevents material hanging and residue buildup
Improves demolding performance and pellet integrity
Suitable for precision solid-state battery sample preparation
Enhances consistency and repeatability of pressing results

Structure & Process

Insulation Sleeve: Nylon + Ceramic composite structure
Electrode Post: Polished top surface for flat contact
Machining: High-precision CNC processing
Tolerance: Strict dimensional control for stability
Performance: Stable pressure transfer and alignment

Product Name	Solid-State Battery Mold
Inner Diameter	10 mm (default)
Product Size	80 × 100 mm
Material	Stainless Steel, Special Steel, PEEK
Maximum Pressure	800 MPa
Operating Condition	Room Temperature

The ceramic-lined solid-state battery press mold is engineered to provide clean, stable, and repeatable pellet formation.
Its smooth ceramic surface minimizes friction and powder sticking, while the precision-machined structure ensures uniform pressure distribution.
Compared to conventional molds, it significantly improves sample integrity, demolding efficiency, and experimental reproducibility,
making it ideal for advanced solid-state battery research and laboratory material development.
