TBT1 Swagelok-Type Battery Test Cell with Three-Electrode System

Price range: $2.00 through $415.00

Size

High Purity Molybdenum – Inner Diameter 10 mm

,

High Purity Molybdenum – Inner Diameter 12 mm

,

High Purity Molybdenum – Inner Diameter 14 mm

,

High Purity Molybdenum – Inner Diameter 16 mm

,

High Purity Molybdenum – Inner Diameter 18 mm

,

High Purity Molybdenum – Inner Diameter 20 mm

,

Pure Titanium – Inner Diameter 10 mm

,

Pure Titanium – Inner Diameter 12 mm

,

Pure Titanium – Inner Diameter 14 mm

,

Pure Titanium – Inner Diameter 16 mm

,

Pure Titanium – Inner Diameter 18 mm

,

Pure Titanium – Inner Diameter 20 mm

,

Reference Electrode Installation – Four Electrode Configuration

,

Standard Mold Accessories

,

TC4 Titanium Alloy / 304 Stainless Steel – Inner Diameter 10 mm

,

TC4 Titanium Alloy / 304 Stainless Steel – Inner Diameter 12 mm

,

TC4 Titanium Alloy / 304 Stainless Steel – Inner Diameter 14 mm

,

TC4 Titanium Alloy / 304 Stainless Steel – Inner Diameter 16 mm

,

TC4 Titanium Alloy / 304 Stainless Steel – Inner Diameter 18 mm

,

TC4 Titanium Alloy / 304 Stainless Steel – Inner Diameter 20 mm

SKU: TBT1 Category:
Description

Potentiolab • Battery Test Tools

Liquid Electrolyte Battery Test Cell

Designed primarily for liquid electrolyte battery testing, this test cell offers strong sealing performance,
corrosion resistance, and stable operation under elevated temperature and pressure conditions.

Liquid Electrolyte Testing
Up to 200°C
Max 10 MPa

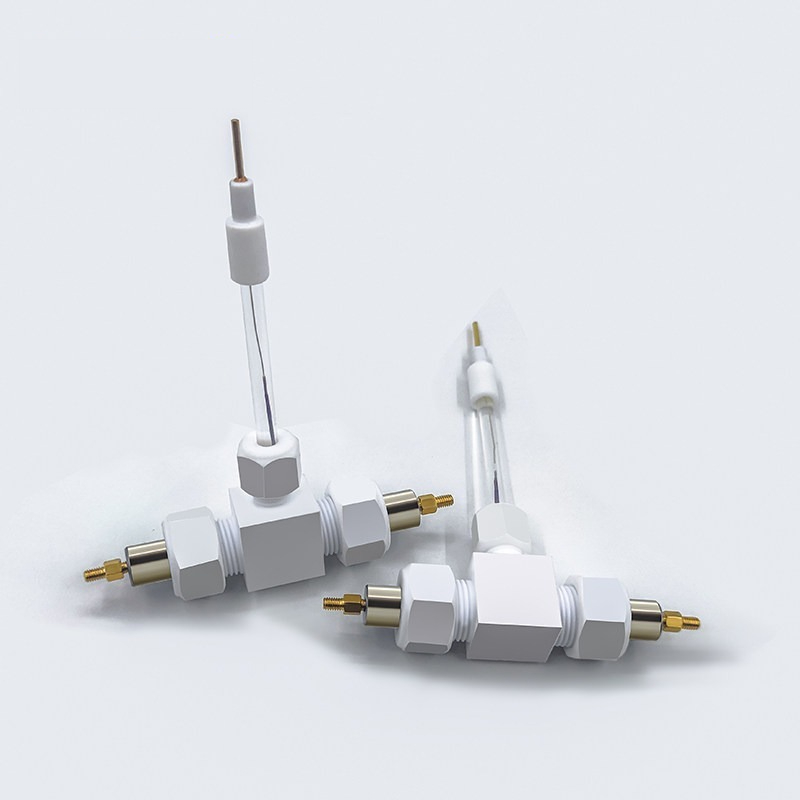

Liquid electrolyte battery test cell overview

Liquid electrolyte battery test cell structure

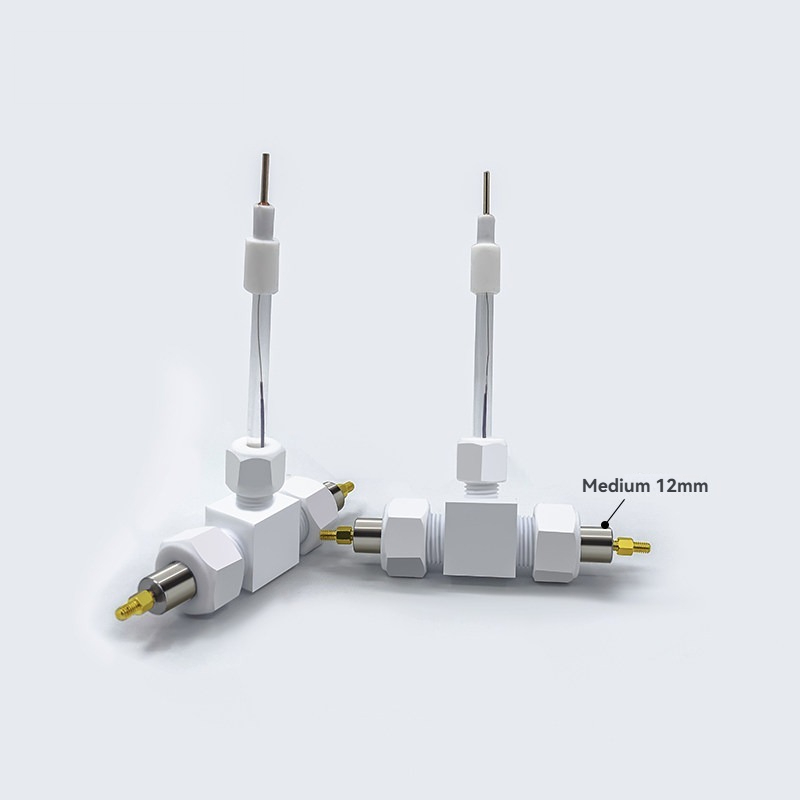

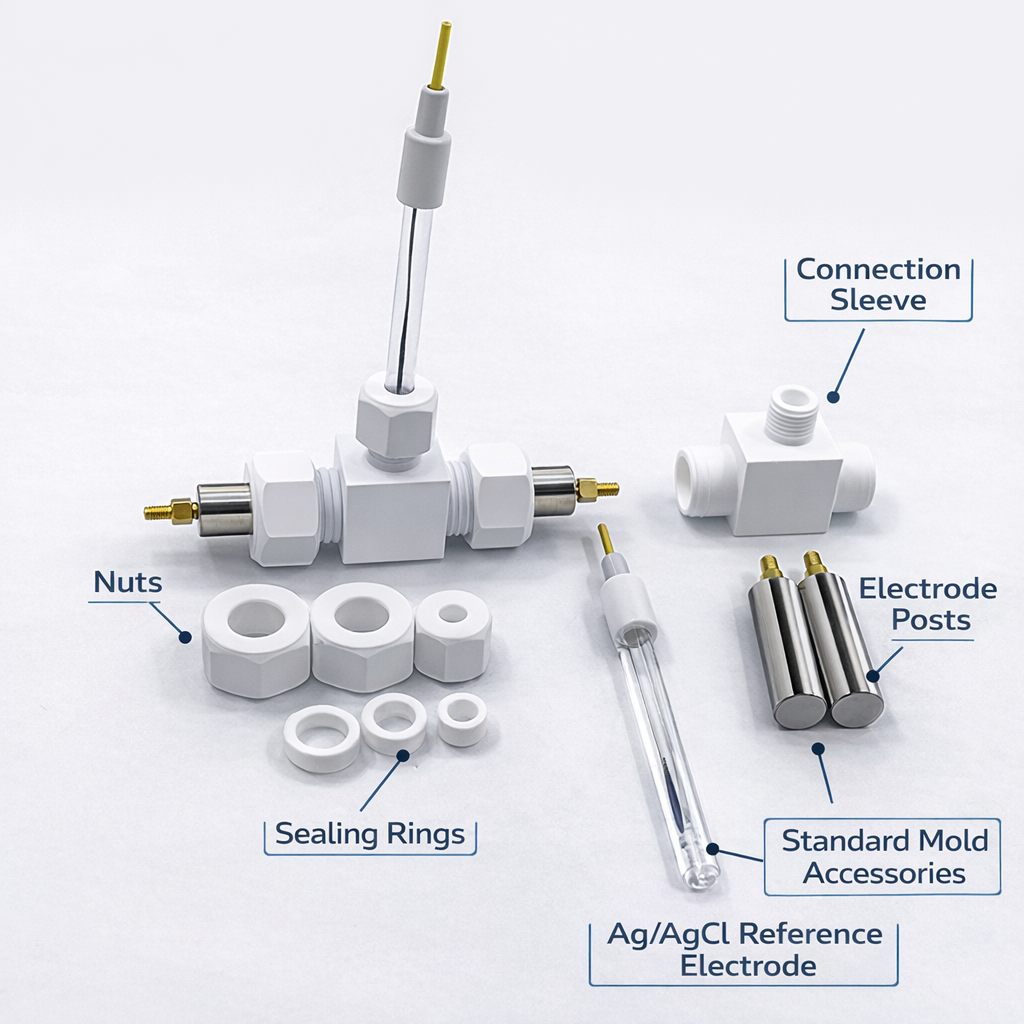

Liquid electrolyte battery test cell components

Liquid electrolyte battery test cell detailed view

ApplicationLiquid Electrolyte Battery Testing
ModelYT08
Inner DiameterΦ10 mm, Φ12 mm, Φ14 mm, Φ16 mm
Sleeve MaterialPTFE
Product MaterialHigh-Purity Molybdenum, Pure Titanium, Titanium Alloy
Maximum Working Pressure10 MPa
Maximum Working Temperature200°C
FeaturesCorrosion Resistance, Strong Sealing Performance, High-Temperature Stability, Precision Machining, Customizable

This liquid electrolyte battery test cell is manufactured from high-quality materials and is suitable for
demanding laboratory environments. It features excellent corrosion resistance, strong sealing performance,
high-temperature stability, and precision machining. Custom dimensions and configurations are available
to meet specific experimental requirements.
