STB1 Swagelok-Type Battery Test Cell / Three-Electrode Electrochemical Test Fixture

STB1 Swagelok-Type Battery Test Cell / Three-Electrode Electrochemical Test Fixture - Image 3

STB1 Swagelok-Type Battery Test Cell / Three-Electrode Electrochemical Test Fixture

Name: STB1 Swagelok-Type Battery Test Cell / Three-Electrode Electrochemical Test Fixture - Potentiolab — Electrochemistry Electrodes & CellsPotentiolab
SKU: STB1
Availability: InStock

Price range: $4.00 through $373.00

Size

Additional price for installing quartz window panels

Gold-plated current collector charge

High Purity Molybdenum-10mm

High Purity Molybdenum-12mm

High Purity Molybdenum-14mm

High Purity Molybdenum-16mm

High Purity Molybdenum-20mm

Mold Accessories

Pure Titanium-10mm

Pure Titanium-12mm

Pure Titanium-14mm

Pure Titanium-16mm

Pure Titanium-20mm

TC4 Titanium Alloy/304 Stainless Steel-20mm

TC4 Titanium-22mm

TC4 Titanium/304 Stainless Steel-10mm

TC4 Titanium/304 Stainless Steel-12mm

TC4 Titanium/304 Stainless Steel-14mm

TC4 Titanium/304 Stainless Steel-16mm

Size

Clear

Add to wishlist

SKU: STB1 Category: Solid-State Battery Molds

Description

Potentiolab • Electrochemical Test Cells

Swagelok-Type Three-Electrode Electrochemical Test Cell

This Swagelok-type three-electrode electrochemical test cell is designed for laboratory battery research,
electrochemical experiments, and catalyst evaluation. The electrode hole diameter can be customized to match
different experimental requirements.

Three-Electrode Cell
Electrochemical Research
Customizable

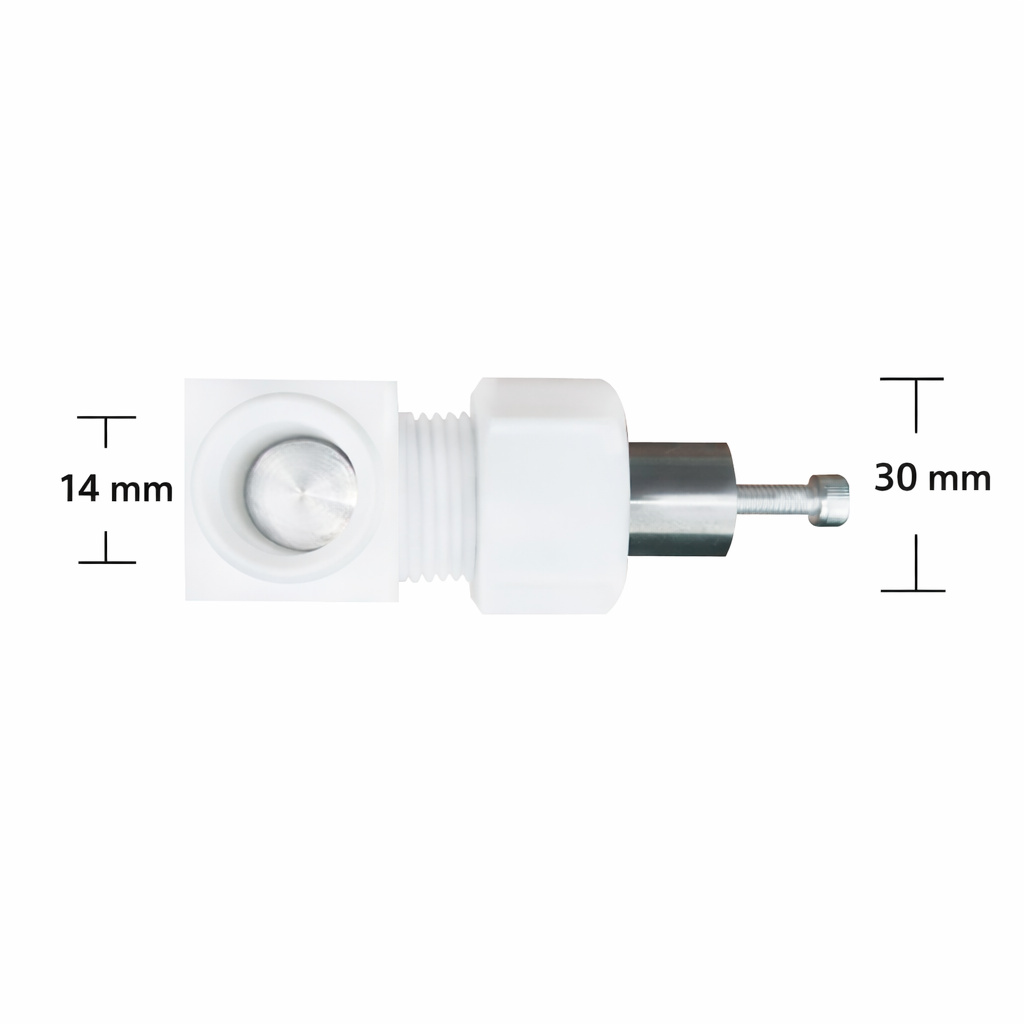

Swagelok-type three-electrode electrochemical test cell main view

Swagelok three electrode electrochemical test cell structure

Swagelok electrochemical test fixture assembly

Key Features

Designed for three-electrode electrochemical testing
High sealing performance and corrosion resistance
Precision-machined components for reliable assembly
Stable performance in laboratory environments

Customization Options

Hole diameter customizable from 12–20 mm
Electrode column standard: TC4 titanium alloy
Electrode column material can be replaced on request
Discount available for bulk orders

Product Type	Swagelok-Type Three-Electrode Test Cell
Material	Titanium Alloy, PTFE
Electrode Column	Standard TC4 Titanium Alloy (Replaceable)

The Swagelok-type three-electrode electrochemical test cell is widely used in electrochemical research,
battery testing, catalyst studies, and material evaluation. Built with titanium alloy and PTFE,
the fixture offers excellent corrosion resistance, sealing performance, and long-term experimental stability.
