    SCI1 10μm Single-Channel Interdigitated Electrode for Gas, Biosensing, and Photoelectric Detection

    $27.00

    Size

    Default

    Add to wishlist
    SKU: SCI1 Category:
    Description
    Potentiolab • Single-Channel Interdigitated Electrode

    10μm Single-Channel Interdigitated Electrode on Quartz Glass

    High-precision 10μm single-channel interdigitated electrode on transparent quartz glass, designed for optical gas sensing, biosensing, photoelectric detection, chemical, physical, and medical sensor applications.

    10μm Electrode Gap
    Quartz Glass
    Photoelectric Detection

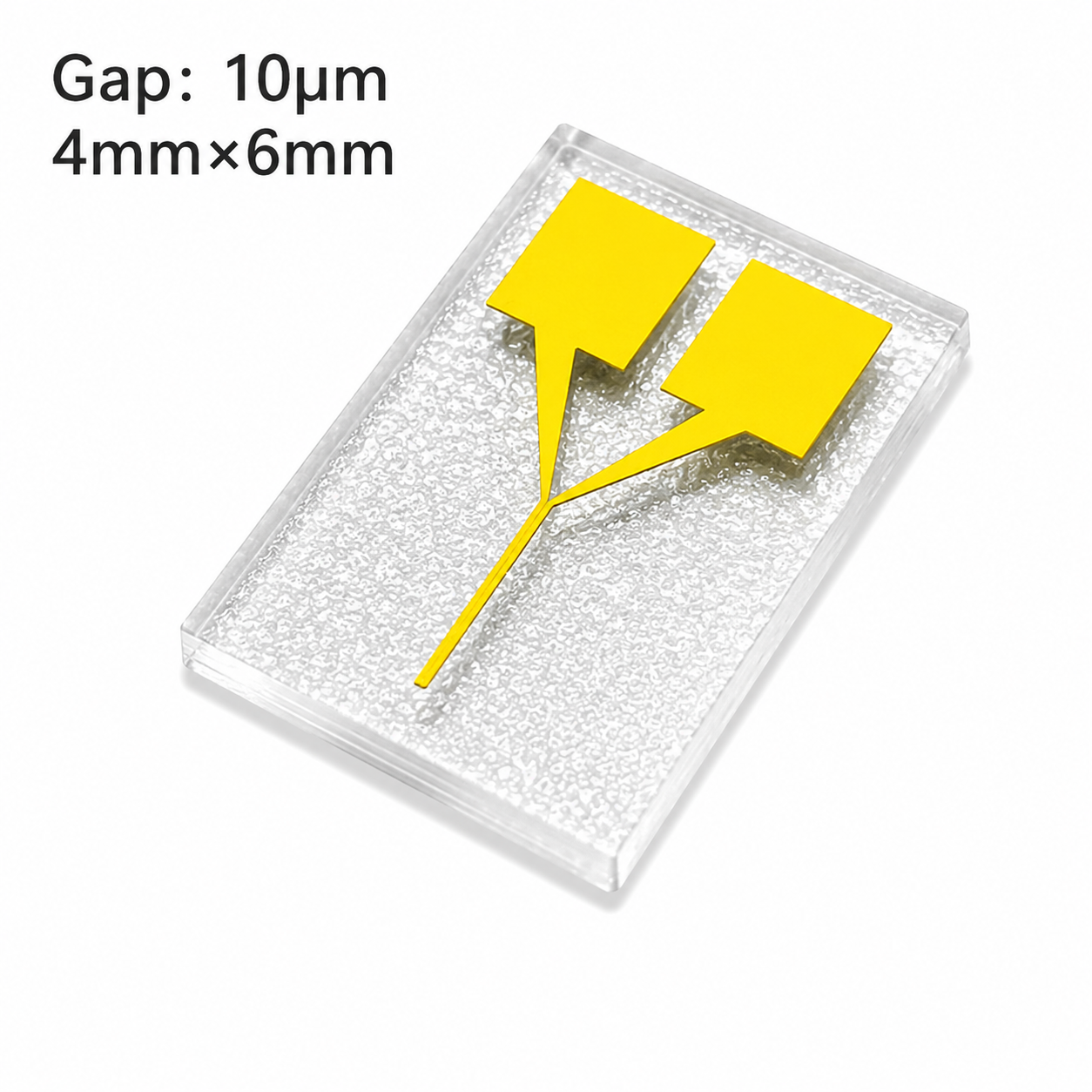

    10 micron single channel interdigitated electrode on quartz glass for gas biosensing and photoelectric detection

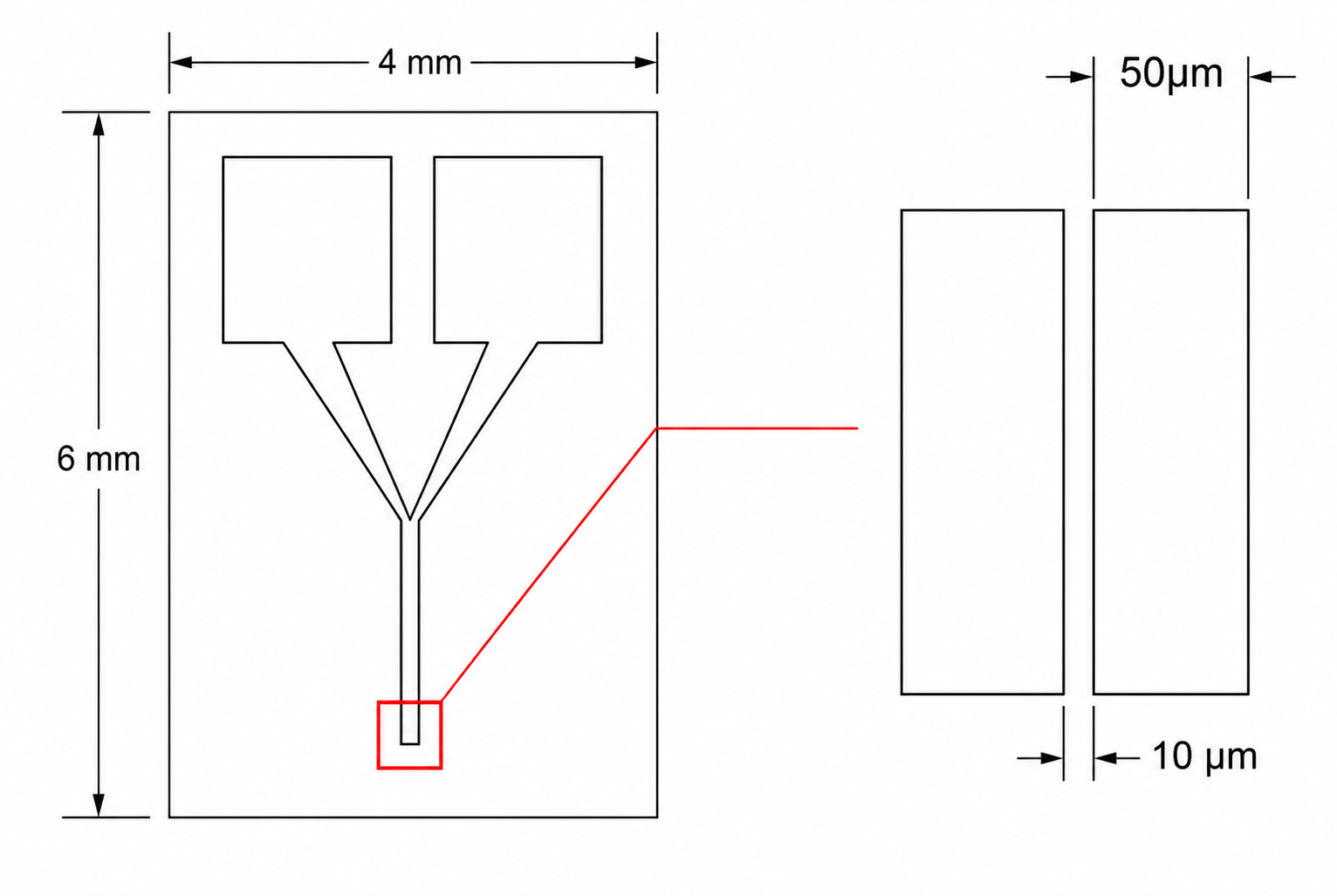

    transparent quartz glass single channel IDE electrode for optical gas and biological photoelectric sensing
    Single-Channel IDE Structure
    • Electrode gap: 10μm
    • Single-channel interdigitated design
    • Overall size: 4mm × 6mm × 0.50mm
    • Suitable for compact sensor chip integration
    Transparent Quartz Glass Substrate
    • Double-side polished quartz glass
    • Fully transparent substrate
    • Excellent optical compatibility
    • Suitable for optical and photoelectric detection
    Ti/Au Metal Layer
    • Metal layer structure: Ti/Au
    • Ti thickness: 30nm
    • Au thickness: 100nm
    • Stable conductive performance
    Wide Operating Temperature
    • Operating temperature: -150°C to 500°C
    • Excellent thermal stability
    • Reliable sensing performance
    • Suitable for demanding laboratory environments
    Typical Applications
    • Optical gas sensing
    • Biological sensing applications
    • Photoelectric detection
    • Chemical and physical sensors
    • Medical sensor research
    ItemSpecification
    Product Name10μm Single-Channel Interdigitated Electrode on Quartz Glass
    Electrode Gap10μm
    Overall Size4mm × 6mm × 0.50mm
    SubstrateDouble-side polished transparent quartz glass
    Metal Layer StructureTi/Au
    Metal Layer ThicknessTi 30nm / Au 100nm
    Operating Temperature-150°C to 500°C
    Product Advantages
    This 10μm single-channel interdigitated electrode combines a transparent quartz glass substrate, Ti/Au conductive layer system, and compact high-precision sensing structure. It is suitable for optical gas sensing, biosensing, photoelectric detection, chemical, physical, and medical sensor applications requiring reliable performance and stable quality.
    Precautions
    • Handle carefully to avoid scratching the electrode surface.
    • Avoid mechanical impact or excessive force on the quartz glass substrate.
    • Clean gently with suitable laboratory-grade solvents before use.
    • Store in a clean, dry, and dust-free environment.
    • Custom electrode dimensions and patterns are available upon request.
