    Potentiolab • Transparent Interdigitated Electrode

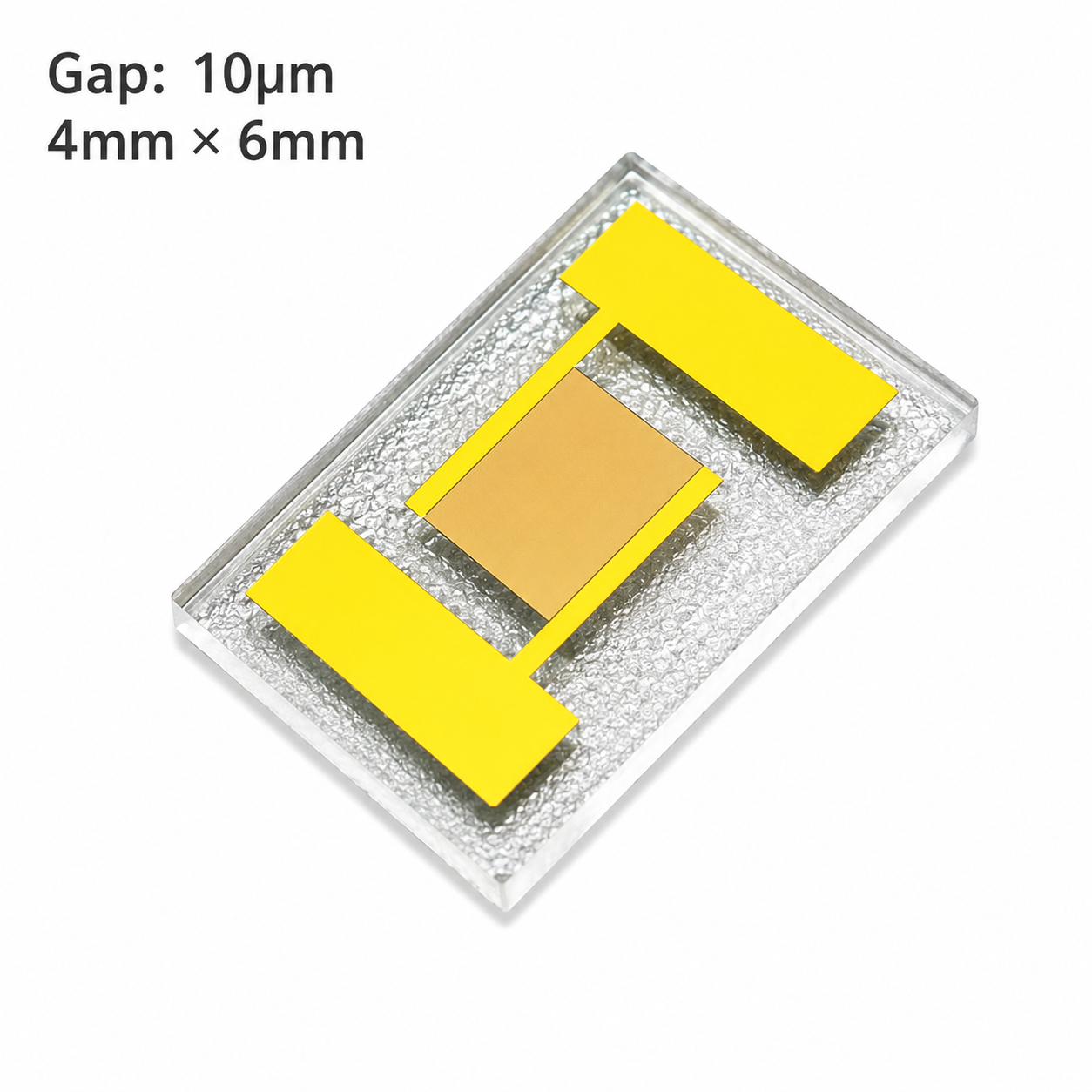

    10μm Transparent Interdigitated Electrode on Quartz Glass

    High-precision 10μm transparent interdigitated electrode on quartz glass designed for MEMS gas, photoelectric, biological, chemical, physical, and medical sensor applications.

    10μm IDE PatternQuartz Glass

    MEMS Sensor Chip

    10 micron transparent interdigitated electrode on quartz glass for gas biomedical and photoelectric MEMS detection
    transparent quartz glass IDE electrode for gas biomedical and photoelectric sensing applications
    High-Precision IDE Structure

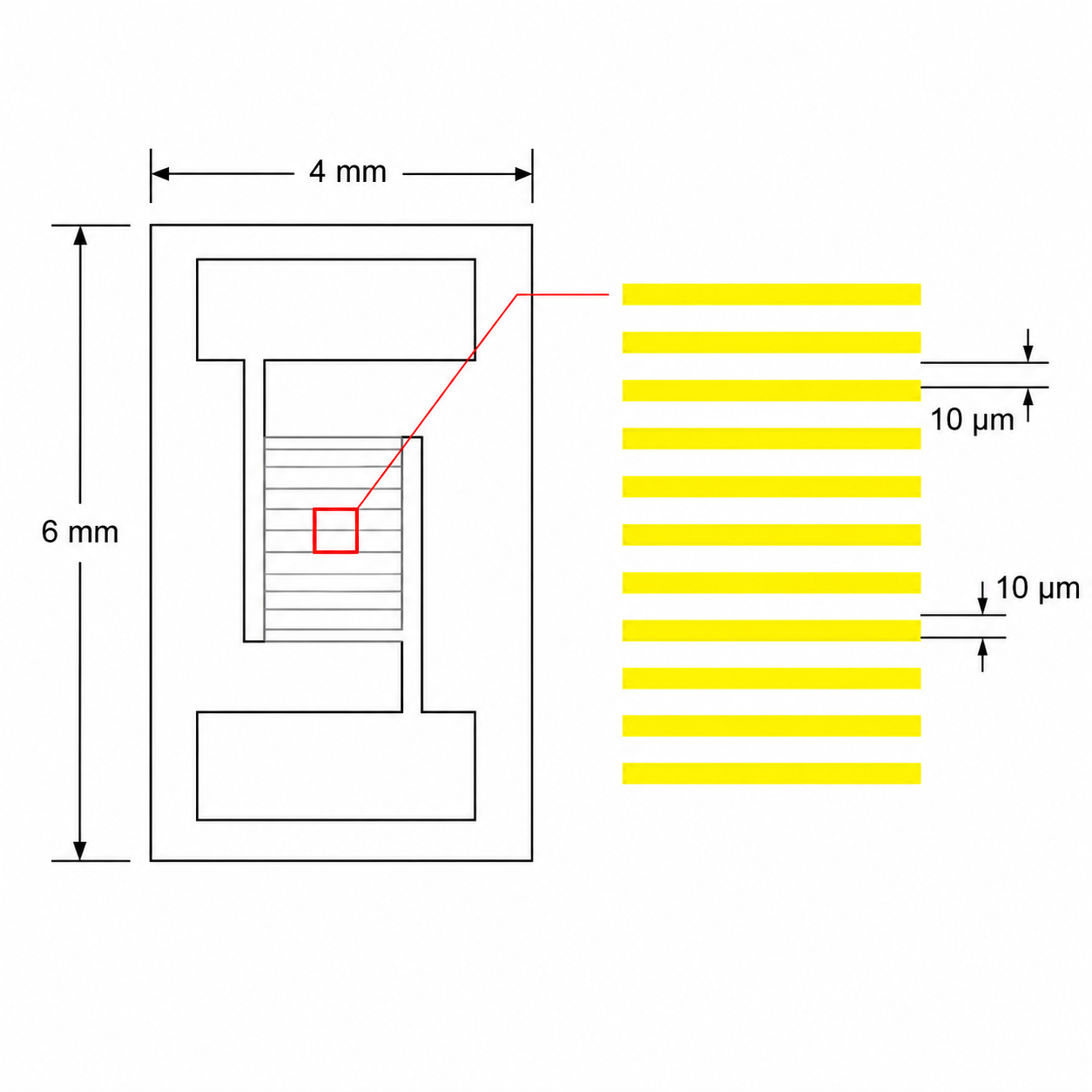

    • Line width: 10μm
    • Line spacing: 10μm
    • Finger length: 1.5mm
    • 50 pairs / 100 fingers
    Transparent Quartz Glass Substrate
    • Double-side polished quartz glass
    • Fully transparent substrate
    • Excellent optical compatibility
    • Suitable for MEMS sensor integration
    Ti/Au Metal Layer
    • Metal layer structure: Ti/Au
    • Ti thickness: 30nm
    • Au thickness: 100nm
    • Stable conductive performance
    Wide Operating Temperature
    • Operating temperature: -150°C to 500°C
    • Excellent thermal stability
    • Reliable sensing performance
    • Suitable for harsh laboratory environments
    Typical Applications
    • MEMS gas sensors
    • Photoelectric sensing systems
    • Biological sensing applications
    • Chemical and physical sensors
    • Medical sensor research
    ItemSpecification
    Product Name10μm Transparent Interdigitated Electrode on Quartz Glass
    Overall Size4mm × 6mm × 0.7mm
    Line Width10μm
    Line Spacing10μm
    Finger Length1.5mm
    Interdigitated Pairs50 pairs / 100 fingers
    SubstrateDouble-side polished transparent quartz glass
    Metal Layer StructureTi/Au
    Metal Layer ThicknessTi 30nm / Au 100nm
    Operating Temperature-150°C to 500°C
    Product Advantages
    This high-precision transparent interdigitated electrode combines a 10μm IDE structure, double-side polished quartz glass substrate, and Ti/Au conductive layer system. It is suitable for MEMS gas, photoelectric, biological, chemical, physical, and medical sensing applications requiring reliable performance and stable quality.
    Precautions
    • Handle carefully to avoid scratching the electrode surface.
    • Avoid mechanical impact or excessive force on the quartz glass substrate.
    • Clean gently with suitable laboratory-grade solvents before use.
    • Store in a clean, dry, and dust-free environment.
    • Custom electrode dimensions and patterns are available upon request.
