LSC1 100 μm Large-Size Ceramic Interdigitated Electrode Capacitive Array Sensor Chip for Gas, Humidity and Biosensing (10 × 20 mm)

Size

Default

This product is currently out of stock and unavailable.

Add to wishlist
SKU: LSC1 Category:
Description

Potentiolab • Ceramic Interdigitated Electrode

100 μm Large-Size Ceramic Interdigitated Electrode Capacitive Array Sensor Chip for Gas, Humidity & Biosensors

High-performance 100 μm ceramic interdigitated electrode (IDE) sensor chip
designed for gas sensing, humidity detection, biosensors, MEMS research,
electrochemical analysis, and capacitive sensing applications.
The large-size ceramic substrate and enlarged bonding pads provide easier experimental operation,
stable electrical performance, and reliable high-temperature resistance.


Ceramic IDE


Gas & Humidity Sensor


Capacitive Array

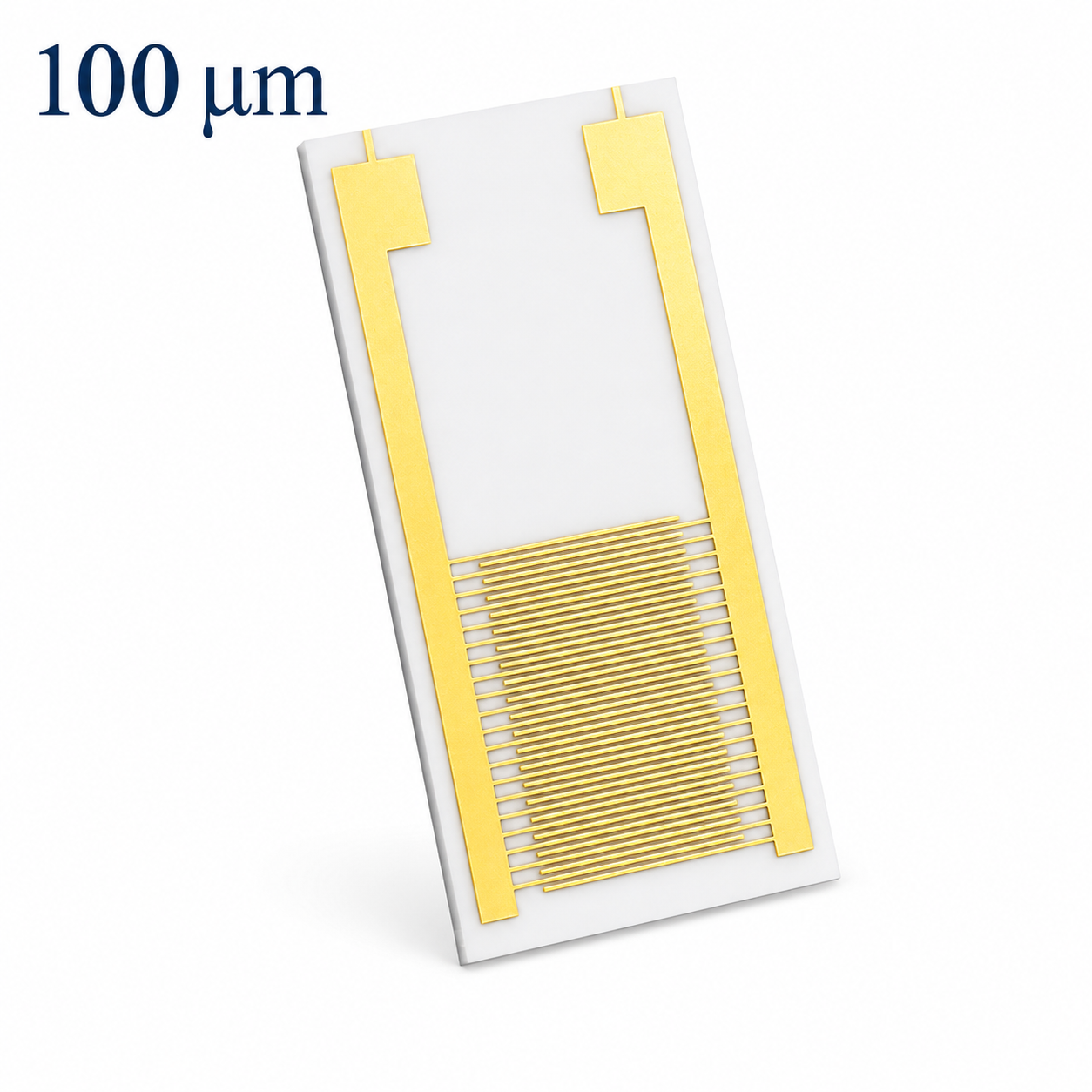

100 μm large-size ceramic interdigitated electrode sensor chip

Ceramic Substrate Structure
  • Alumina ceramic substrate
  • Excellent thermal stability
  • Reliable insulation performance
  • Suitable for high-temperature sensor applications
Large-Size IDE Design
  • Large sensor size for easy handling
  • Large bonding pads for convenient wiring
  • Improved observation during experiments
  • Stable capacitive sensing performance

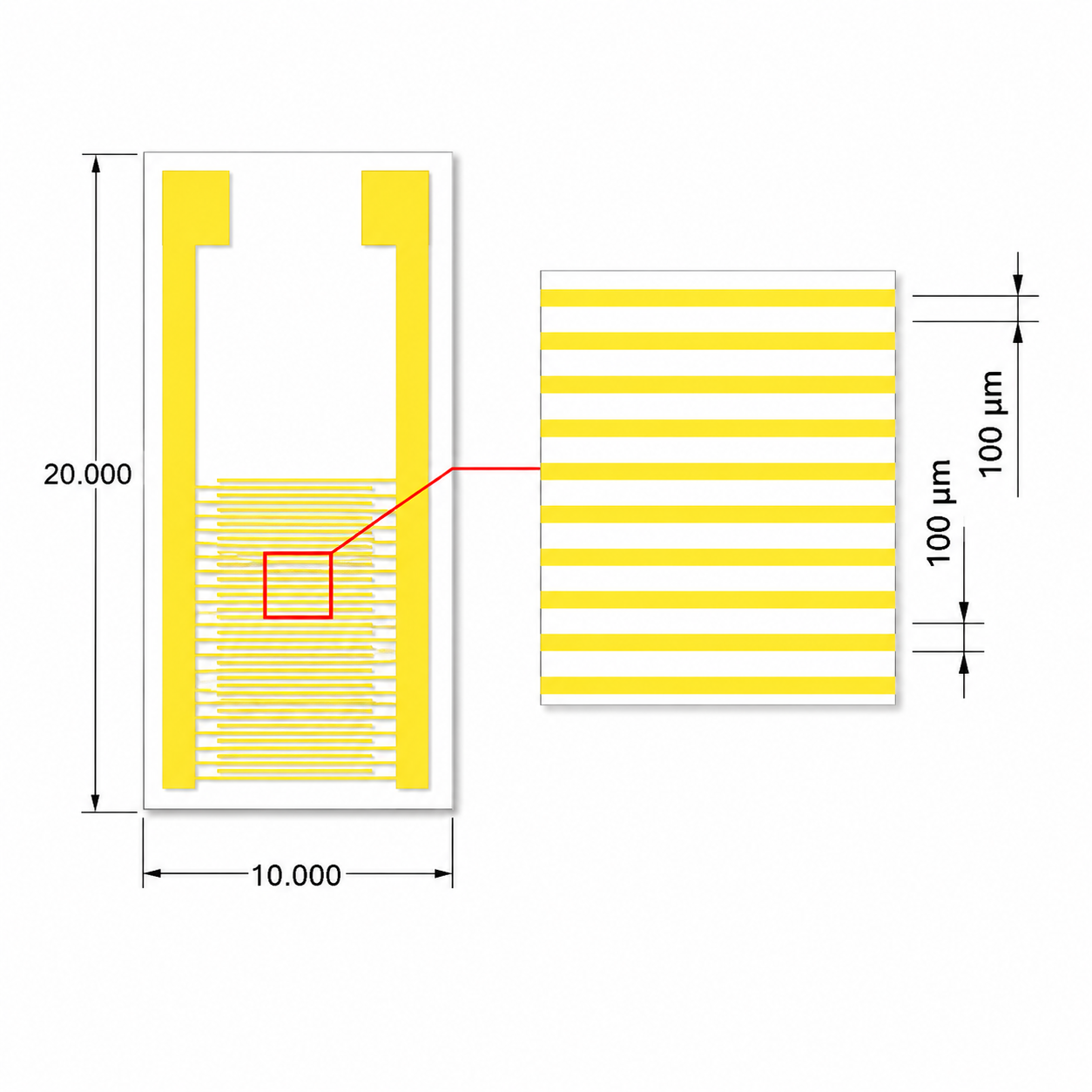

Substrate MaterialAlumina Ceramic
Chip Size20 mm × 10 mm
Line Width100 μm
Line Spacing100 μm
Finger Length6.3 mm
Interdigitated Pairs20 Pairs (40 Fingers)
Metal Layer StructureTi / Cu / Ni / Au
Metal Thickness0.1 μm / 5 μm / 4 μm / 1 μm
Operating Temperature-150°C ~ 350°C

Typical Applications
  • Gas sensor development
  • Humidity sensing research
  • Biosensor and MEMS applications
  • Capacitive sensing experiments
  • Electrochemical and materials research

The large-size ceramic interdigitated electrode chip provides excellent thermal stability,
reliable electrical insulation, and stable sensing performance.
The enlarged electrode pads and ceramic substrate design make the chip easier to operate,
connect, and observe during laboratory experiments and sensor testing applications.

Note: Custom dimensions, electrode spacing, and metal layer structures are available upon request.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “LSC1 100 μm Large-Size Ceramic Interdigitated Electrode Capacitive Array Sensor Chip for Gas, Humidity and Biosensing (10 × 20 mm)”

Your email address will not be published. Required fields are marked *

Shipping and Delivery

Worldwide Shipping

Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.

Rates, Support & Orders

Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.

Related products

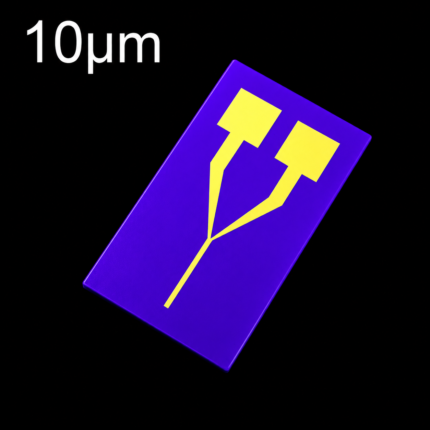

MSI1 Micro-Capacitive Single-Channel Interdigitated Electrode for MEMS Optical, Gas, Biosensor and Photoelectric Detection Applications
