PDO1 Disc Electrodes – Multiple Materials Available
Price range: $4.00 through $333.00
The PDO1 Disc Electrode series is available in a wide range of materials and diameters for electrochemical research and materials characterization. Standard options include platinum, gold, silver, titanium, nickel, copper, stainless steel, palladium, cobalt, niobium, zinc, magnesium, aluminum, tin, iron, and glass, with disc diameters ranging from 0.5 mm to 6 mm. Custom materials, dimensions, and electrode configurations are available upon request for CV, LSV, EIS, corrosion testing, electrocatalysis, battery research, and analytical electrochemistry.
| Size |
0.5 mm Platinum Disc Electrode ,1 mm Platinum Disc Electrode ,2 mm Platinum Disc Electrode ,3 mm Aluminum Disc Electrode ,3 mm Cobalt Disc Electrode ,3 mm Copper Disc Electrode ,3 mm Glass Disc Electrode ,3 mm Gold Plate Electrode ,3 mm Iron Plate Electrode ,3 mm Magnesium Disc Electrode ,3 mm Nickel Disc Electrode ,3 mm Niobium Disc Electrode ,3 mm Palladium Electrode (Minimum Order 5) ,3 mm Platinum Disc Electrode ,3 mm Silver Plate Electrode ,3 mm Stainless Steel Disc Electrode ,3 mm Tin Plate Electrode ,3 mm Titanium Disc Electrode ,3 mm Zinc Disc Electrode ,4 mm Platinum Disc Electrode ,5 mm Platinum Disc Electrode ,6 mm Platinum Disc Electrode ,Custom Sizes Available |
|---|
“`html
PDO1 Metal & Specialty Disc Electrodes – Custom Sizes Available
Product Overview

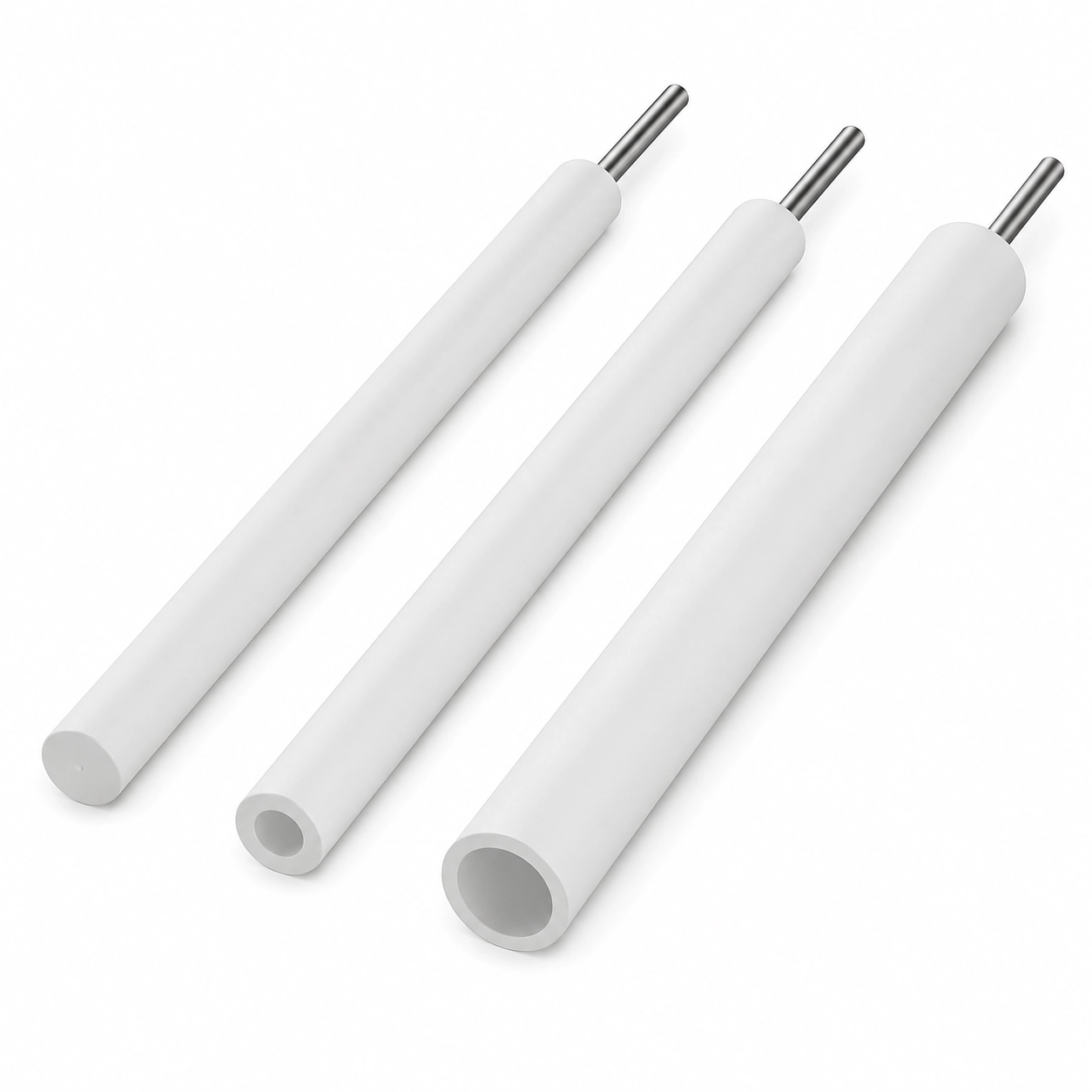

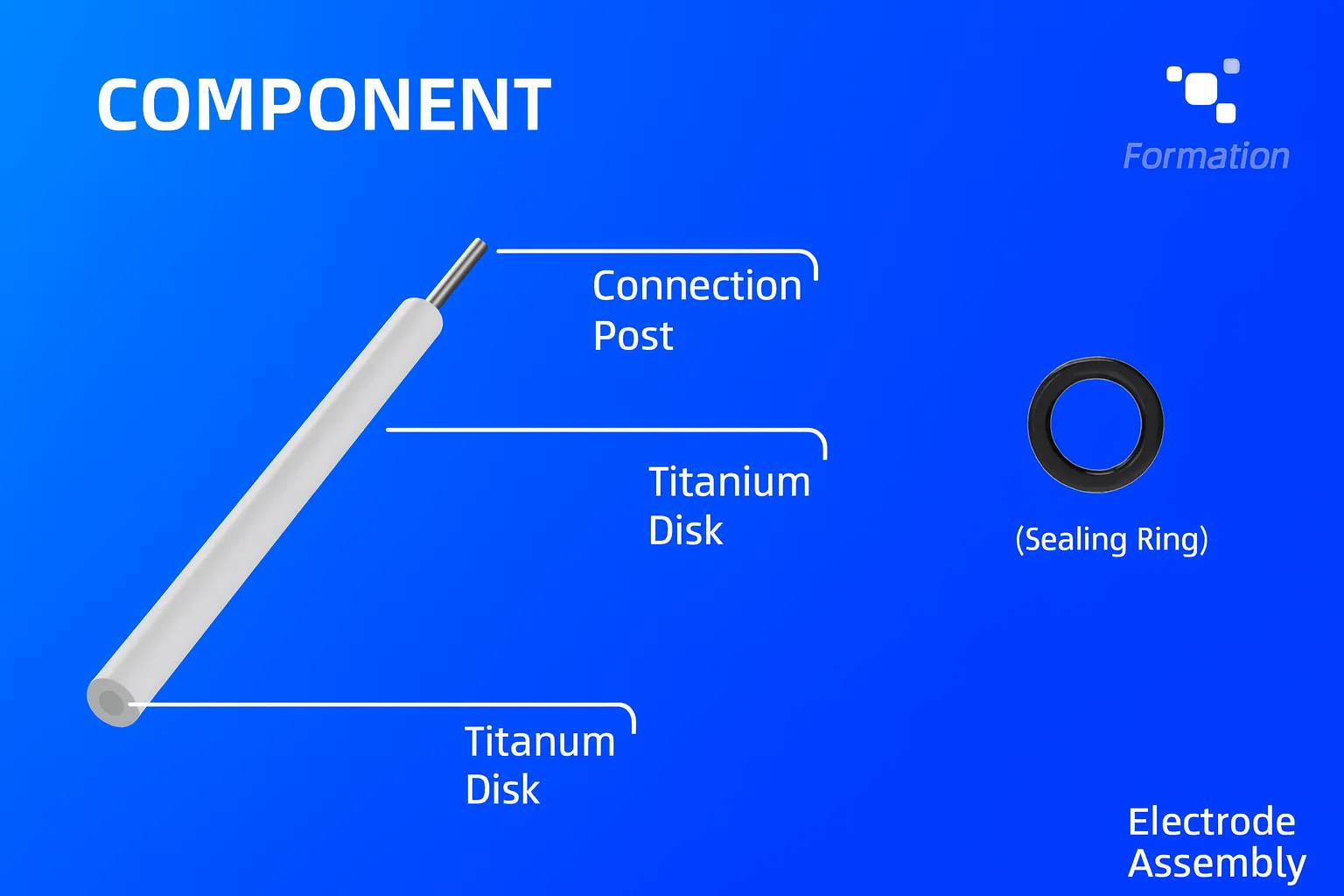

The PDO1 Disc Electrode Series is available in a wide range of metallic and specialty materials for electrochemical research, analytical chemistry, corrosion studies, electrocatalysis, battery testing, and materials characterization. The precision-machined disc is embedded within a chemically resistant PTFE body, providing excellent insulation, mechanical stability, and reproducible electrochemical performance.
Available materials include Platinum, Gold, Silver, Palladium, Titanium, Nickel, Copper, Stainless Steel, Aluminum, Cobalt, Niobium, Zinc, Tin, Iron, Magnesium, Glass, and other custom materials. Standard disc diameters range from 0.5 mm to 6 mm, with custom sizes available upon request.
Key Features
- Multiple disc materials available for diverse electrochemical applications
- Precision-machined disc geometry for reproducible measurements
- Chemically resistant PTFE housing with excellent insulation properties
- Standard diameters from 0.5 mm to 6 mm
- Excellent corrosion resistance and long service life
- Custom materials, dimensions, and configurations available
PTFE Housing Advantages
- Ultra-low surface energy and non-stick characteristics
- Continuous operating temperature range of 200–260 °C
- Excellent chemical resistance against acids, bases, and solvents
- Outstanding weatherability and long-term durability
- Very low friction coefficient (~0.04)
- Excellent electrical insulation properties
- Suitable for demanding electrochemical environments
Typical Applications
- Cyclic Voltammetry (CV)
- Linear Sweep Voltammetry (LSV)
- Electrochemical Impedance Spectroscopy (EIS)
- Electrocatalysis Research
- Corrosion Testing
- Battery and Energy Storage Research
- Sensor Development
- Electrodeposition Studies
- Materials Characterization
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | PDO1 Metal & Specialty Disc Electrodes |
| Disc Materials | Platinum, Gold, Silver, Palladium, Titanium, Nickel, Copper, Stainless Steel, Aluminum, Cobalt, Niobium, Zinc, Tin, Iron, Magnesium, Glass, and Other Custom Materials |
| Housing Material | PTFE (Polytetrafluoroethylene) |
| Electrode Configuration | Disc-Type Working Electrode |
| Standard Disc Diameters | 0.5 mm / 1 mm / 2 mm / 3 mm / 4 mm / 5 mm / 6 mm |
| Electrolyte Compatibility | Acidic / Neutral / Alkaline Systems |
| Typical Applications | CV, LSV, EIS, Electrocatalysis, Corrosion Testing, Battery Research, Sensor Development, Electrodeposition, Materials Characterization |
| Customization | Disc Material, Disc Diameter, PTFE Holder Dimensions, Electrical Connection, and Special Configurations |
“`
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
