MS-1 H-Type Micro Sealed Electrolytic Cell with Replaceable Membrane
Price range: $2.00 through $400.00
Compact H-type sealed electrolytic cell with replaceable membrane, dual chambers (5ml each), and full electrode/gas port setup for micro-scale electrochemical experiments.
| Size |
Customization Available – Contact Us ,DuPont Nafion™ N117 Membrane (10 × 10 cm) ,Graphite Rod Electrode (Ø6 × 60 mm) ,H-Type Electrolytic Cell (5ml–5ml Chambers) ,Mercury Oxide Electrode (Hg/HgO) ,PEEK Electrode Clamp (for 6mm rods) ,Platinum Sheet Electrode (10 × 10 × 0.1 mm) ,Platinum Wire Electrode (Ø0.5 × 37 mm) ,Saturated Calomel Electrode (SCE) ,Silver/Silver Chloride Electrode (Ag/AgCl) |
|---|

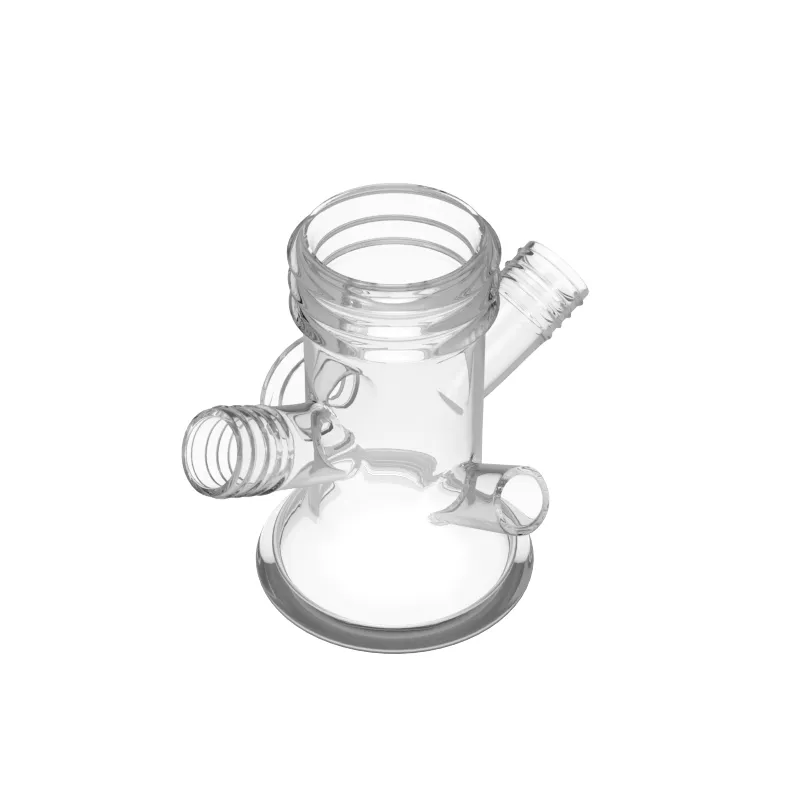

H-Type Micro Sealed Electrolytic Cell with Replaceable Membrane
Featuring PTFE sealing and replaceable membrane functionality, it is fully compatible with three-electrode setups and gas input systems.
Technical Specifications
Port Configuration
- Left Side: 1× Working Electrode Port, 1× Reference Electrode Port, 2× Gas Ports
- Right Side: 1× Counter Electrode Port, 2× Gas Ports
- Electrode Port Diameter: 6.5mm (for 6mm electrodes)
- Gas Port Diameter: 3.2mm (for 3mm tubing)
Included Accessories
- H-Type Cell Body × 2 (Left + Right)
- Stainless Steel Clamps × 2
- PTFE Covers × 7 (Left: 4 pcs / Right: 3 pcs)
- Sealing Screws (varied types)
- Sealing Gaskets (assorted)
- 3m Flexible Gas Tubing
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
