EFI1 End-Face In-Situ Raman Testing Cell with Sealing Ring - Observation Fixture

EFI1 End-Face In-Situ Raman Testing Cell with Sealing Ring - Observation Fixture - Image 3

EFI1 End-Face In-Situ Raman Testing Cell with Sealing Ring – Observation Fixture

$415.00

Size	End face Raman complete set

Add to wishlist

SKU: EFI1 Category: Solid-State Battery Molds

Description

Potentiolab • In-situ Raman Observation Fixtures

End-Face In-situ Raman Testing Cell with Sealing Ring

A end-face in-situ Raman testing cell designed for laboratory observation and spectroscopic analysis.
Equipped with a quartz observation window and sealing-ring structure, this fixture provides excellent optical transmission,
chemical resistance, and electrical insulation, making it suitable for in-situ Raman studies under room-temperature conditions.

In-situ Raman
Quartz Window
Customizable ID

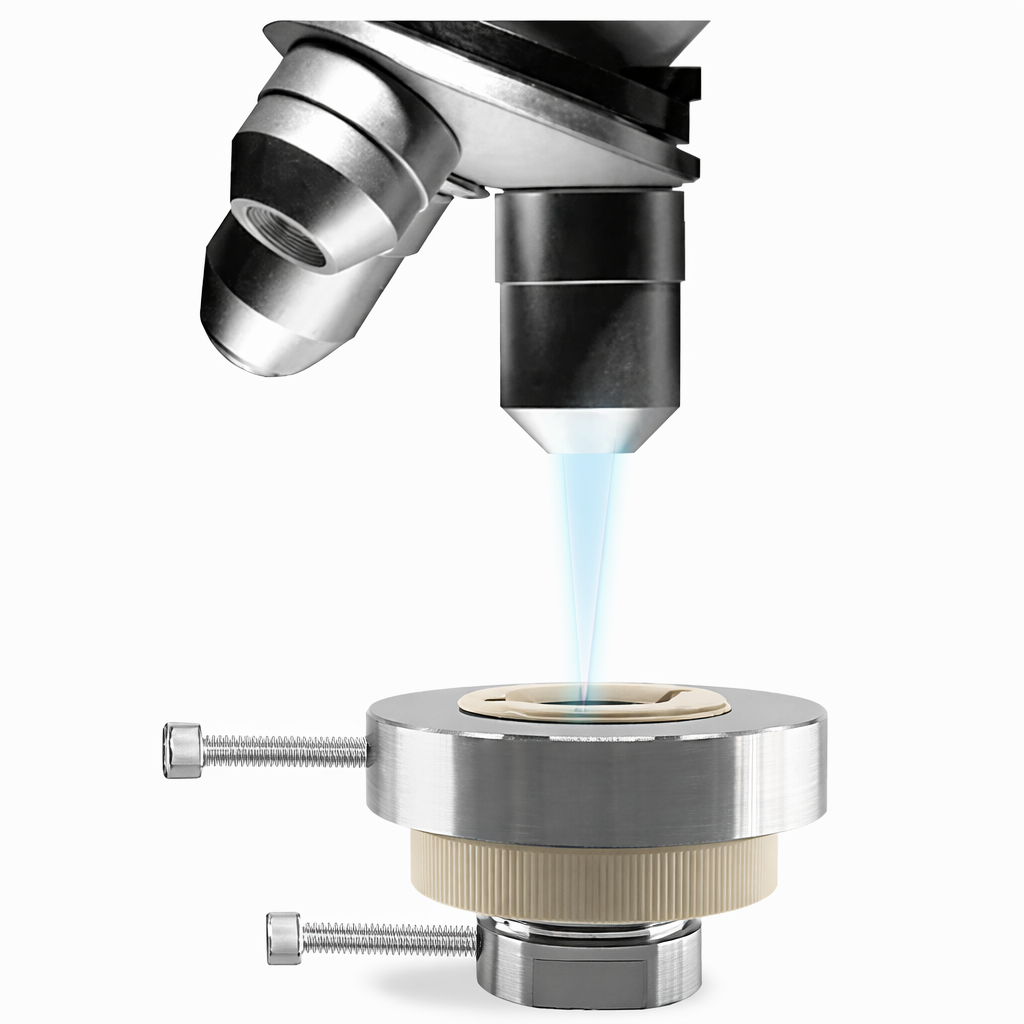

End-face in-situ Raman testing cell with sealing ring main view

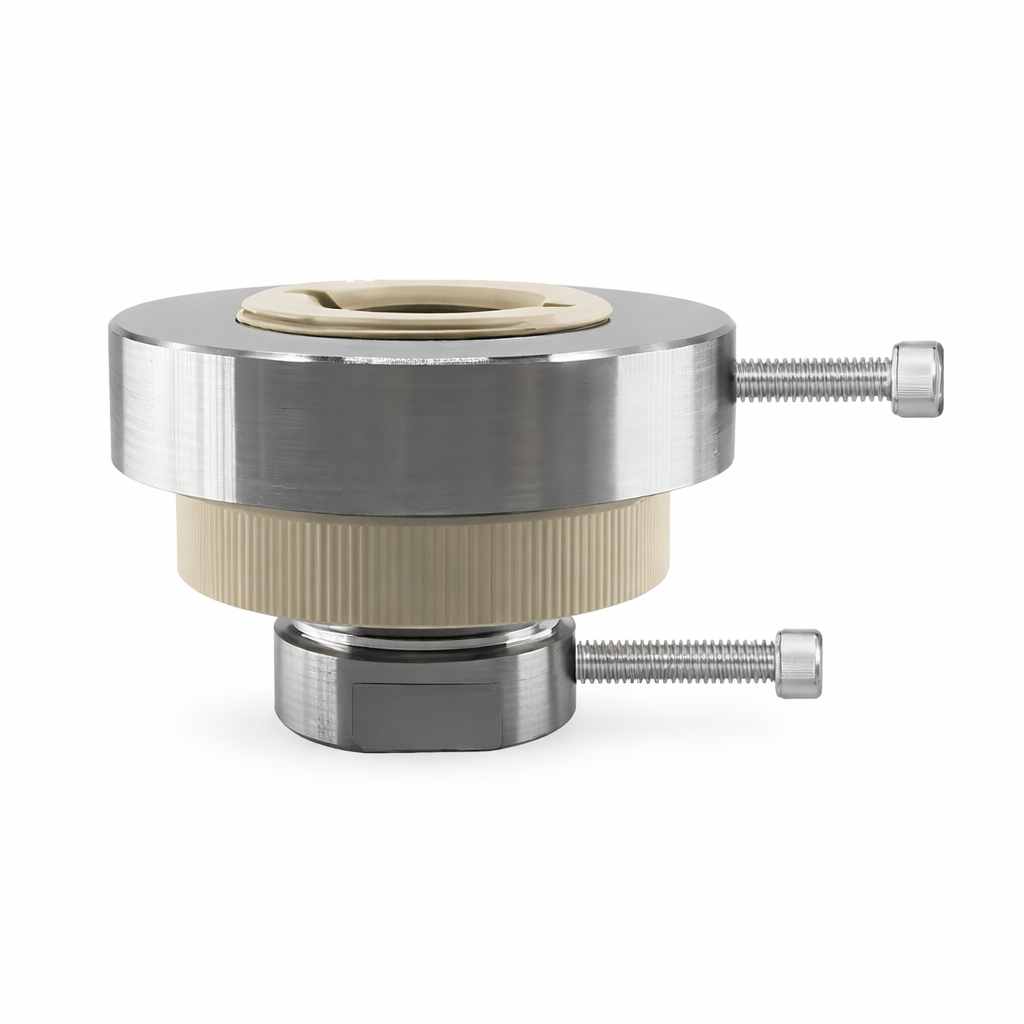

In-situ Raman testing fixture structural details

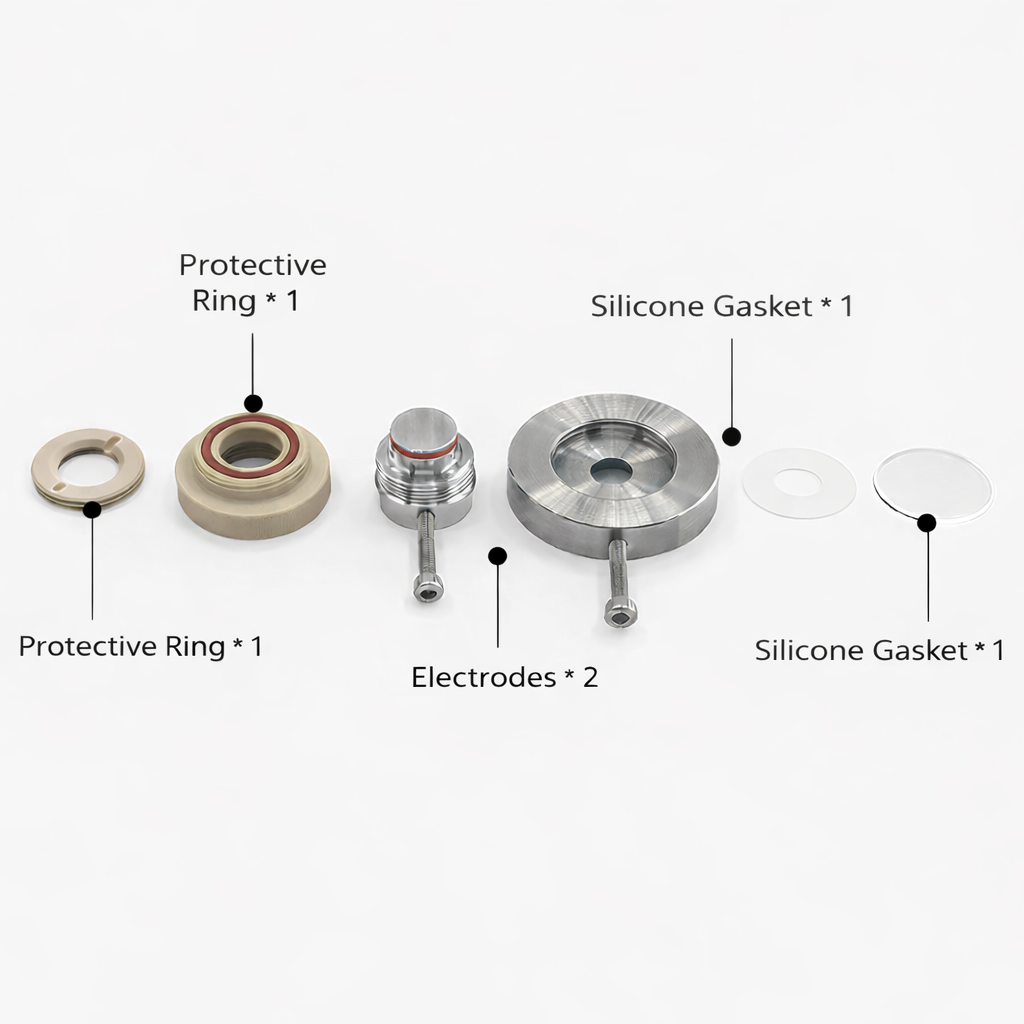

End-face in-situ Raman cell additional view

Key Features

High-temperature resistance and strong acid resistance
Excellent thermal stability and electrical insulation
Suitable for in-situ Raman observation and laboratory analysis
Sealing-ring design helps improve fixture stability
Customizable inner diameter for different experimental needs

Optical & Material Properties

UV Transmission: Excellent transmission of short-wave ultraviolet light
Visible Light Transmission: High transparency, transmittance above 93%
Infrared Transmission: Good infrared transmission performance
Corrosion Resistance: Excellent chemical durability
Water Resistance: Good water resistance and optical uniformity

Product Name	End-Face Raman Testing Mold

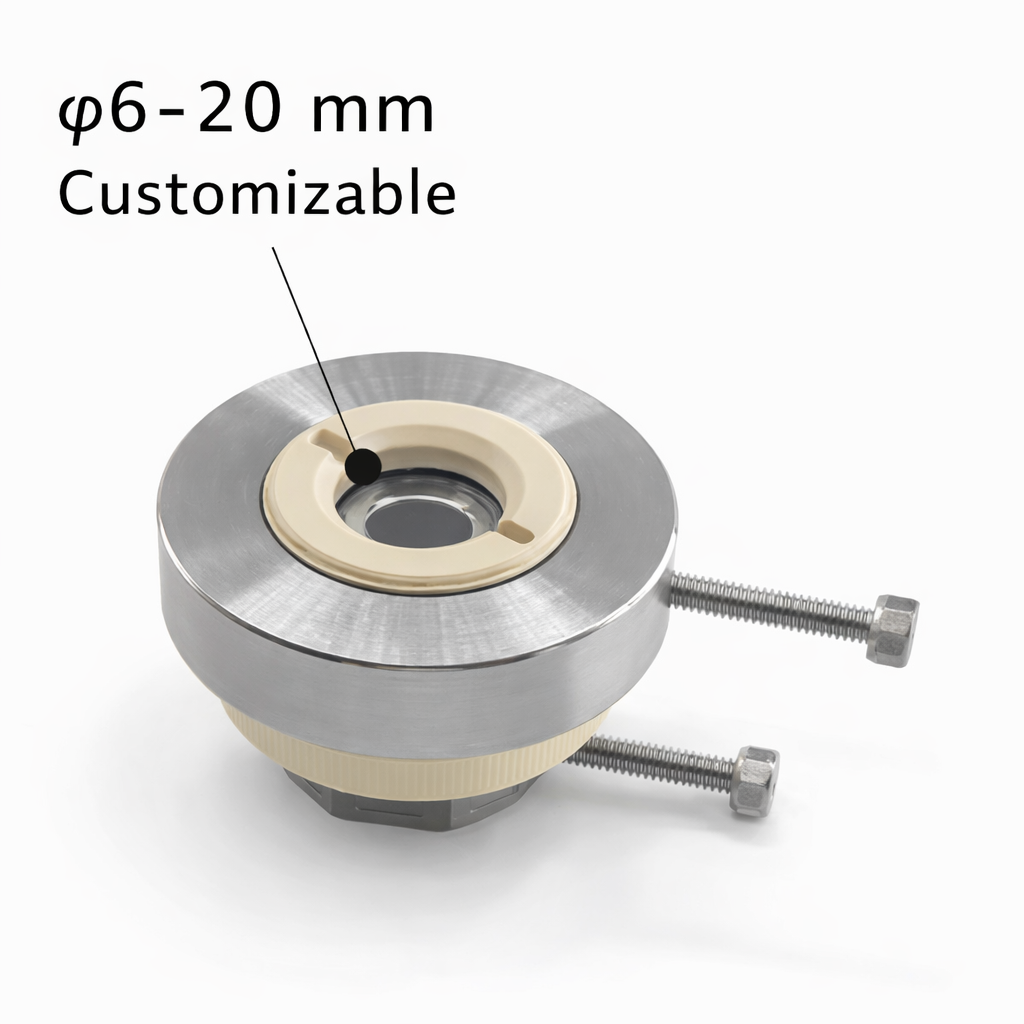

Inner Diameter	φ6–20 mm (customizable)

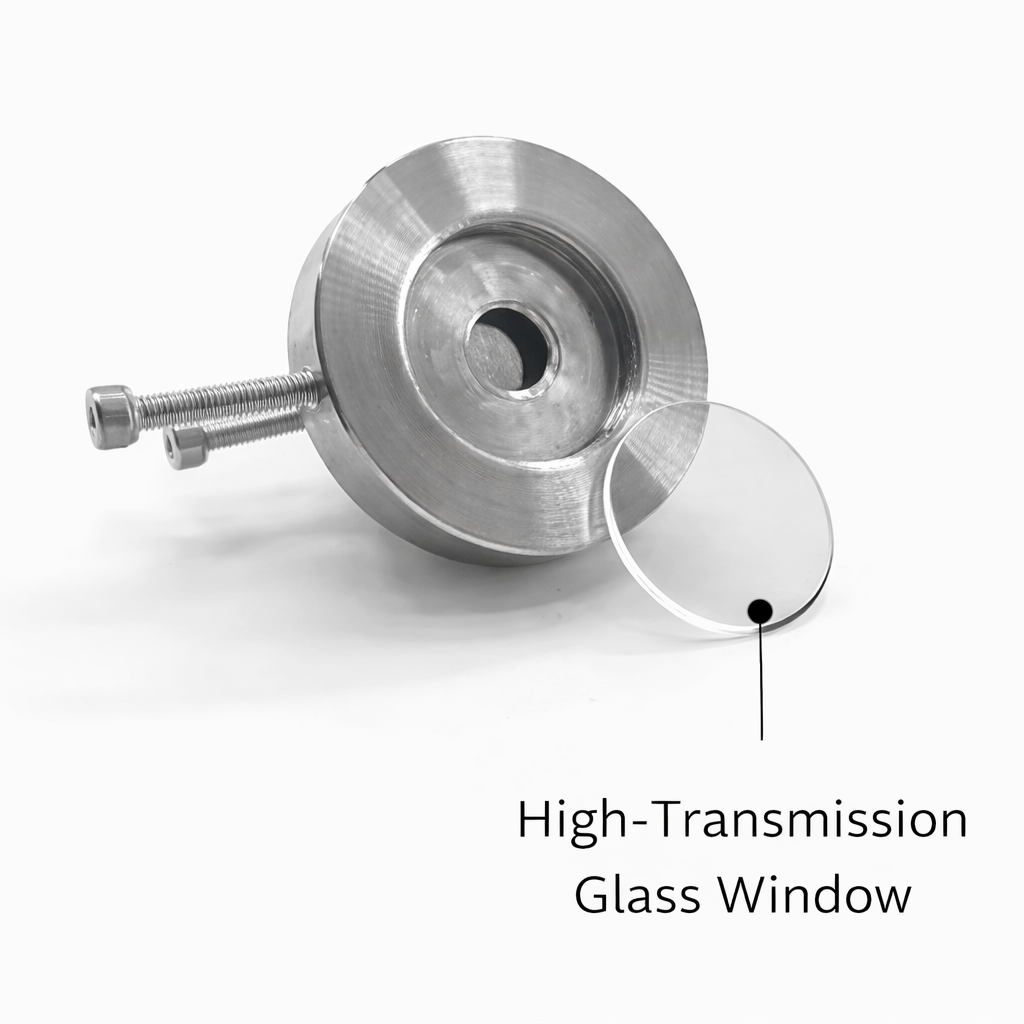

Window Material	Quartz Window
Body Material	No. 4 Steel, PA
Maximum Working Pressure	0 MPa
Operating Condition	For use under room-temperature conditions

This end-face in-situ Raman testing cell combines optical clarity with structural stability for observation-based electrochemical and material studies.
The quartz window offers excellent transmission across ultraviolet, visible, and infrared ranges, while also providing good corrosion resistance,
water resistance, and optical uniformity. It is suitable for researchers who require a reliable fixture for in-situ Raman analysis, interface observation,
and room-temperature laboratory experiments.

Note: The inner diameter is customizable from φ6 mm to φ20 mm according to experimental requirements. Please contact us for detailed configuration options.
