SSH-1 Sample Support Holder – Standard 1 cm² / Custom Reaction Area
Price range: $8.00 through $312.00
The Sample Support Holder is designed for mounting flat samples in electrochemical cells and defining a controlled exposed area. Manufactured from PTFE, it accommodates samples 0.1–2 mm thick and 12–14.5 mm in diameter, with a standard exposure area of 1 cm².
| Size |
5 Matching Sealing Rings ,Customizable Reaction Area ,Sample Support – Standard 1 cm² |
|---|

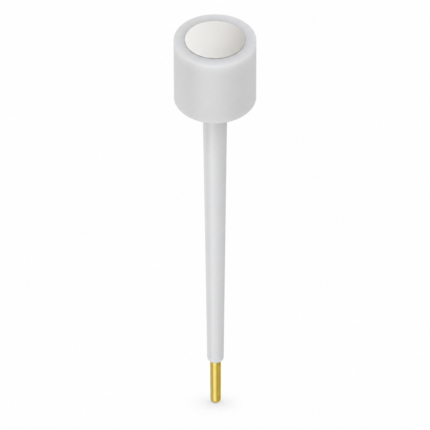

Sample Support Holder – PTFE Construction – 1 cm² Standard Exposure Area
Product Overview
The Sample Support Holder is designed for mounting flat sample materials in electrochemical cells and laboratory test systems. The holder mechanically secures conductive or non-conductive specimens while defining a controlled exposed surface area for electrochemical measurements and chemical analysis.
The standard configuration accommodates samples with a thickness range of 0.1–2 mm and a diameter range of 12–14.5 mm. A standard exposed reaction area of 1 cm² is provided for reproducible electrode area definition during testing.
The holder body is manufactured from PTFE (Polytetrafluoroethylene), which provides electrical insulation between the sample and cell hardware while maintaining compatibility with acidic, alkaline, and solvent-based electrolytes.
Key Features
- Designed for mounting flat samples in electrochemical cells and corrosion testing systems
- Compatible with sample thicknesses from 0.1 mm to 2 mm
- Compatible with sample diameters from 12 mm to 14.5 mm
- Standard exposed reaction area: 1 cm²
- PTFE body provides electrical insulation and chemical compatibility with common laboratory electrolytes
- Controlled exposure area for reproducible electrochemical measurements
- Custom reaction areas, sample dimensions, and holder configurations available
Typical Applications
- Cyclic Voltammetry (CV)
- Electrochemical Impedance Spectroscopy (EIS)
- Corrosion testing
- Electrocatalysis
- Battery research
- Fuel cell research
- Sensor development
- Material characterization
Specifications
| Parameter | Details |
|---|---|
| Product Name | Sample Support Holder |
| Component Type | Sample mounting holder for electrochemical cells |
| Housing Material | PTFE (Polytetrafluoroethylene) |
| Sample Thickness Range | 0.1–2 mm |
| Sample Diameter Range | 12–14.5 mm |
| Standard Exposure Area | 1 cm² |
| Exposure Area Definition | Mechanical masking of the sample surface |
| Electrode Function | Supports preparation of a defined working electrode surface area |
| Custom Options | Exposure area, sample diameter range, sample thickness range, holder geometry |
| Typical Applications | CV, EIS, corrosion testing, electrocatalysis, battery research, fuel cell research, sensor development, material characterization |
Ordering Information
- Custom exposure areas available
- Custom holder dimensions available
- Suitable for research laboratories, universities, and industrial testing
- OEM and custom designs supported
- Worldwide shipping available
