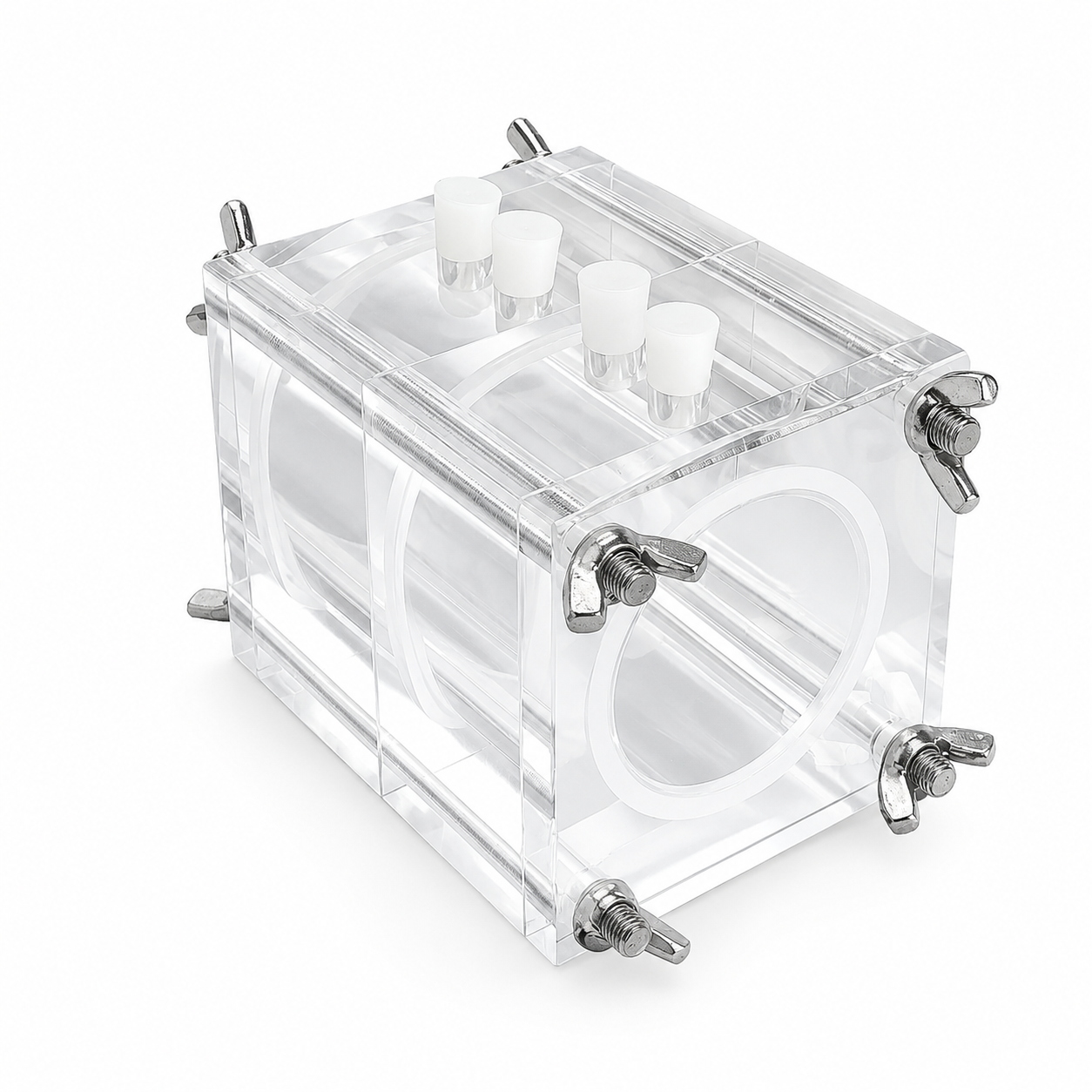

MFC-1 Acrylic Microbial Fuel Cell with Ion Exchange Membrane
Price range: $2.00 through $417.00
Modular H-type electrochemical cell system for ion exchange, microbial fuel cells, and membrane studies. Multiple volumes, materials, and configurations available.
| Size |
100ml (50ml per chamber) ,100ml (50ml per chamber) with Side Quartz Window ,100ml Quartz Plate ,118ml Sealing Ring ,118ml Side Perforated Plate ,14ml (7ml per chamber) ,14ml Sealing Ring ,14ml Side Perforated Plate ,236ml (118ml per chamber) ,236ml (118ml per chamber) with Side Quartz Window ,28ml (14ml per chamber) ,28ml Sealing Ring ,28ml Side Perforated Plate ,50ml Quartz Plate ,50ml Sealing Ring ,50ml Side Perforated Plate ,56ml (28ml per chamber) ,56ml total (14ml per chamber) ,7ml Sealing Ring ,7ml Side Perforated Plate ,Autoclavable ,Custom Consulting Service ,Dual-Chamber Electrolytic Cell ,Four-Chamber Electrolytic Cell ,PC Material ,Quick-Connect Plate with Side Port ,Quick-Connect Version ,Side Quartz Window ,Special Interface for Silver Electrodes ,Special Silicone Plugs for 10mm Ports (Pack of 5) ,Special Silicone Plugs for 8mm Ports (Pack of 5) ,Special White Connector for Water Tubing |
|---|

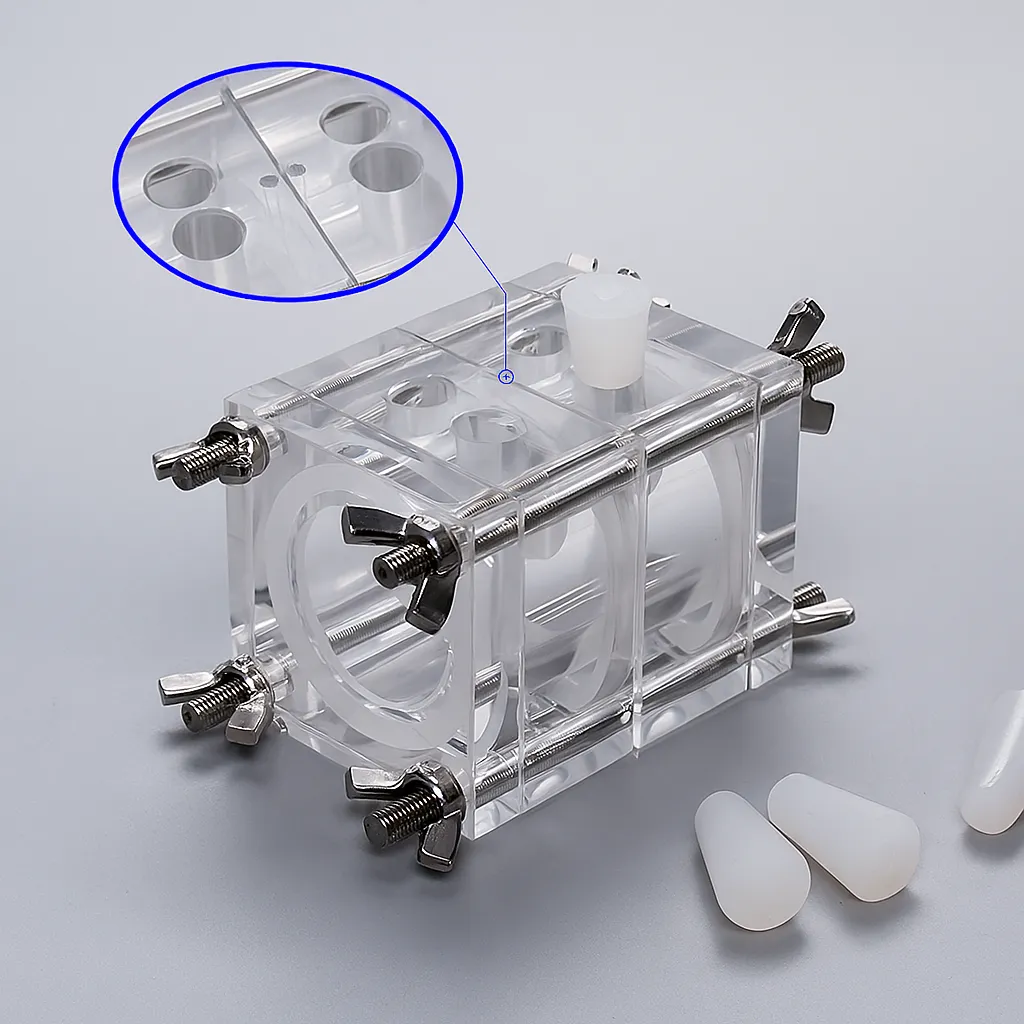

MFC-1 Modular H-Type Electrochemical Cell System
This modular H-type electrochemical cell system is designed for electrochemical, membrane separation, microbial fuel cell, and ion exchange studies. With high configurability and multiple chamber options, it supports both two-chamber and four-chamber configurations, side quartz windows, quick-connect ports, and autoclavable materials.
Key Features
- Multiple volumes: 7ml, 14ml, 28ml, 50ml, 118ml per chamber

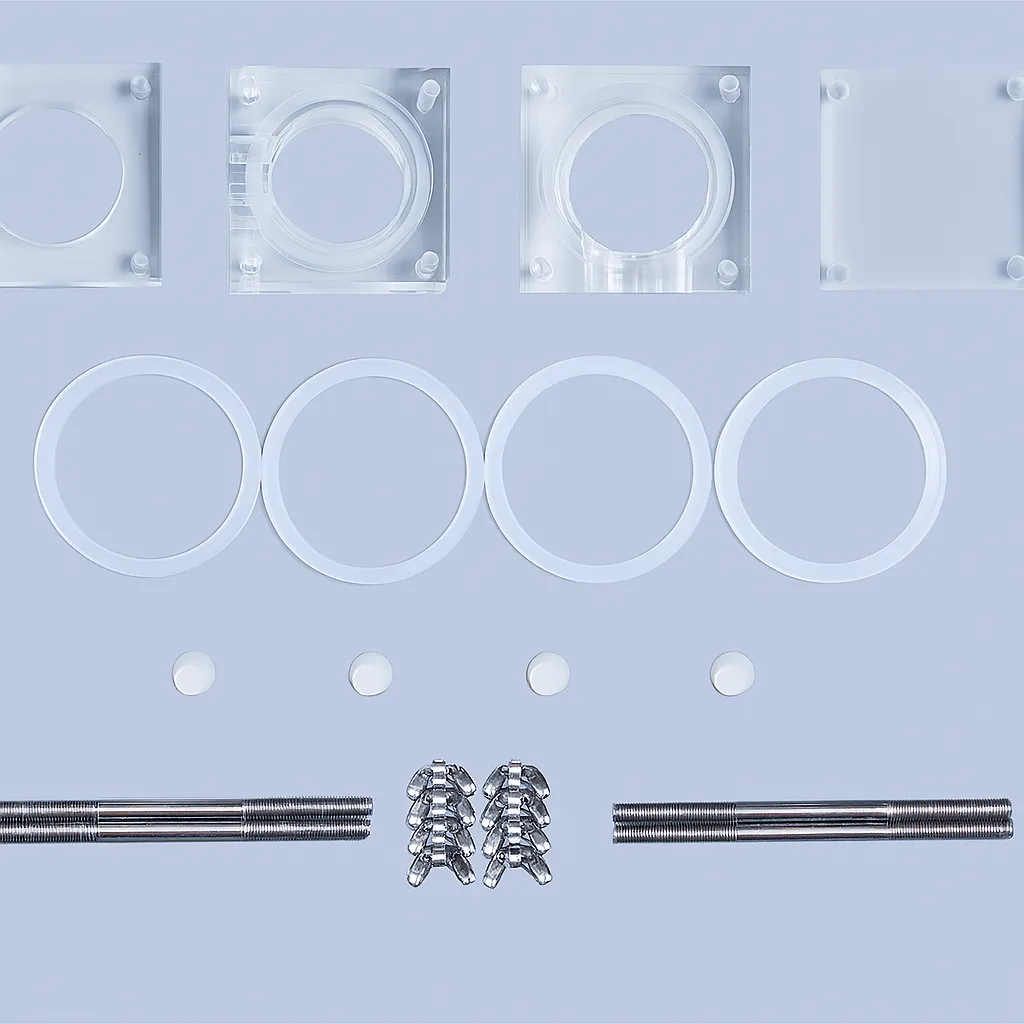

- Modular construction: detachable components for cleaning and reuse
- Optional side-view quartz windows and PC autoclave-compatible versions
- Threaded or quick-connect options for different lab setups
- Customizable volume, port location, observation window, and more
- Highly compatible with standard accessories (O-rings, plates, electrodes, tubing ports, etc.)
Standard Models
- Two-chamber 14ml (7ml × 2)
- Two-chamber 28ml (14ml × 2)
- Two-chamber 56ml (28ml × 2)
- Two-chamber 100ml (50ml × 2)
- Two-chamber 236ml (118ml × 2)
- Two-chamber 100ml with side quartz window
- Two-chamber 236ml with side quartz window
- Four-chamber 56ml quick-connect
- Two-chamber 100ml quick-connect
- Two-chamber 236ml quick-connect
- Two-chamber 100ml quick-connect with quartz window
- Two-chamber 236ml quick-connect with quartz window
- Two-chamber 56ml PC sterilizable version
- Two-chamber 100ml PC sterilizable version
- Two-chamber 56ml PC quick-connect with side ports
Available Accessories

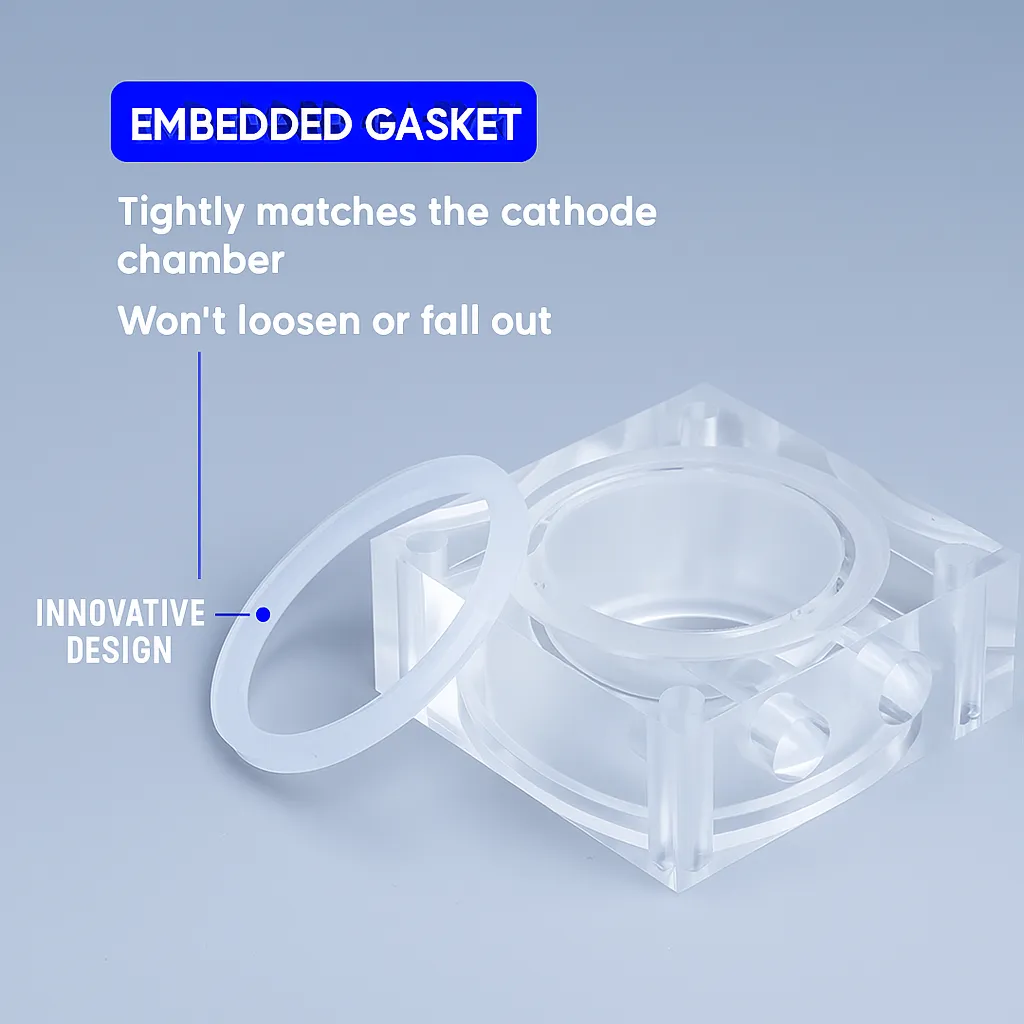

- O-rings: 7ml, 14ml, 28ml, 50ml, 118ml sizes
- Side panel options for each volume
- Quartz observation windows: 50ml, 100ml
- Connection fittings: Silver (electrode), White (tubing)
- Silicone stoppers: Ø8mm and Ø10mm (5 pcs/pack)
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
