GDE-1 Gold Disc Electrode / Polishing Materials / Suede / Chenhua Polishing Cloth / Alumina Polishing Powder
Price range: $4.00 through $1,521.00
| Size |
0.05 μm Alumina Powder ,0.3 μm Alumina Powder ,0.5 μm Alumina Powder ,1.0 μm Alumina Powder ,1200 Mesh Metallographic Sandpaper ,Core 10mm – L Type ,Core 10mm – Straight ,Core 1mm – Straight ,Core 2mm – L Type ,Core 2mm – Straight ,Core 3mm – L Type ,Core 3mm – Straight ,Core 4mm – L Type ,Core 4mm – Straight ,Core 5mm – L Type ,Core 5mm – Straight ,Core 6mm – L Type ,Core 6mm – Straight ,Core 8mm – L Type ,Core 8mm – Straight ,Polished Suede ,Polishing Base ,Polishing Flannel × 5 |
|---|

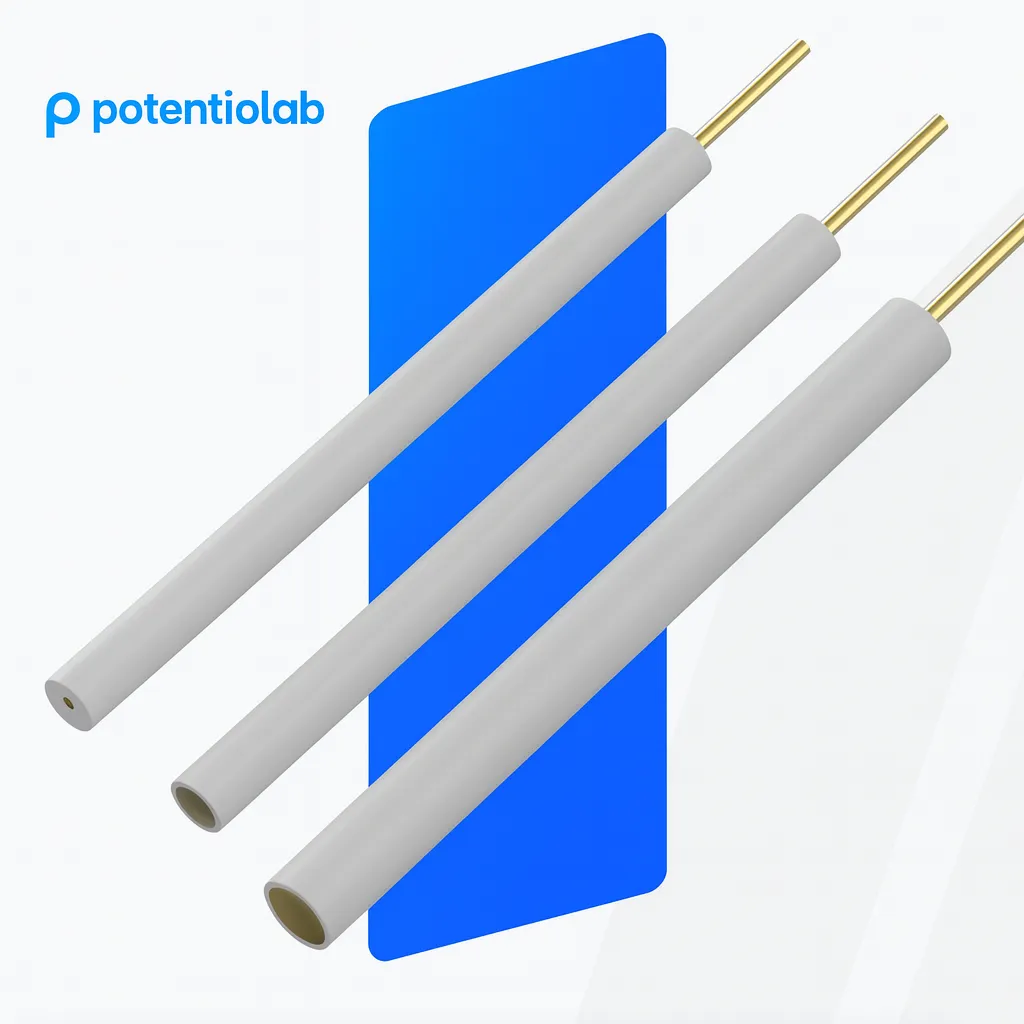

Gold Disc Electrode – PTFE Body – Customizable Sizes
Material & Application System

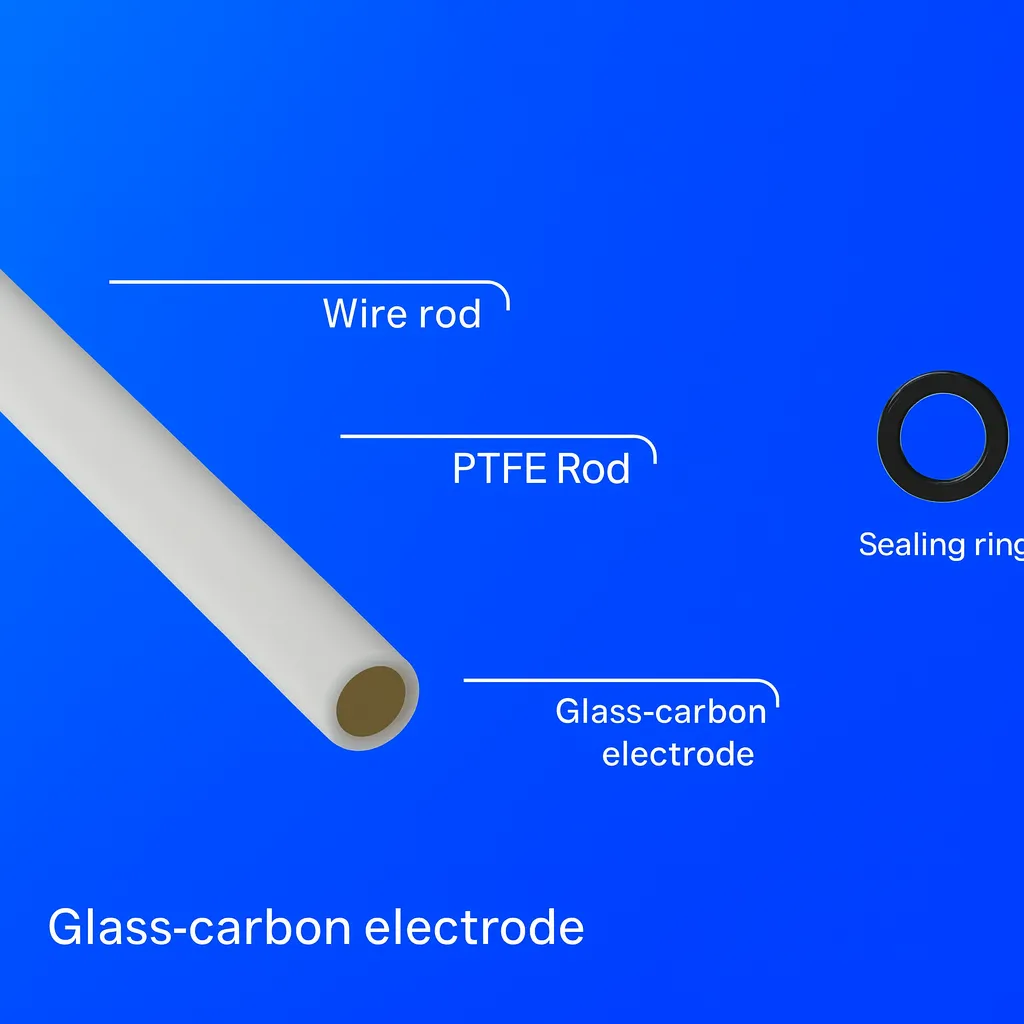

Materials: Imported Glassy-Carbon Core with Gold Plating / PTFE Holder
Experimental System: Working Electrode / Reference Electrode / Counter Electrode
- High purity, long service life
- Gold active surface with excellent electrochemical stability
- PTFE body for chemical resistance and durability
PTFE Characteristics
- Soft mechanical properties with very low surface energy
- High-temperature resistance (200–260 °C continuous use)
- Remains flexible at −100 °C
- Excellent corrosion resistance (aqua regia and all organic solvents)
- Superior weatherability – best aging resistance among plastics
- Extremely low friction coefficient (0.04)
- Non-stick surface – minimal adhesion of foreign matter
- Non-toxic, physiologically inert
- Excellent electrical insulation – ideal Class-C insulating material
| Parameter | Details |
|---|---|
| Product Name | Gold Disc Electrode |
| Body Material | PTFE Holder with Gold-Plated Glassy-Carbon Core |
| Outer Diameter Range | Ø0.5–6 mm (customizable) |
| Core Diameters | 1 / 2 / 3 / 4 / 5 / 6 mm |
| Application | Electrochemical experiments, cyclic voltammetry, analytical detection |
