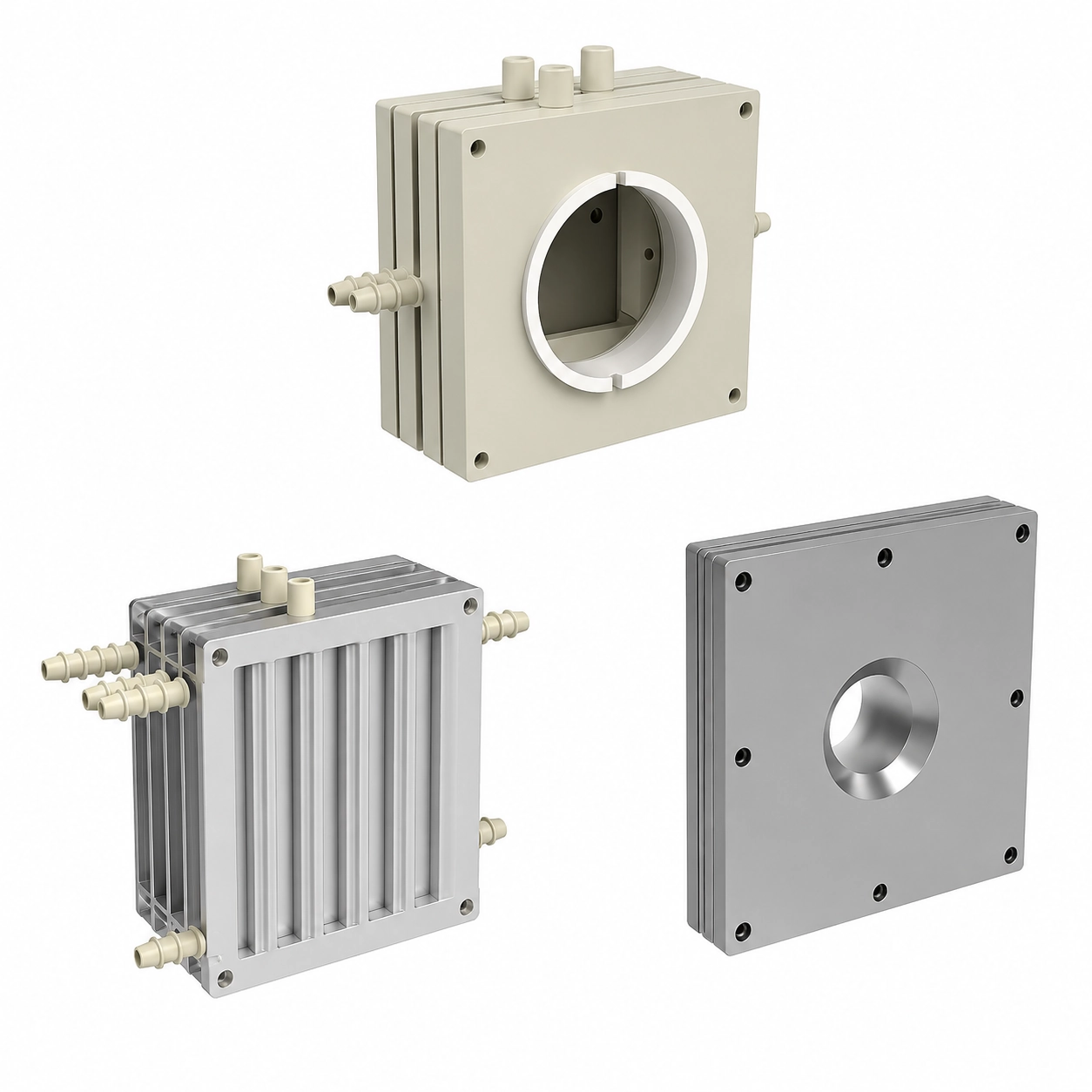

GDC-1 Electrochemical Gas Diffusion Cell
Price range: $4.00 through $42.00
| Size |

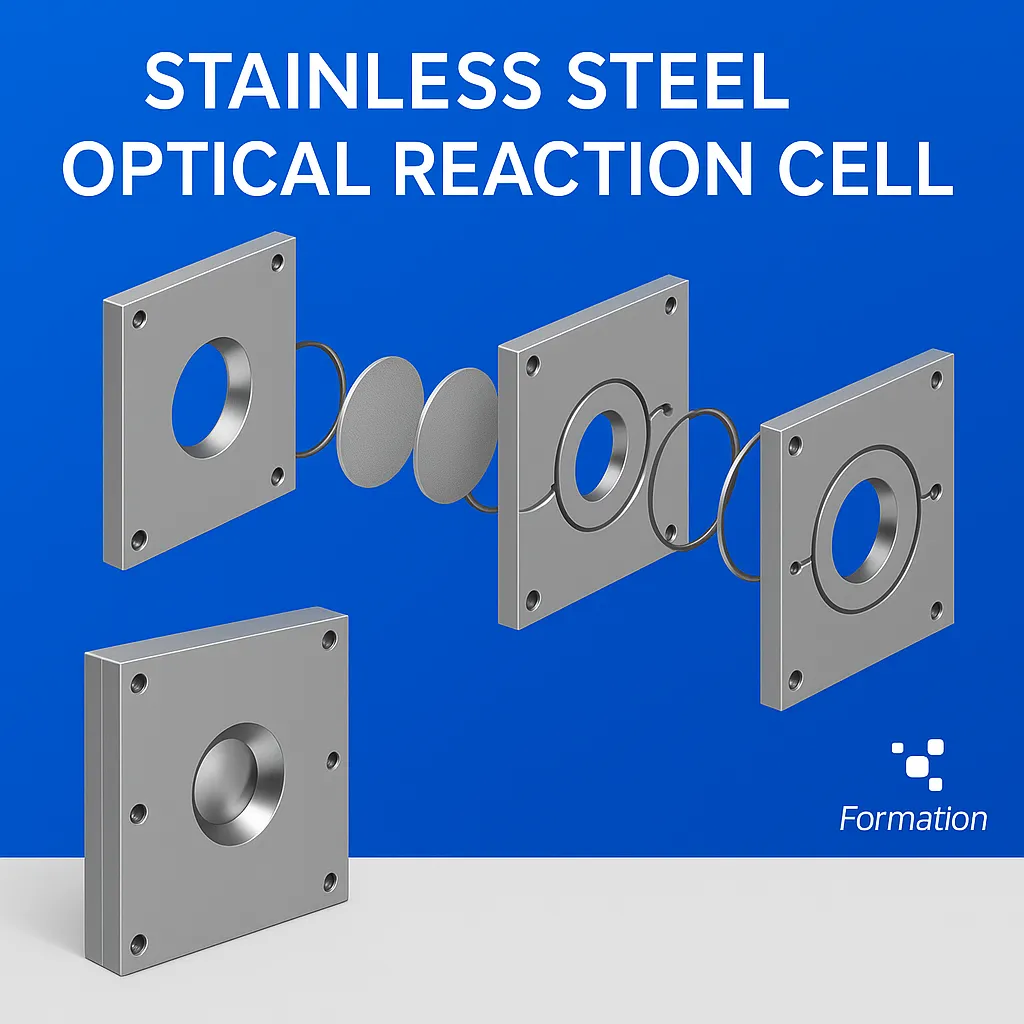

Custom Designs Accepted – Please Consult Customer Service Before Ordering ,Customization Available – Contact Customer Service to Place an Order ,Electrochemical Cell with Metal Plate + MEA + Optical Window ,Electrochemical Cell with PEEK Material and Light Window ,Electrochemical Cell with Plexiglass Body ,Electrochemical Cell with Polytetrafluoroethylene Material ,Electrochemical Cell with PTFE + Nylon + Optical Window ,Electrochemical Cell with S-Type / Parallel / Cross / Multi-Channel Flow Field ,Lead Time: 1–4 Weeks (Custom Fabrication Required) |
|---|

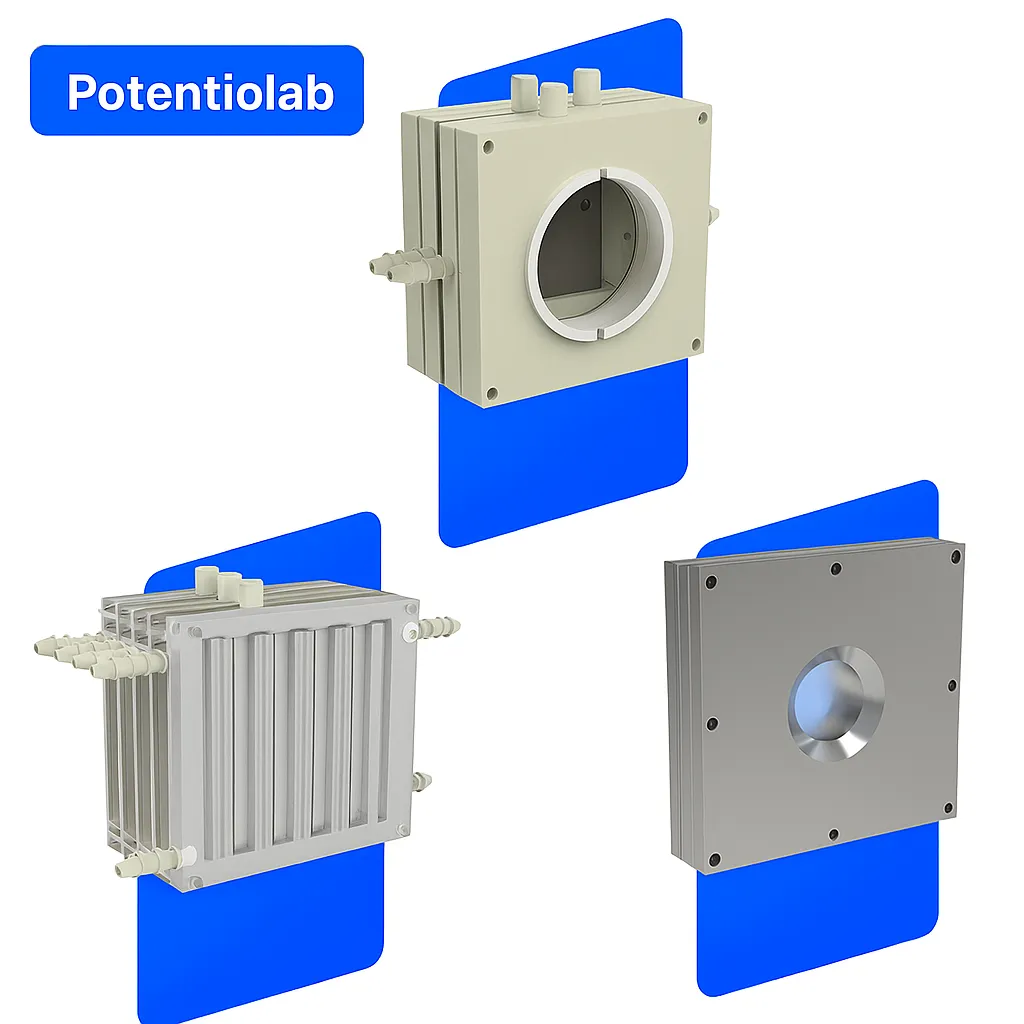

GDC-1 Electrochemical Gas Diffusion Cell

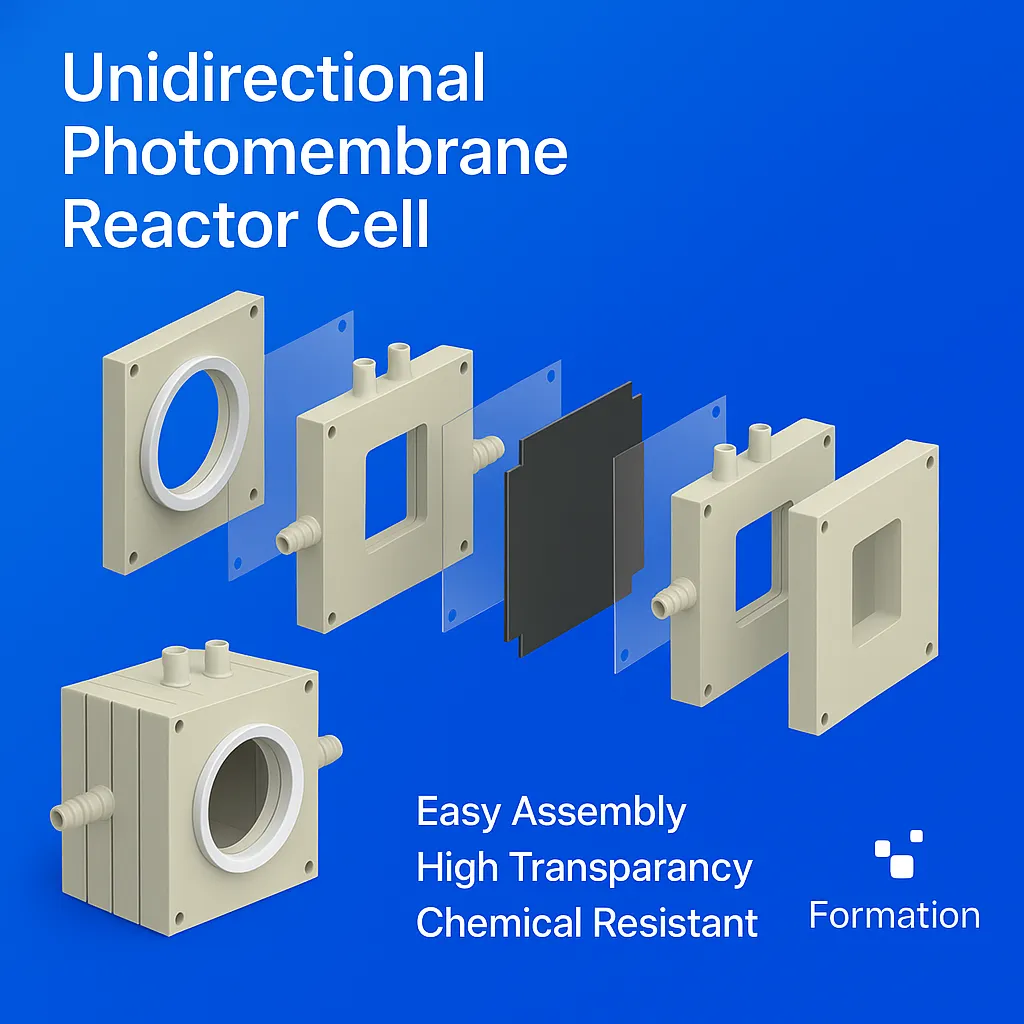

This modular gas diffusion electrochemical cell supports a wide range of flow field designs and materials, ideal for advanced electrochemical studies involving gas-liquid or solid-liquid interfaces. Fully customizable to meet specific experimental needs.
Core Specifications

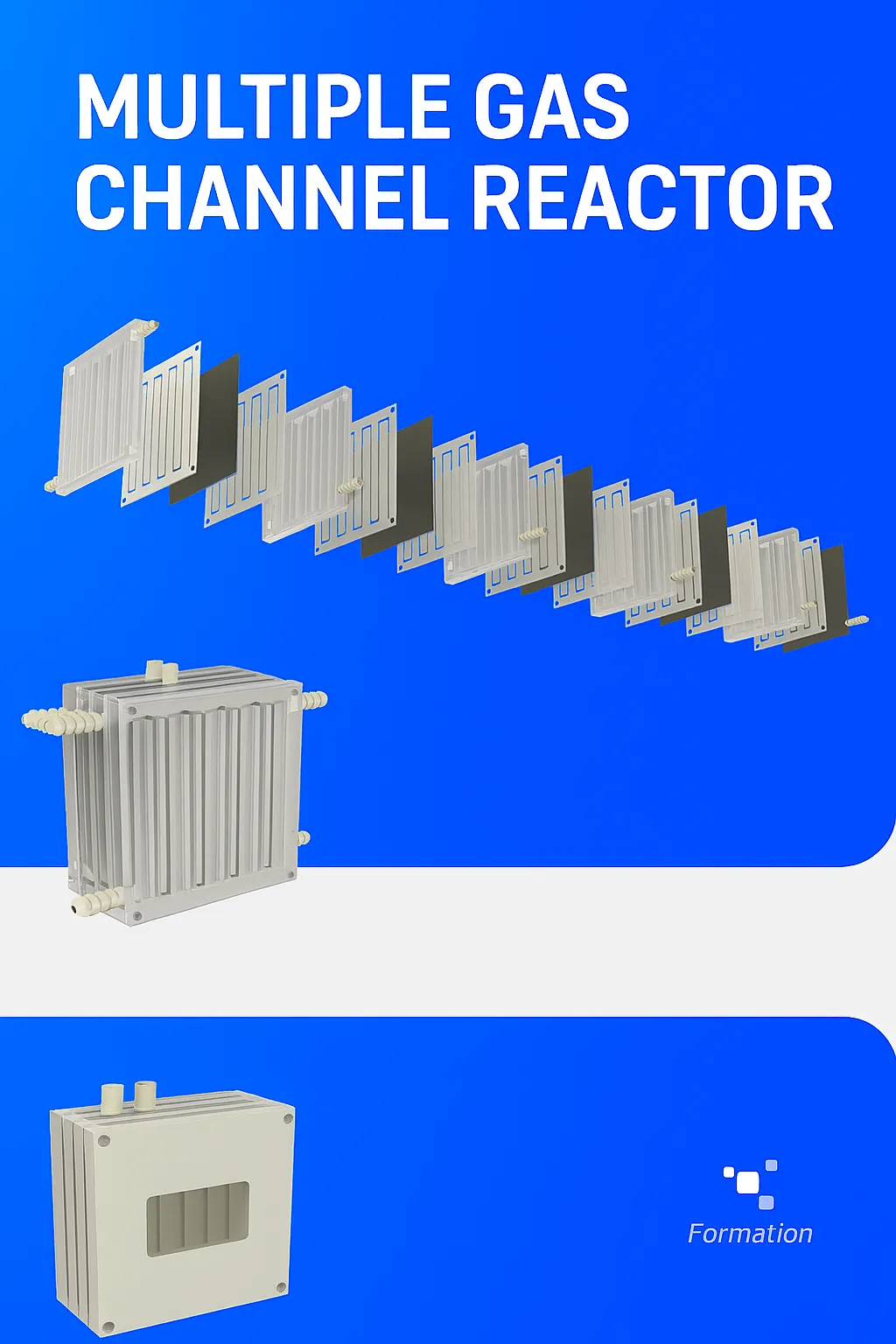

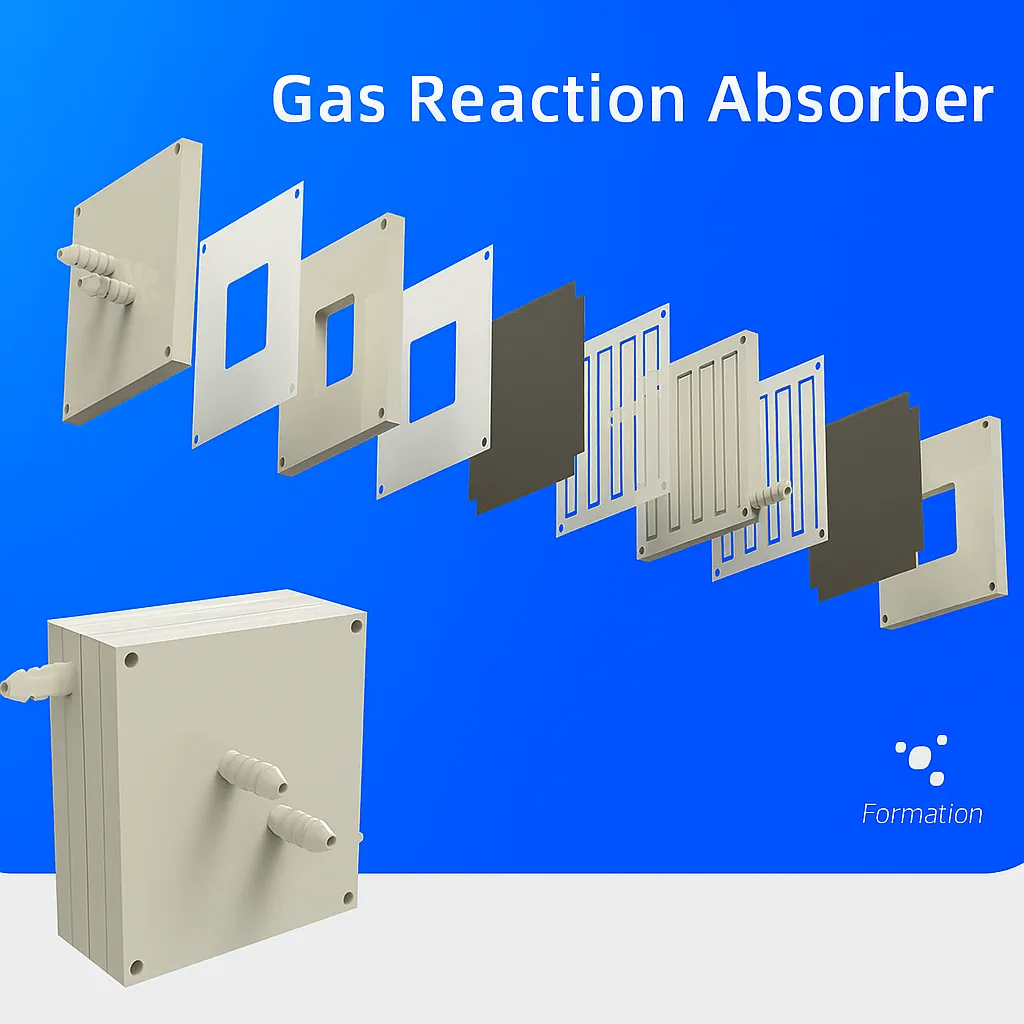

- Gas Flow Channel Types: Serpentine, racetrack, or custom patterns
- Body Materials: PTFE, PEEK, PP, acrylic, nylon (selectable by electrolyte compatibility)
- Sealing Options: Silicone gasket, fluororubber gasket, PTFE gasket
- Compatible Electrodes: Platinum wire/net/sheet, gold foil, graphite, ITO/FTO, and more
- Reference Electrodes: Ag/AgCl, salt-bridge versions optional
- Membranes: Supports ion exchange membranes, carbon paper, polymer films, etc.

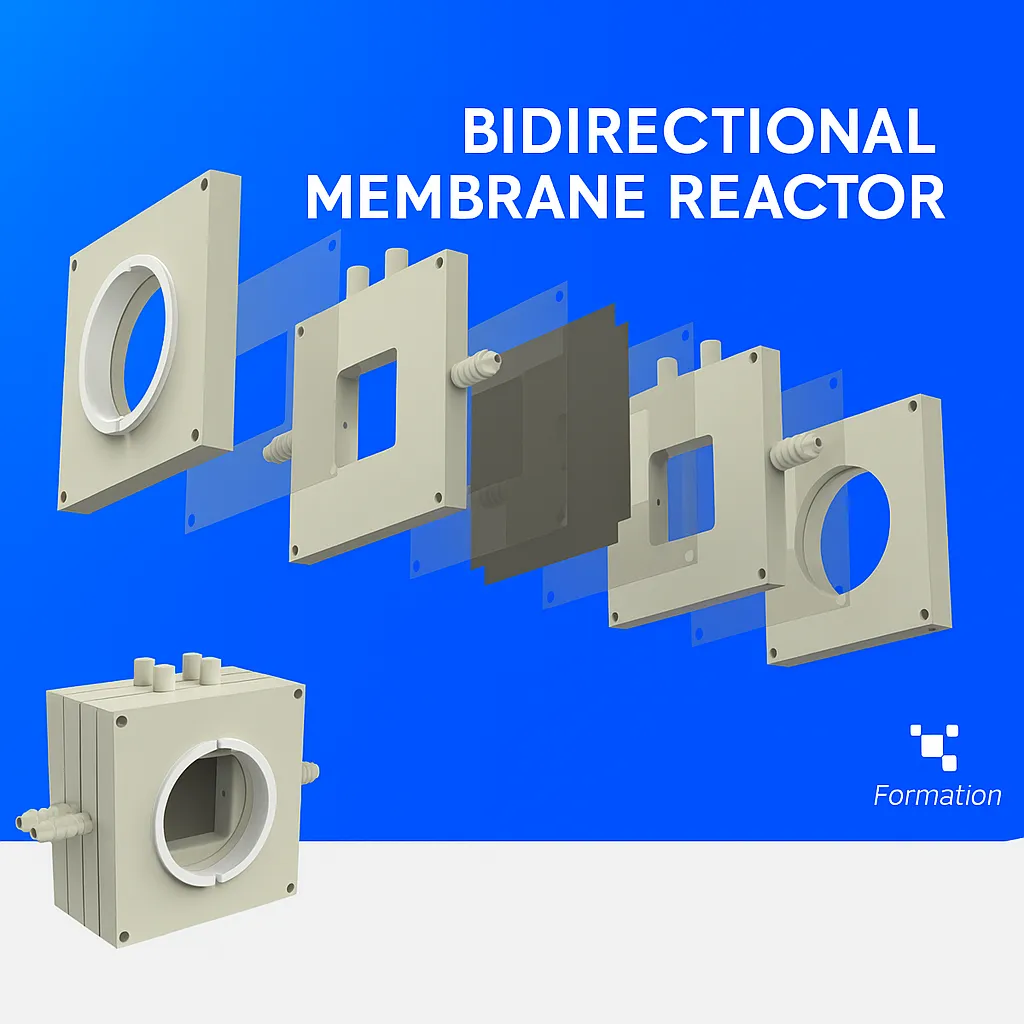

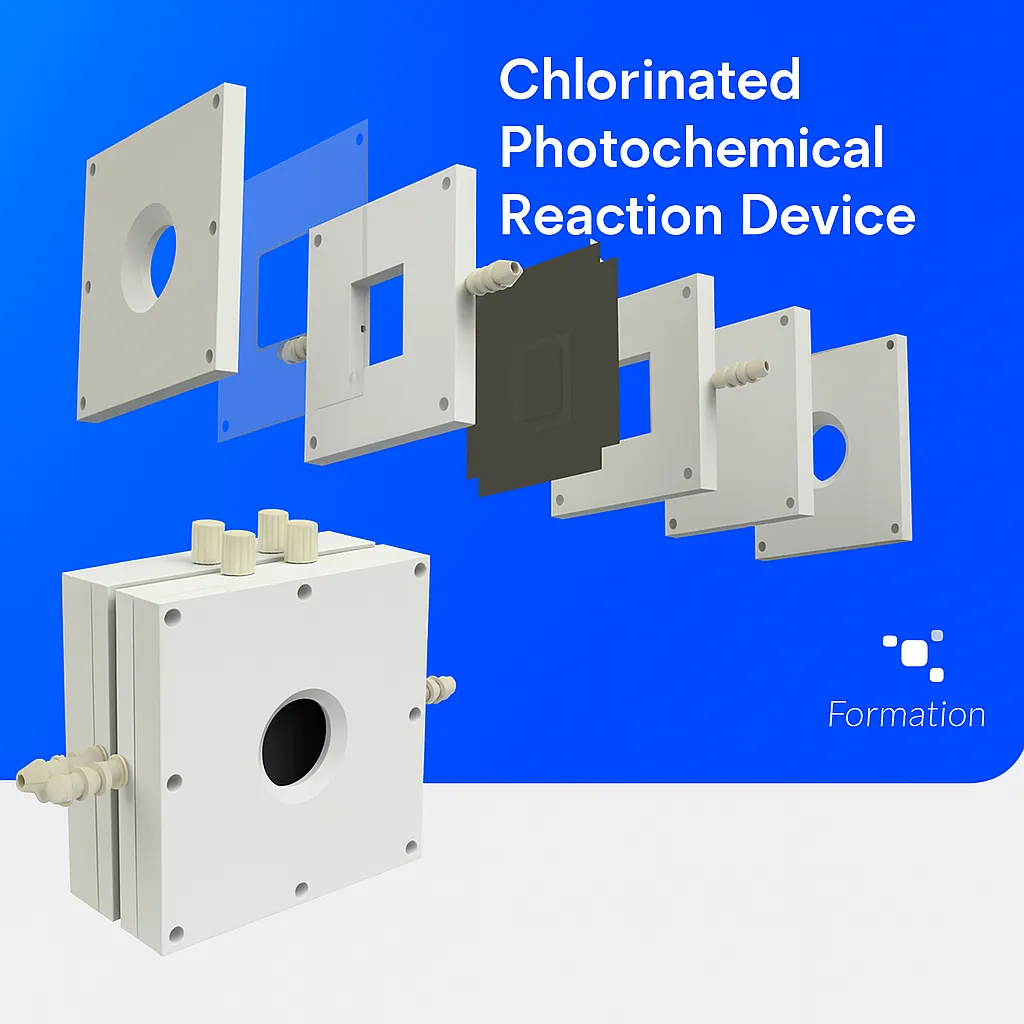

- Reaction Types: H-type, single cell, dual or multi-chamber, optical access (single/double side), gas/liquid diffusion setups
Custom Design Available: Volume, electrode configuration, membrane type, flow path, and observation windows can all be tailored. Contact us for specific requirements.
Worldwide Shipping
Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.
Rates, Support & Orders
Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.
