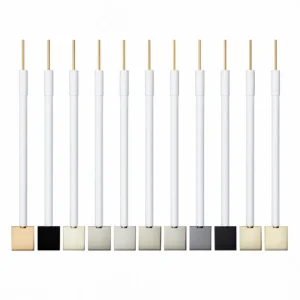

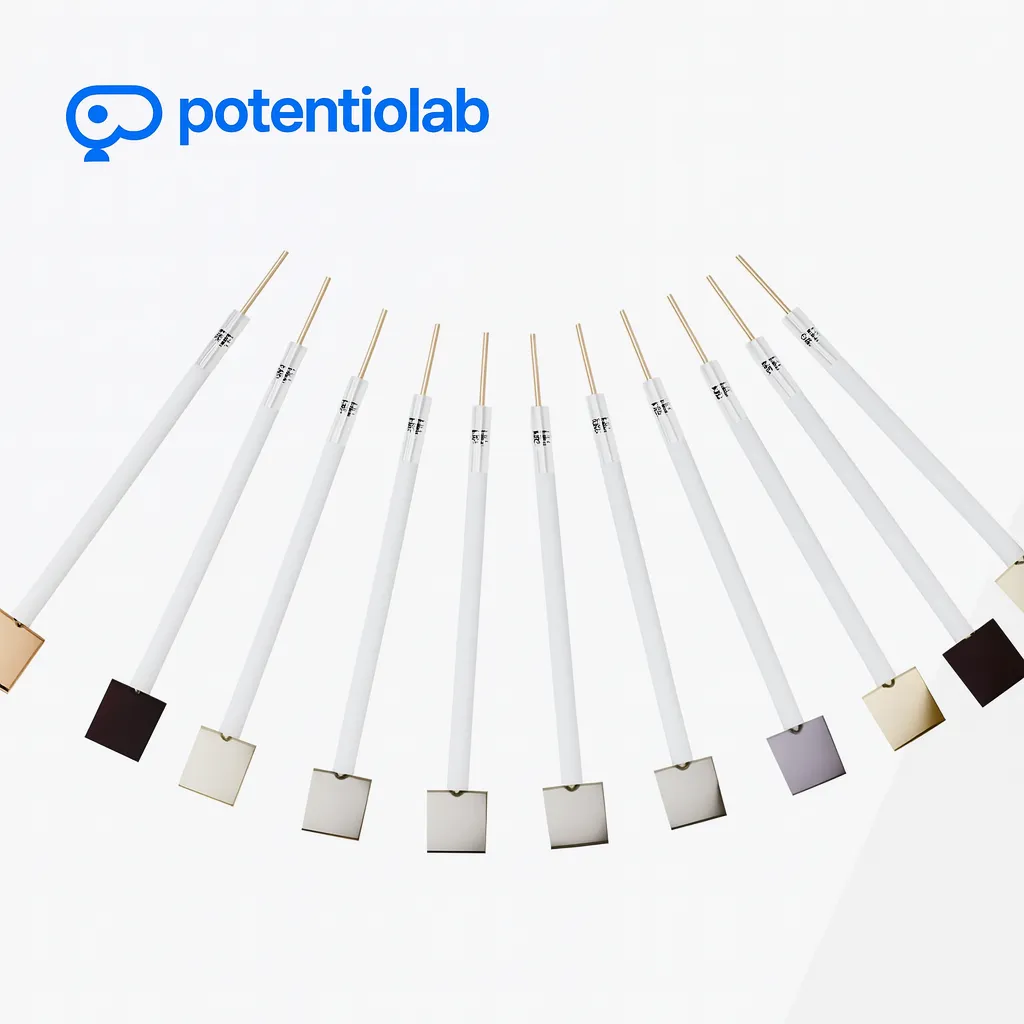

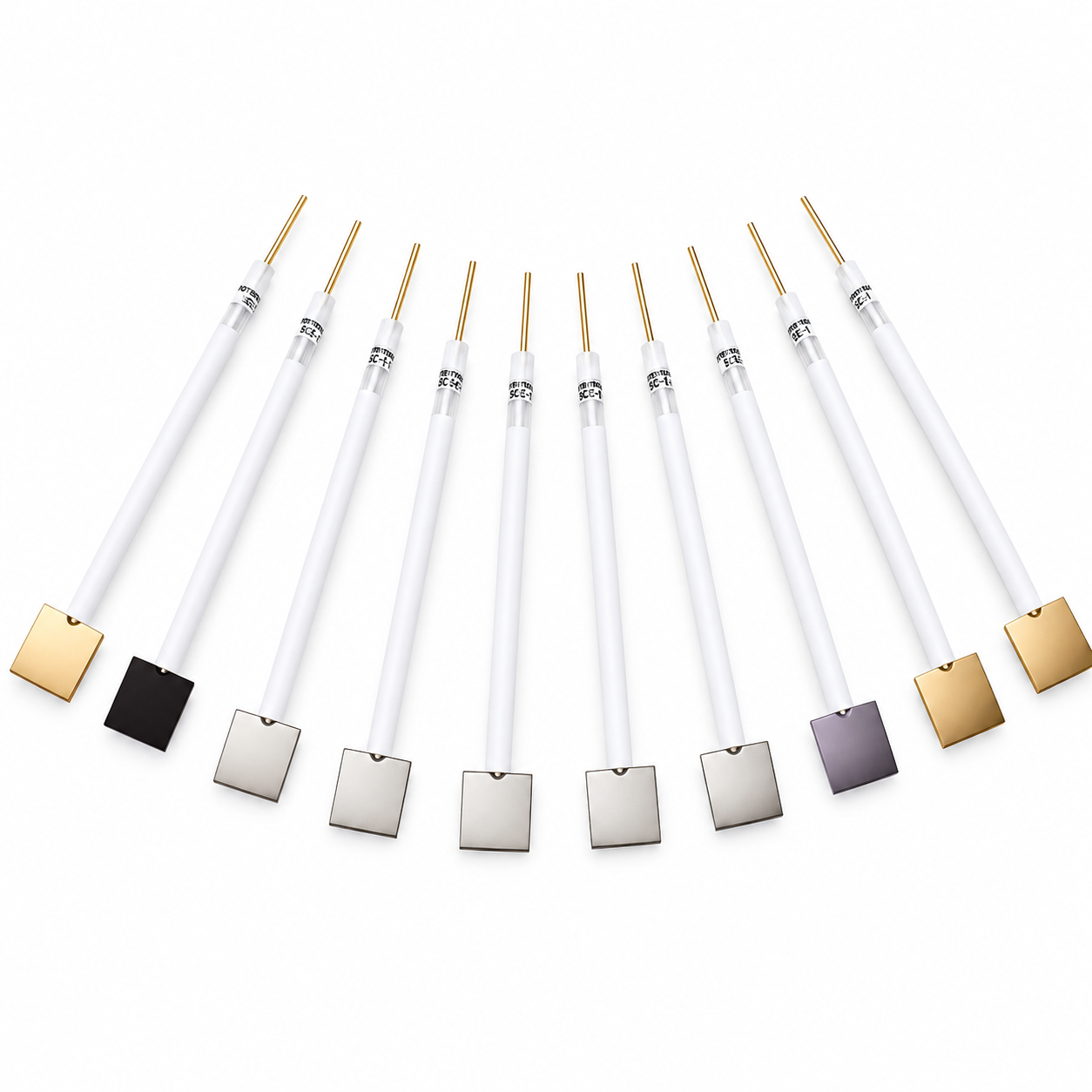

CS1 Custom Metal Sheet Electrodes – Iron, Copper, Stainless Steel, Titanium, Zinc, Nickel, Aluminum, Platinum, Gold
Price range: $4.00 through $133.00
Custom metal sheet electrode with PTFE rod insulation. Available in a range of metal and graphite materials with customizable dimensions and connection options.
| Size |
Aluminum Sheet Electrode – 10×10×0.1 mm ,Copper Sheet Electrode – 10×10×0.1 mm ,Customized – Contact Customer Service ,Gold Sheet Electrode – 10×10×0.1 mm ,Graphite Sheet Electrode – 10×10×3 mm ,Iridium-Tantalum Titanium Plate Electrode – 10×10×1 mm ,Iron Electrode – 10×10×0.1 mm ,Nickel Foam – 20×20×1 mm ,Nickel Sheet Electrode – 10×10×0.1 mm ,Platinum Sheet Electrode – 10×10×0.1 mm ,Pure Magnesium Sheet – 100×100×0.3 mm ,Pure Nickel Sheet – 20×20×0.1 mm ,Ruthenium Iridium Titanium Plate Electrode – 10×10×1 mm ,Silver Sheet Electrode – 10×10×0.1 mm ,Stainless Steel Electrode – 10×10×0.1 mm ,Tin Antimony Titanium Plate Electrode – 10×10×1 mm ,Titanium Sheet Electrode – 10×10×0.1 mm ,Tungsten Sheet Electrode – 10×10×0.1 mm ,Zinc Sheet Electrode – 10×10×0.1 mm |
|---|
Custom Metal Sheet Working Electrode with PTFE Shroud (Fully Customizable)
Ordering Notice: Due to the extensive variety of metallic substrates, foil thicknesses, and dimensions available, not all configurations can be listed simultaneously. The standard base price matches our baseline specification: 10 × 10 × 0.1 mm. For bespoke dimensions, proprietary alloys, or non-standard shaft scales, please contact our support team for a formal custom quote.
Product Overview
Engineered specifically for high-precision laboratory electrochemical cells and materials characterization setups, this Custom Metal Sheet Working Electrode features an interchangeable metallic foil substrate integrated with a chemically inert, heavy-wall PTFE insulating rod, terminated with a premium gold-plated copper binding post for low-resistance connectivity.
The baseline configuration features a 10 mm × 10 mm × 0.1 mm foil. Substrate geometry, foil thickness, elemental composition, shaft sizing, and contact mechanisms can be fully customized to eliminate cell volume constraints or bypass meniscus-induced background current errors.
Our standard portfolio covers high-purity single metals (purity ≥99.99%) including Fe, Cu, Ni, Ti, Mg, Zn, Al, Pt, Au, Ag, and Graphite, alongside multi-element commercial engineering alloys like Stainless Steel (304 / 316L).
Key Features
- Versatile Substrate Portfolio: Available in Fe, Cu, Ni, Ti, Mg, Zn, Al, Pt, Au, Ag, Graphite (≥99.99% elemental purity) and standard corrosion-resistant stainless steel grades.

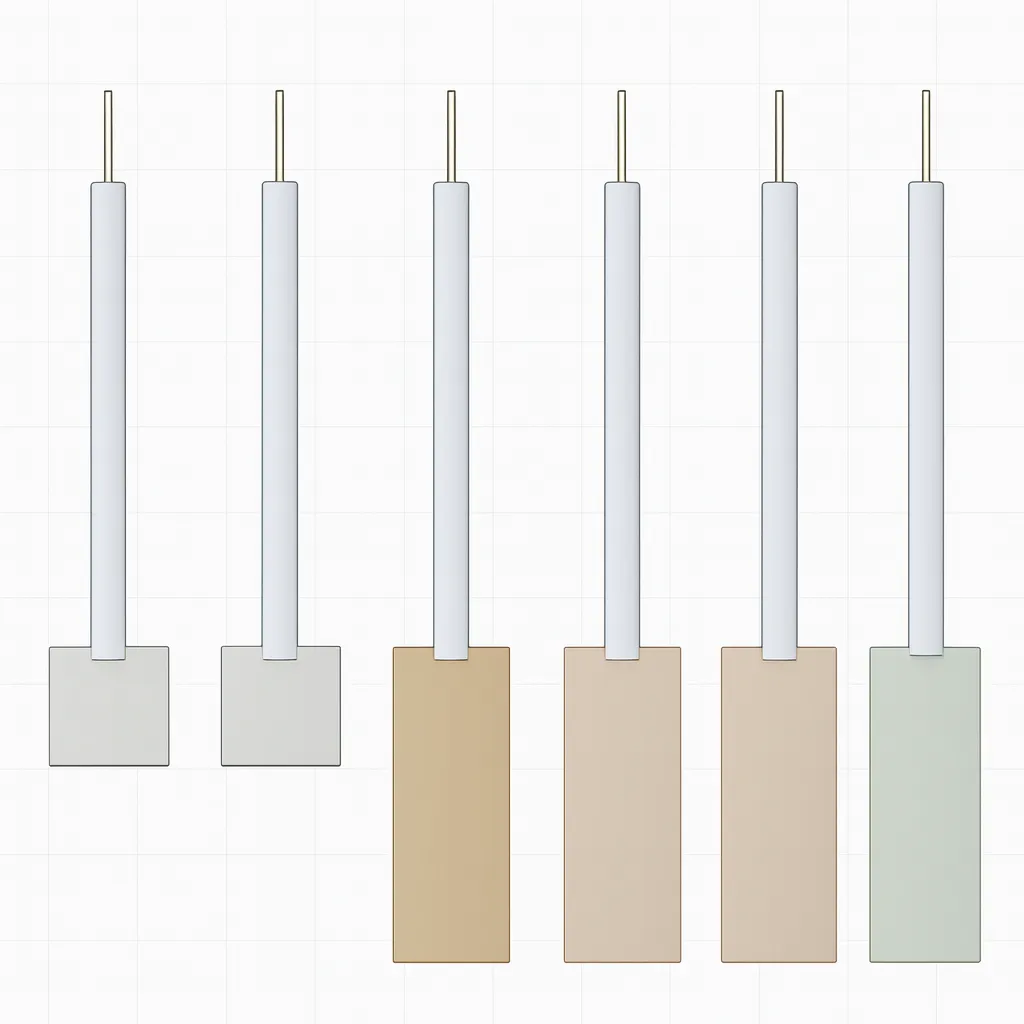

- Flexible Foil Customization: Comprehensive support for tailored foil thicknesses, non-standard active geometric surface shapes, and extended metal shunts.
- Robust Electrochemical Shielding: Precision-machined PTFE shroud (Ø6 × 80 mm) yields total cross-solvent compatibility, high dielectric insulation, and boundary leak prevention.
- Low Contact Resistance: Premium gold-plated copper terminal pin (Ø2 × 20 mm) eliminates oxidation artifacts and ensures highly reproducible, stable signal transmission.
Typical Applications
- Routine Voltammetric Analysis (Cyclic Voltammetry – CV, Linear Sweep Voltammetry – LSV)
- Electrochemical Impedance Spectroscopy (EIS) Diagnostics & Capacitance Profiling
- Chronoamperometric / Chronopotentiometric Long-Term Stability Runs
- Aqueous & Non-Aqueous Metal Corrosion Studies & Protective Coating Evaluations
- Electrocatalyst Substrate Characterization, Battery Materials R&D, and Sensor Prototyping
Technical Specifications
| Parameter | Details & Technical Specifications |
|---|---|
| Product Name | Custom Metal Sheet Working Electrode |
| Electrode Type | Working Electrode (WE) / Electroanalytical Probe |
| Substrate Options | Iron, Copper, Stainless Steel, Nickel, Titanium, Magnesium, Zinc, Aluminum, Platinum, Gold, Silver, Graphite |
| Material Purity | ≥99.99% (Applies to pure single-element metal foils) |
| Standard Sheet Size | 10 mm × 10 mm × 0.1 mm (Length × Width × Thickness) |
| Active Surface Area | Determined by electrolyte immersion depth or custom insulating masking films |
| Shroud / Rod Material | PTFE (Polytetrafluoroethylene / Teflon) |
| Standard Rod Size | Ø 6 mm × 80 mm length (Custom scaling supported) |
| Electrical Terminal | Gold-plated copper binding post |
| Terminal Dimensions | Ø 2 mm × 20 mm pin length |
| Customization Portfolio | Substrate composition, sheet surface geometry, foil thickness, PTFE shroud lengths, multi-pin lead wire interfaces |
Ordering & Procurement Information
- Bespoke Prototyping: Full support for single-unit academic laboratory R&D orders, specialized industrial testing configurations, and batch commercial OEM production scales.
- Global Logistics: Ships securely in reinforced, anti-deformation protective packaging. Expedited worldwide shipping options and institutional procurement-compliant documentation are fully supported.
