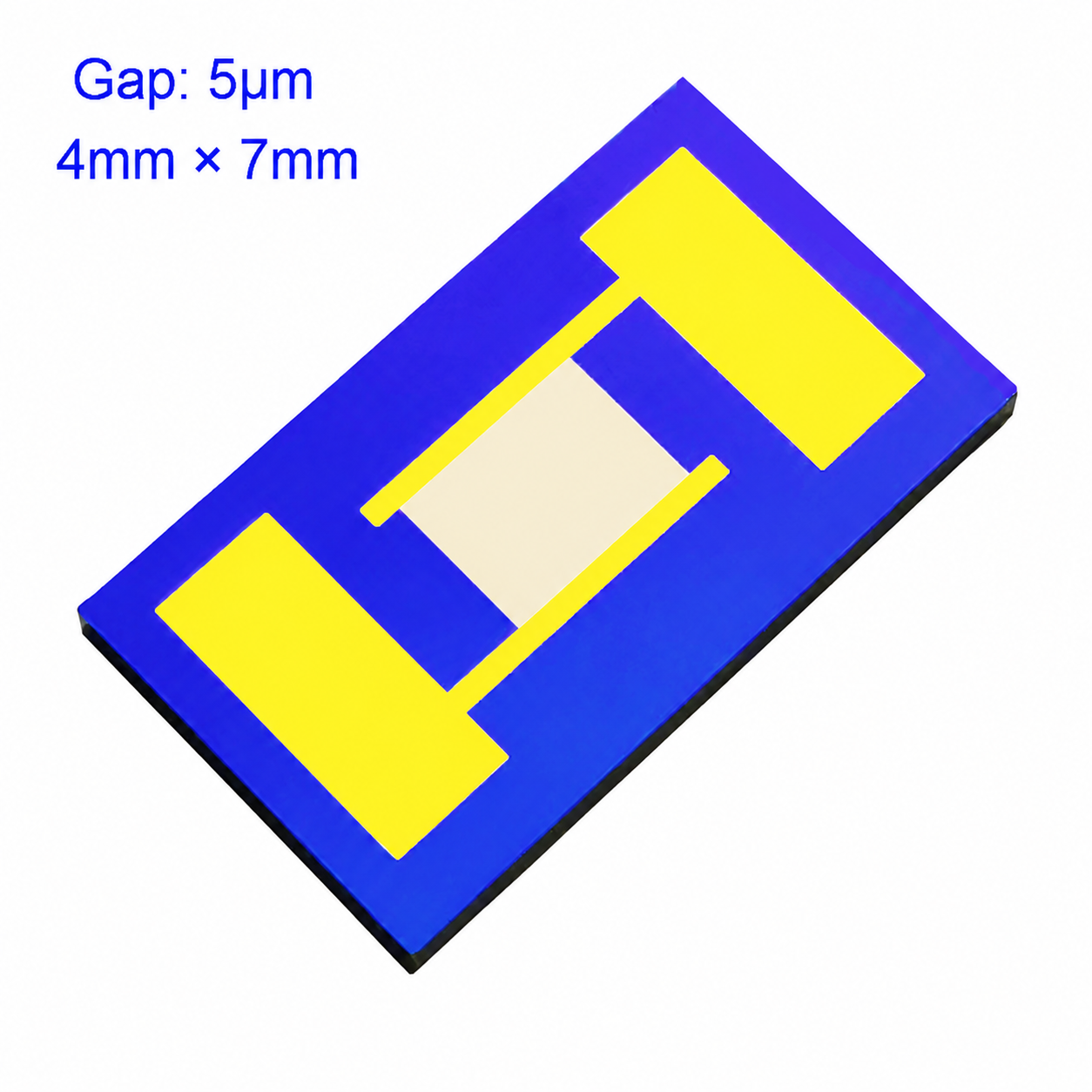

SIG1 5μm Silicon-Based Interdigitated Gold Electrode Photoelectric Detection Sensor Chip MEMS High-Precision Sensor - Image 1
360 product view
    Click to enlarge

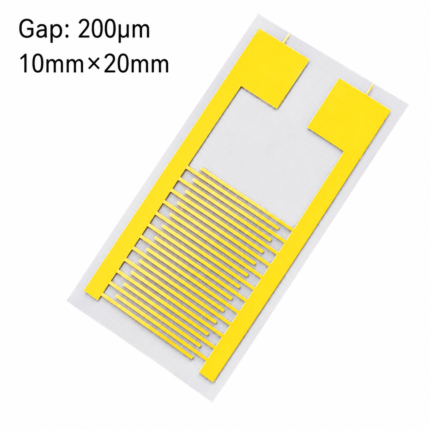

    FPL1 200??m Flexible PET Large-Size Interdigitated Electrode for Biological, Gas, and Humidity Sensor Applications with Easy Handling
    FPL1 200??m Flexible PET Large-Size Interdigitated Electrode for Biological, Gas, and Humidity Sensor Applications with Easy Handling $27.00
    Back to products

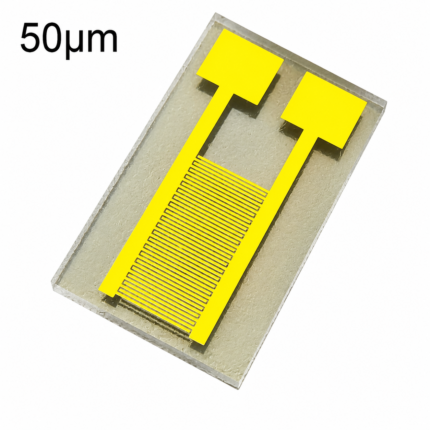

    IEQ1 50μm Transparent Interdigitated Electrode Quartz Glass Capacitive Array MEMS Gas and Biosensor for Photoelectric Detection
    IEQ1 50μm Transparent Interdigitated Electrode Quartz Glass Capacitive Array MEMS Gas and Biosensor for Photoelectric Detection $33.00

    SIG1 5μm Silicon-Based Interdigitated Gold Electrode Photoelectric Detection Sensor Chip MEMS High-Precision Sensor

    $33.00

    Size

    Default

    Add to wishlist
    SKU: SIG1 Category:
    Description
    Potentiolab • Silicon-Based Gold IDE Sensor

    5μm Silicon-Based Interdigitated Gold Electrode MEMS Sensor Chip

    High-precision 5μm silicon-based interdigitated gold electrode designed for MEMS photoelectric detection, chemical, physical, biological, and medical sensor chip applications.

    5μm IDE PatternMEMS Sensor Chip

    Ti/Au Gold Electrode

    5 micron silicon based interdigitated gold electrode MEMS photoelectric detection sensor chip

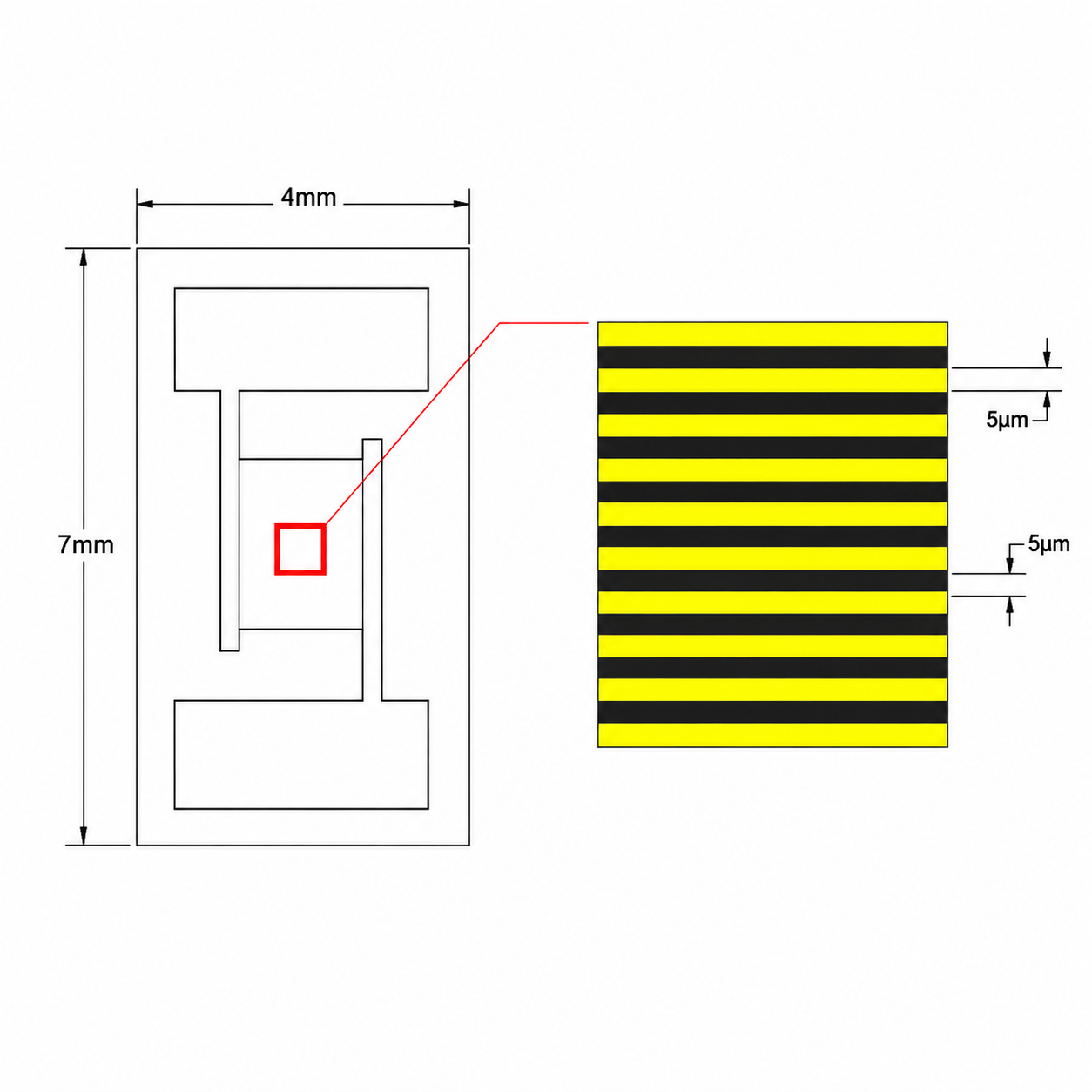

    high precision silicon based interdigitated gold electrode chip for photoelectric sensing detection
    High-Precision IDE Structure
    • Line width: 5μm
    • Line spacing: 5μm
    • Finger length: 1.5mm
    • 100 pairs / 200 fingers
    Silicon-Based MEMS Structure
    • Single-crystal silicon substrate (P-type)
    • Surface-grown SiO₂ insulating layer
    • SiO₂ thickness: 300nm
    • Suitable for MEMS sensor integration
    Ti/Au Gold Electrode Layer
    • Metal layer structure: Ti/Au
    • Ti thickness: 30nm
    • Au thickness: 100nm
    • Excellent conductivity and stability
    Wide Operating Temperature
    • Operating temperature: -150°C to 500°C
    • Excellent thermal stability
    • Reliable sensing performance
    • Suitable for harsh laboratory environments
    Typical Applications
    • Photoelectric detection systems
    • MEMS high-precision sensors
    • Chemical and physical sensors
    • Biological sensing systems
    • Medical sensor research
    ItemSpecification
    Product Name5μm Silicon-Based Interdigitated Gold Electrode MEMS Sensor Chip
    SubstrateSingle-crystal silicon (P-type)
    Insulating LayerSurface-grown SiO₂, 300nm
    Overall Size4mm × 7mm × 0.52mm
    Line Width5μm
    Line Spacing5μm
    Finger Length1.5mm
    Interdigitated Pairs100 pairs / 200 fingers
    Metal Layer StructureTi/Au
    Metal Layer ThicknessTi 30nm / Au 100nm
    Operating Temperature-150°C to 500°C
    Product Advantages
    This high-precision silicon-based interdigitated gold electrode features a 5μm IDE structure, SiO₂-insulated single-crystal silicon substrate, and Ti/Au conductive layer system. It is suitable for MEMS photoelectric detection, chemical, physical, biological, and medical sensing applications requiring reliable performance and stable quality.
    Precautions
    • Handle carefully to avoid scratching the electrode surface.
    • Avoid mechanical impact or excessive force on the silicon substrate.
    • Clean gently with suitable laboratory-grade solvents before use.
    • Store in a clean, dry, and dust-free environment.
    • Custom electrode dimensions and patterns are available upon request.
    Reviews (0)

    Reviews

    There are no reviews yet.

    Be the first to review “SIG1 5μm Silicon-Based Interdigitated Gold Electrode Photoelectric Detection Sensor Chip MEMS High-Precision Sensor”

    Your email address will not be published. Required fields are marked *

    Shipping and Delivery

    Worldwide Shipping

    Potentiolab ships electrochemical electrodes, electrochemical cells, and laboratory accessories to universities, research institutes, and laboratories worldwide. Orders are shipped primarily via FedEx International Priority (occasionally DHL or UPS) with full tracking. In-stock items are typically dispatched within one business day. Estimated delivery times are 4–6 working days for Asia, 5–7 working days for Europe and North America, and 7–9 working days for other regions. Customs clearance times may vary by country.

    Rates, Support & Orders

    Shipping fees start from USD 28, with free shipping available on qualifying orders over USD 1800. Prices exclude VAT, customs duties, or local taxes, which are the responsibility of the recipient. For bulk orders, custom electrochemical products, academic discounts, or institutional purchasing requirements, please contact our sales team at sales@potentiolab.com.

    Related products

    CIE1 50μm Ceramic Interdigitated Electrode (IDE) Capacitive Array Chip for Biosensing, Gas and Humidity Sensor Applications

    Price range: $17.00 through $29.00
    Potentiolab • Ceramic Interdigitated Electrode IDE 50 μm Ceramic Interdigitated Electrode IDE Capacitive Array Chip for Biosensing High-performance ceramic interdigitated
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view

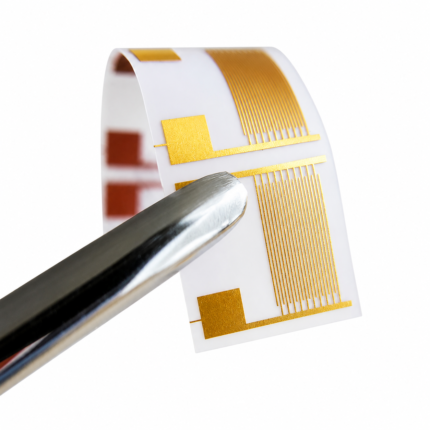

    FPI1 100 μm Flexible PET Interdigitated Electrode Capacitive Array Gas/Bio/Humidity Sensor Chip

    $15.00
    Potentiolab • Flexible Interdigitated Electrode Sensor Chip 100 μm Flexible PET Interdigitated Electrode Capacitive Sensor Chip A 100 μm flexible
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view

    LAF1 100 μm Large-Area Flexible Interdigitated PET Capacitive Array Sensor Chip with Gold Electrodes

    $27.00
    Potentiolab • Large-Area Flexible Sensor Chip 100 μm Large-Area Flexible PET Interdigitated Capacitive Array Sensor Chip An easy-to-handle large-area flexible
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view

    LSC1 100 μm Large-Size Ceramic Interdigitated Electrode Capacitive Array Sensor Chip for Gas, Humidity and Biosensing (10 × 20 mm)

    Potentiolab • Ceramic Interdigitated Electrode 100 μm Large-Size Ceramic Interdigitated Electrode Capacitive Array Sensor Chip for Gas, Humidity & Biosensors
    Add to wishlist
    Read more
    Quick view

    PTR1 20 cm PTFE Teflon Ruler – Acid & Alkali Resistant High Temperature Measuring Ruler

    Potentiolab • PTFE Teflon Measuring Ruler 20 cm PTFE Teflon Ruler – Acid & Alkali Resistant High-Temperature Measuring Ruler High-performance
    Add to wishlist
    Read more
    Quick view

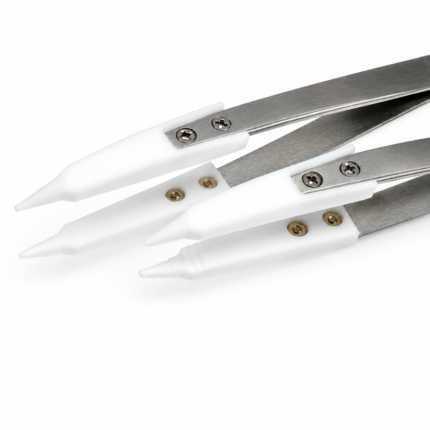

    PTT1 PTFE Teflon Tweezers – Acid Resistant, High Temperature Wafer Tweezers with PTFE Tips

    Price range: $49.00 through $54.00
    Potentiolab • PTFE / Teflon Tweezers PTFE Teflon Tweezers – Acid Resistant High-Temperature Wafer Tweezers with PTFE Tips High-performance pure
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view

    PWJ1 PTFE Wide-Jaw Wafer Tweezers for Semiconductor Wafers, Glass Substrates and Chip Handling

    $82.00
    Potentiolab • PTFE Wafer Tweezers Anti-Static PTFE Wide-Jaw Wafer Tweezers for Semiconductor and Glass Substrate Handling High-quality anti-static PTFE wafer
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page
    Quick view

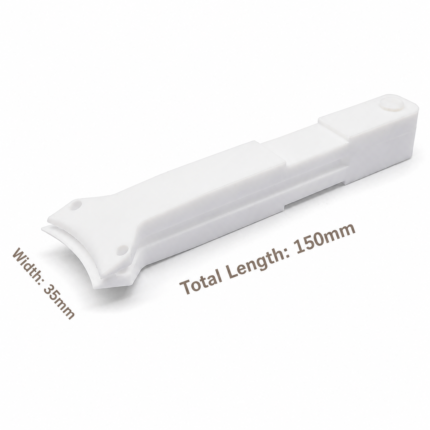

    PWT1 PTFE Wide-Tip Laboratory Tweezers for Wafer Handling, Glass Slides and Semiconductor Applications
