    SBE1 30 μm Silicon-Based Interdigitated Electrode Capacitive Array with High Precision and High Stability for MEMS Gas and Biosensing Applications

    $29.00

    Size

    Default

    Add to wishlist
    SKU: SBE1 Category:
    Description
    Potentiolab • Silicon-Based Interdigitated Electrode

    30μm Silicon-Based Interdigitated Electrode Capacitive Array

    High-precision 30μm silicon-based interdigitated electrode fabricated using MEMS technology for photoelectric detection, gas-sensitive, humidity-sensitive, biological, chemical, physical, and medical sensor applications.

    30μm IDE PatternMEMS Fabrication

    Cr/Au Electrode

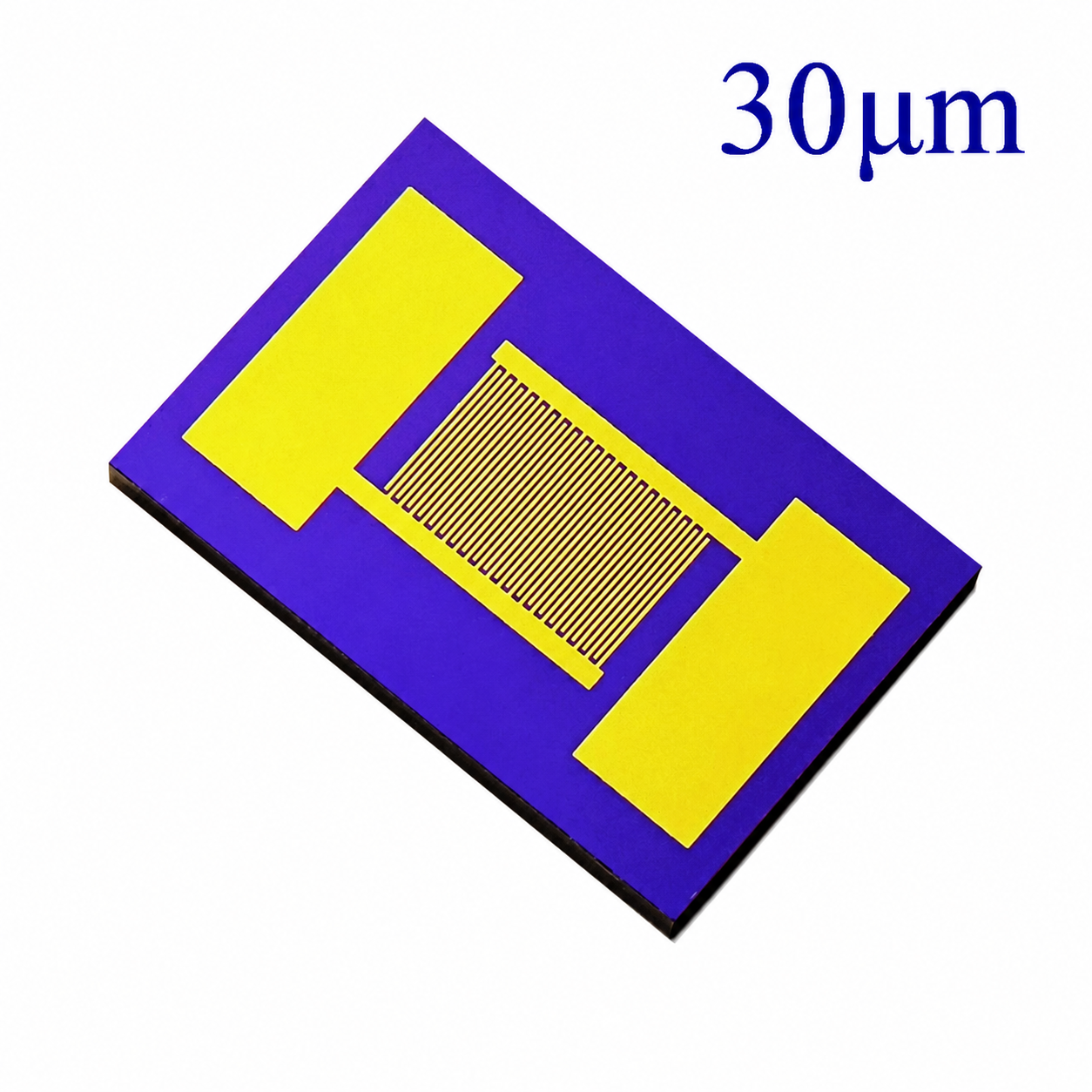

    30 micron silicon based interdigitated electrode capacitive array for MEMS gas humidity biosensors

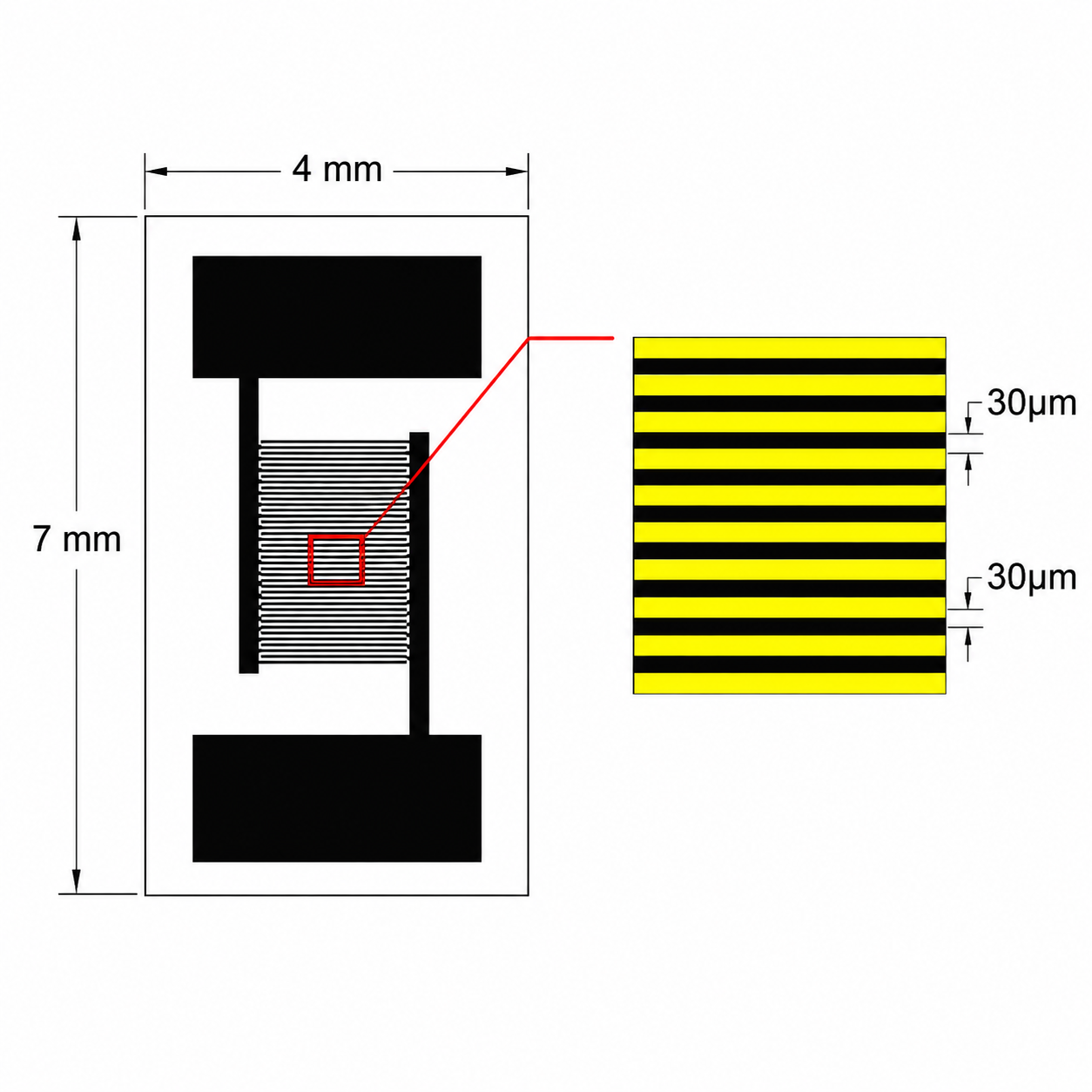

    silicon based MEMS interdigitated electrode for photoelectric gas humidity biological sensing
    MEMS Silicon-Based Structure
    • Single-crystal silicon substrate
    • Surface-grown SiO₂ insulating layer
    • SiO₂ thickness: 300nm
    • Suitable for MEMS sensor fabrication
    30μm Interdigitated Pattern
    • Line width: 30μm
    • Line spacing: 30μm
    • Finger length: 1.5mm
    • 20 pairs / 40 fingers
    Cr/Au Metal Layer
    • Metal layer structure: Cr/Au
    • Cr thickness: 10nm
    • Au thickness: 100nm
    • Stable conductive performance
    Wide Operating Temperature
    • Operating temperature: -150°C to 500°C
    • Excellent thermal stability
    • Reliable sensing performance
    • Suitable for harsh laboratory environments
    Typical Applications
    • Photoelectric detection systems
    • Gas-sensitive MEMS sensors
    • Humidity-sensitive sensors
    • Biological and electrochemical sensing
    • Chemical, physical, and medical sensor research
    ItemSpecification
    Product Name30μm Silicon-Based Interdigitated Electrode Capacitive Array
    SubstrateSingle-crystal silicon
    Insulating LayerSurface-grown SiO₂, 300nm
    Overall Size4mm × 7mm × 0.52mm
    Line Width30μm
    Line Spacing30μm
    Finger Length1.5mm
    Interdigitated Pairs20 pairs / 40 fingers
    Metal Layer StructureCr/Au
    Metal Layer ThicknessCr 10nm / Au 100nm
    Operating Temperature-150°C to 500°C
    Product Advantages
    This silicon-based MEMS interdigitated electrode features a high-precision 30μm IDE structure, SiO₂-insulated single-crystal silicon substrate, and Cr/Au conductive layer system. It is suitable for photoelectric detection, gas-sensitive, humidity-sensitive, biological, electrochemical, chemical, physical, and medical sensing applications requiring reliable performance and stable quality.
    Precautions
    • Handle carefully to avoid scratching the electrode surface.
    • Avoid mechanical impact or excessive force on the silicon substrate.
    • Clean gently with suitable laboratory-grade solvents before use.
    • Store in a clean, dry, and dust-free environment.
    • Custom electrode dimensions and patterns are available upon request.
