    MSI1 Micro-Capacitive Single-Channel Interdigitated Electrode for MEMS Optical, Gas, Biosensor and Photoelectric Detection Applications

    Price range: $23.00 through $27.00

    Size

    5 µm Gap

    ,

    10 µm Gap – Type A

    ,

    10 µm Gap – Type B

    ,

    20 µm Gap

    Add to wishlist
    SKU: MSI1 Category:
    Description

    Potentiolab • MEMS Interdigitated Electrode

    Micro Capacitive Single-Channel Interdigitated Electrode for MEMS, Optical & Sensor Applications

    High-precision MEMS micro capacitive interdigitated electrodes
    designed for optical sensing, MEMS devices, chemical sensors,
    physical sensors, biosensors, medical sensors, and electrochemical research    .
    Multiple electrode gap versions are available, including 5 μm, 10 μm, and 20 μm,
    providing stable sensing performance and excellent microfabrication accuracy.


    MEMS Sensor


    Cr / Au IDE


    5 μm / 10 μm / 20 μm

    Gap 5 μm MEMS interdigitated electrode
    Gap 5 μm IDE detail
    Gap 10 μm-A MEMS IDE
    Gap 10 μm-A IDE detail
    Gap 10 μm-B MEMS IDE
    Gap 10 μm-B IDE detail

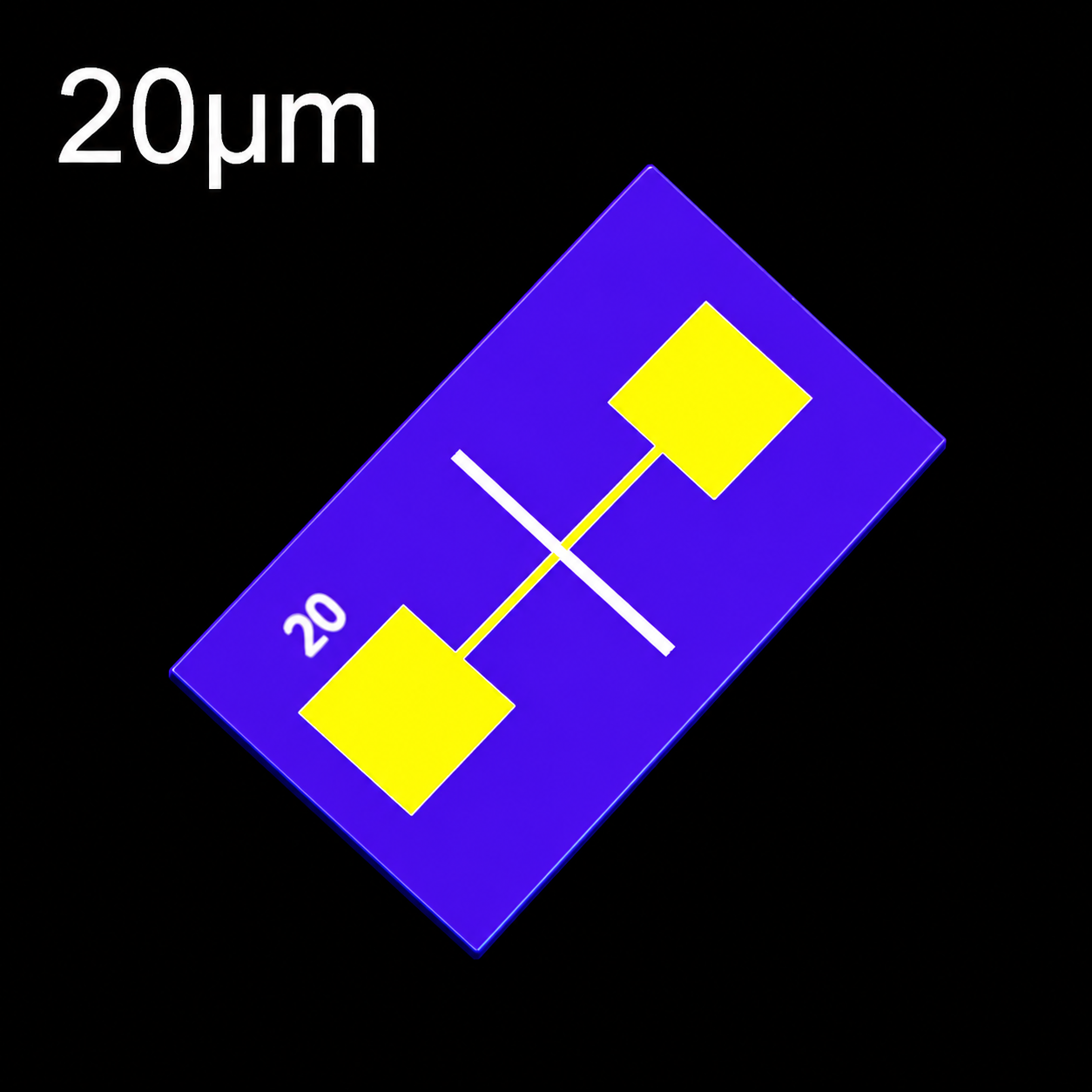

    Gap 20 μm MEMS IDE
    Gap 20 μm IDE detail

    Available Models
    • Model 1: Gap-5 μm
    • Model 2: Gap-10 μm-A
    • Model 3: Gap-10 μm-B
    • Model 4: Gap-20 μm
    Silicon-Based Structure
    • Single crystal silicon substrate (P-type)
    • Thermally grown SiO₂ insulation layer
    • SiO₂ thickness: 300 nm
    • Excellent electrical insulation stability

    Cr / Au Metal Layer
    • Metal layer: Cr / Au
    • Cr thickness: 30 nm
    • Au thickness: 100 nm
    • Reliable conductivity and stability
    High Temperature Stability
    • Operating temperature: -150°C ~ 500°C
    • Suitable for harsh environments
    • Excellent thermal stability
    • Compatible with MEMS sensor research

    Typical Applications
    • MEMS sensor development
    • Optical and capacitive sensing
    • Chemical and physical sensors
    • Medical and biosensor applications
    • Microelectronic and electrochemical research

    SpecificationAll Models
    Overall Size4 mm × 7 mm × 0.52 mm
    Electrode Gap Options5 μm / 10 μm / 20 μm
    Substrate MaterialSingle Crystal Silicon (P-type)
    SiO₂ Thickness300 nm
    Metal Layer StructureCr / Au
    Metal Thickness30 nm / 100 nm
    Operating Temperature-150°C ~ 500°C

    These MEMS micro capacitive interdigitated electrodes combine
    silicon-based microfabrication technology, ultra-fine electrode gaps,
    and stable Cr/Au conductive layers to provide reliable performance
    for optical sensing, capacitive sensing, chemical sensing, and medical sensor research.

    Note: Custom electrode spacing, chip dimensions, and metal layer structures are available upon request.
